DCA/LDP/Blind Spot Intervention

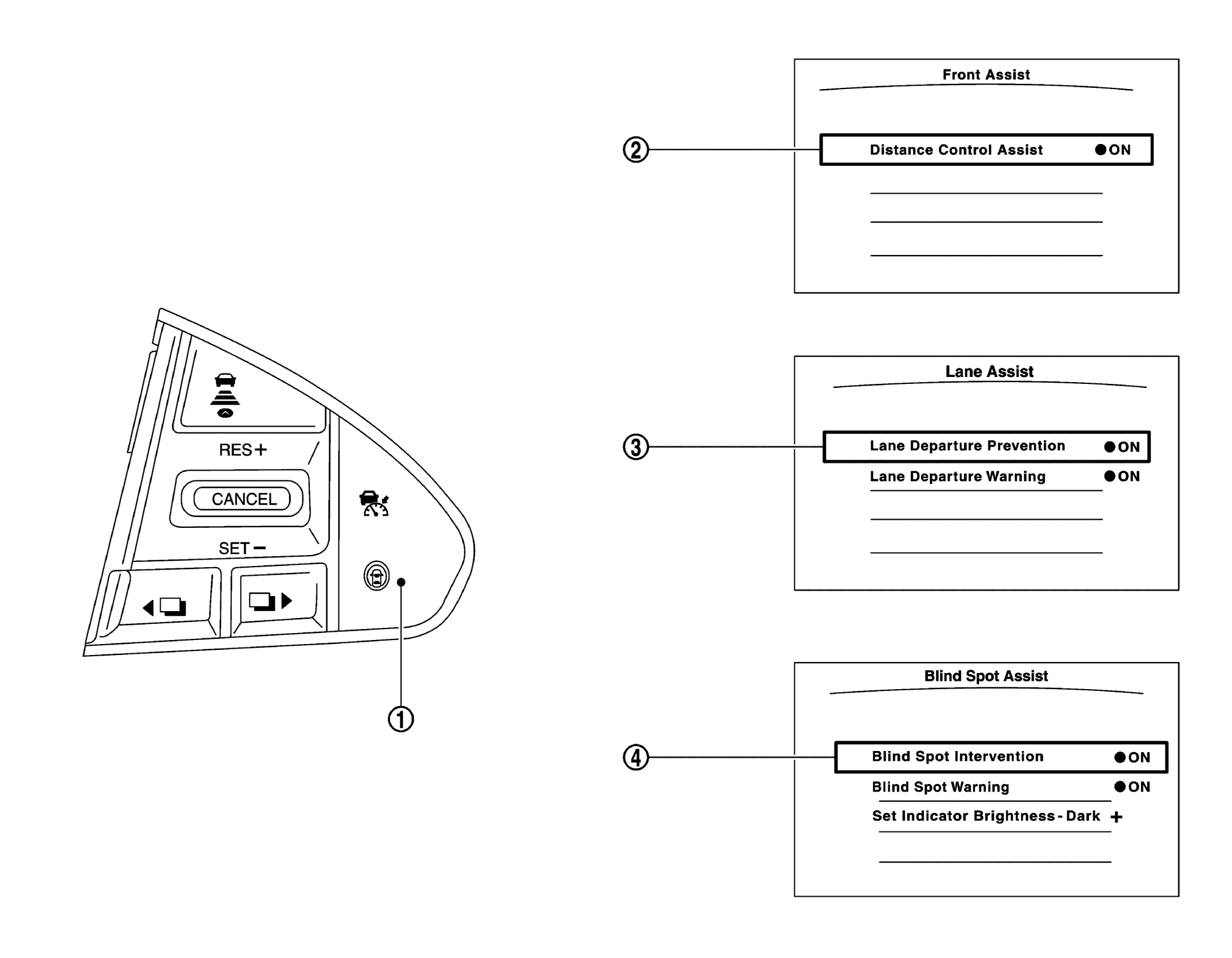

G09162697Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 Dynamic driver assistance switch Turns DCA/LDP/Blind Spot Intervention system ON/OFF
(When the setting of system on the navigation system setting screen is ON)
WHITE-2 DCA system setting screen
(Integral switch)
The setting of DCA system can be switched between ON and OFF
WHITE-3 LDP system setting screen
(Integral switch)
The setting of LDP system can be switched between ON and OFF
WHITE-4 Blind Spot Intervention system setting screen
(Integral switch)
The setting of Blind Spot Intervention system can be switched between ON and OFF
