Display And Warning (PFCW/LDW/BSW) - System Display

The PFCW/LDW/BSW systems operate when ON is selected with the integral switch.

System status	Condition	Display on combination meter	Indicator color
PFCW/LDW/BSW OFF	-	Courtesy of NISSAN NORTH AMERICA, INC.	-

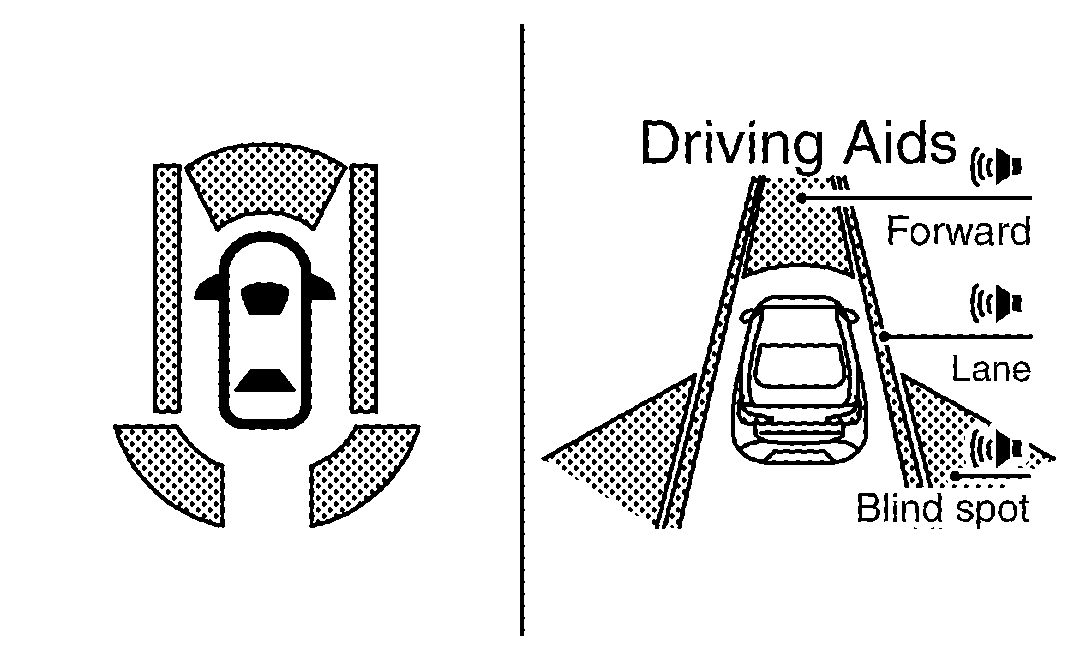

PFCW/LDW/BSW ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	White

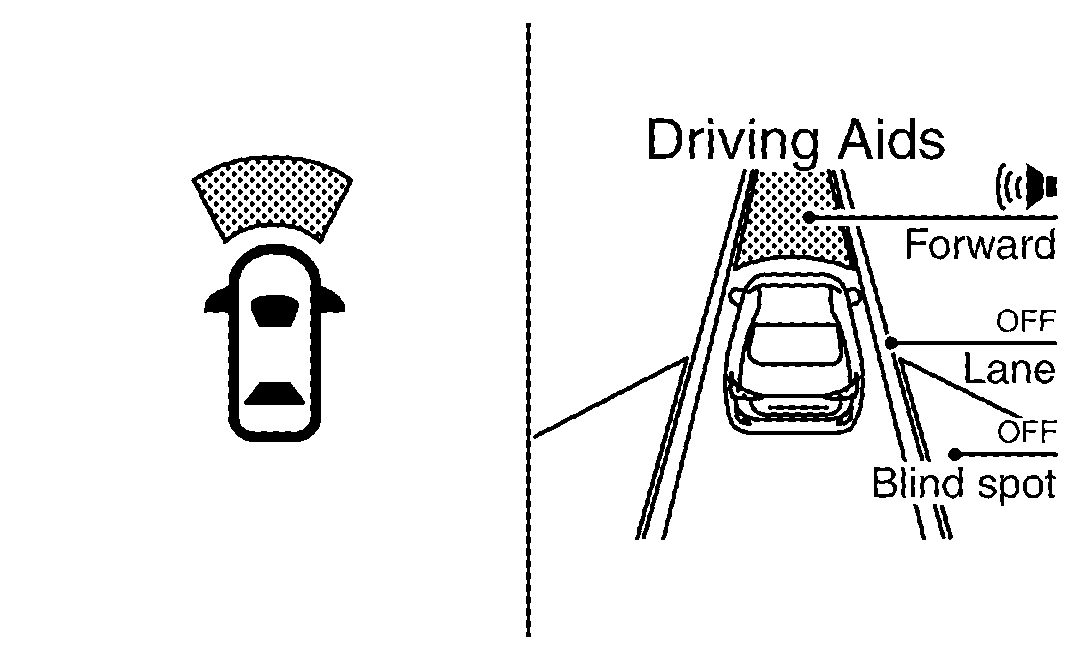

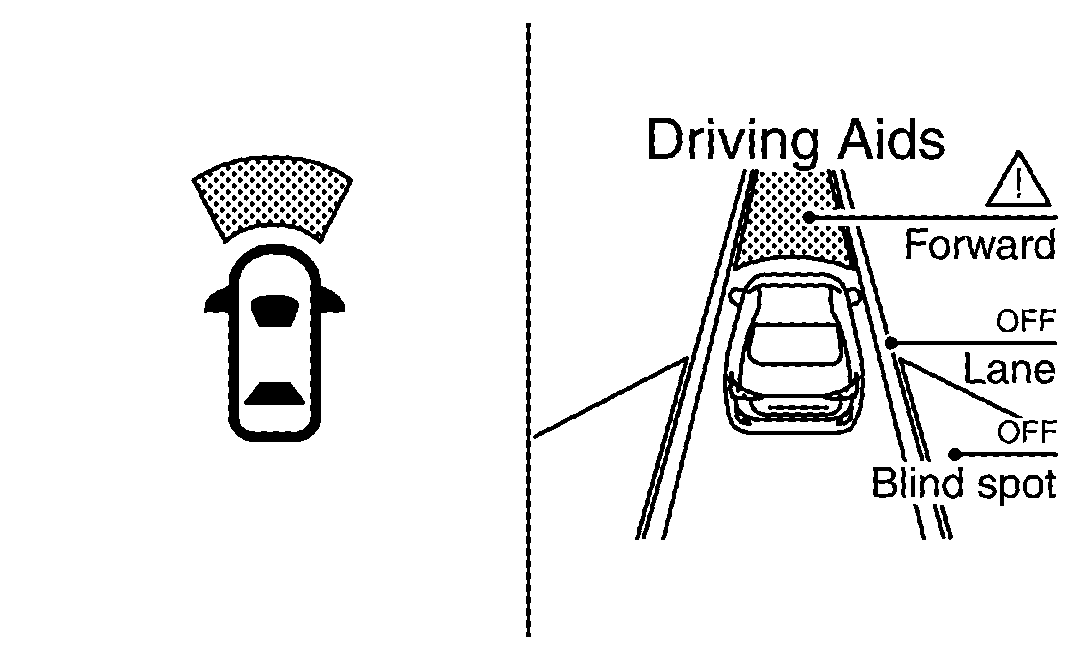

PFCW ON (FEB ON)	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	White

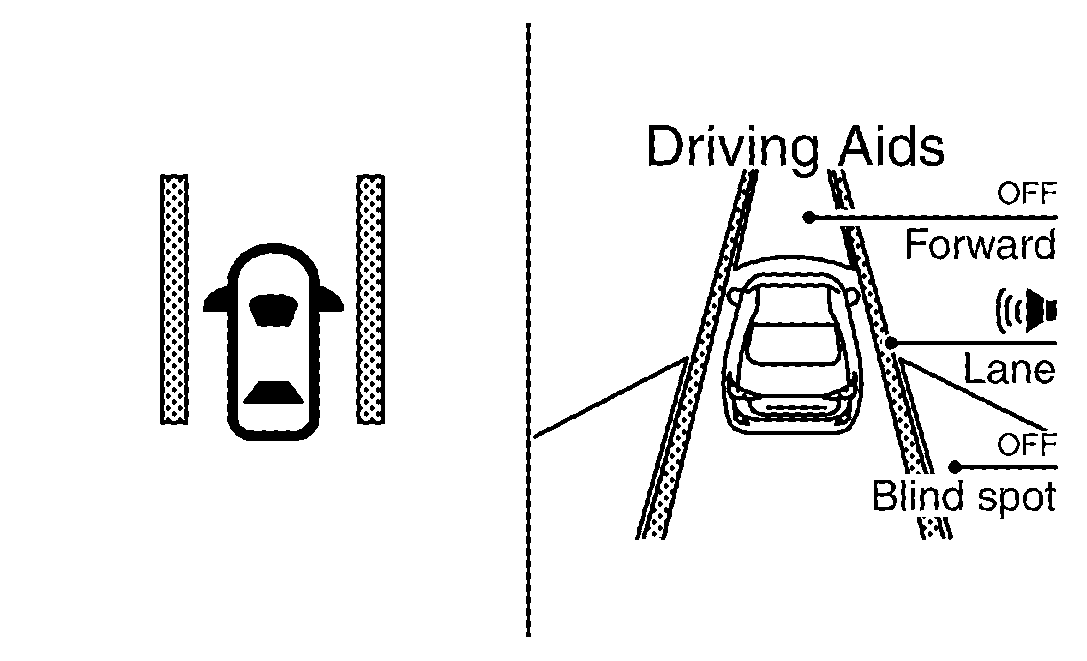

LDW ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	White

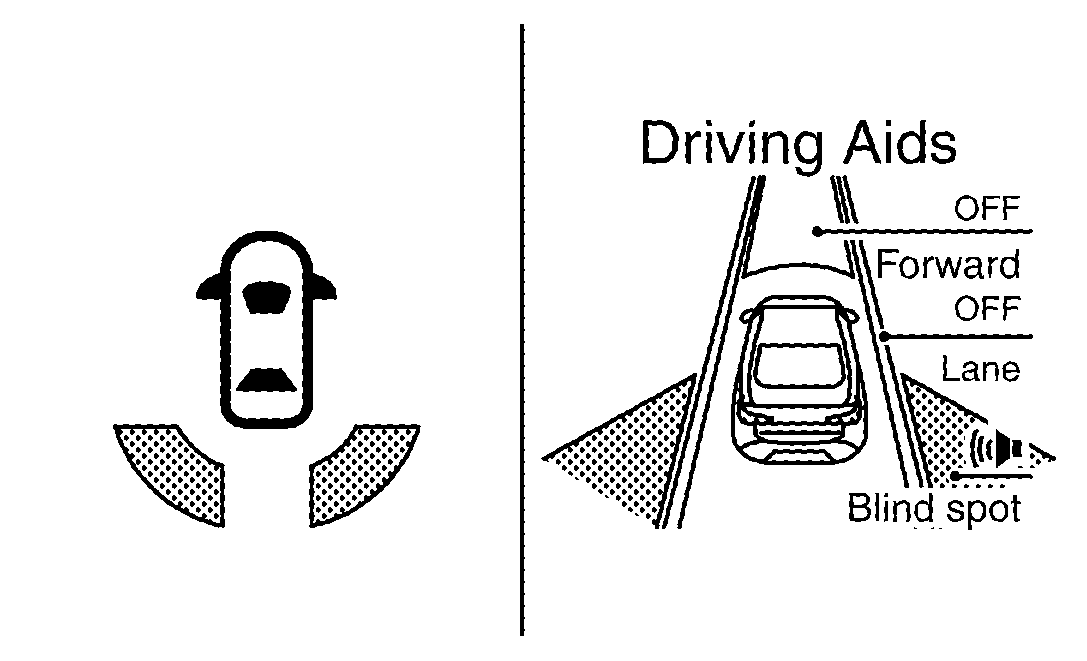

BSW ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	White
PFCW/LDW/BSW are malfunction	System malfunction	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow
Operation conditions not satisfied (dirt around the ICC sensor)	The PFCW/FEB system is automatically canceled.	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow
		Courtesy of NISSAN NORTH AMERICA, INC.	White
		Unavailable Front Radar Obstruction
Accelerator pedal high temperature		Courtesy of NISSAN NORTH AMERICA, INC.	White (Blink)
		Courtesy of NISSAN NORTH AMERICA, INC.	White
		Unavailable High Accelerator Temperature
Lane camera unit high temperature	The LDW system is automatically canceled.	Courtesy of NISSAN NORTH AMERICA, INC.	White (Blink)
		Courtesy of NISSAN NORTH AMERICA, INC.	White
		Unavailable High Cabin Temperature
Dirt around the side radar	The BSW system is automatically canceled.	Courtesy of NISSAN NORTH AMERICA, INC.	White (Blink)
		Courtesy of NISSAN NORTH AMERICA, INC.	White
		Unavailable Side Radar Obstruction
