Display And Warning (PFCW/LDW/BSW) - Warning Operation

PFCW operation

Condition	Action
Condition	Indication on the combination meter	Indicator color	Buzzer

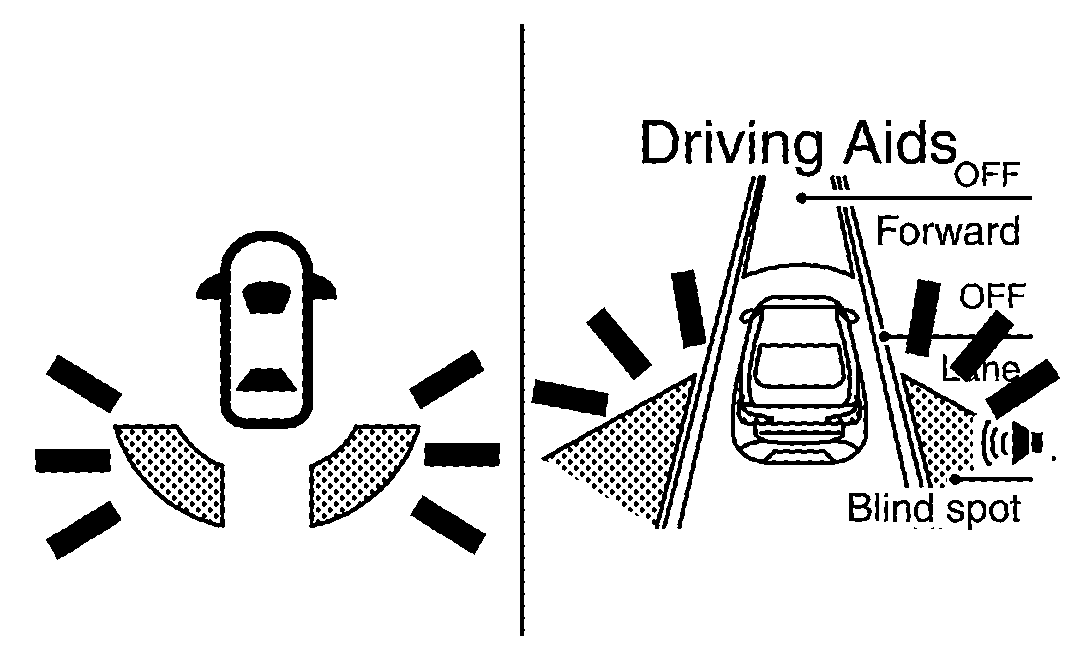

System ON	Courtesy of NISSAN NORTH AMERICA, INC.	White	OFF

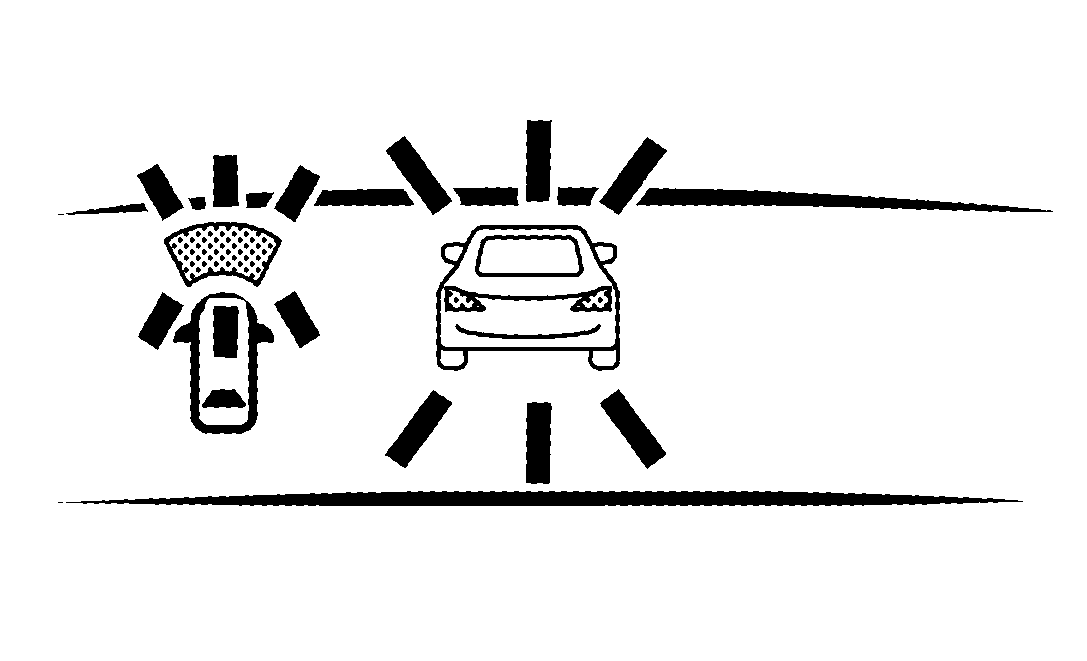

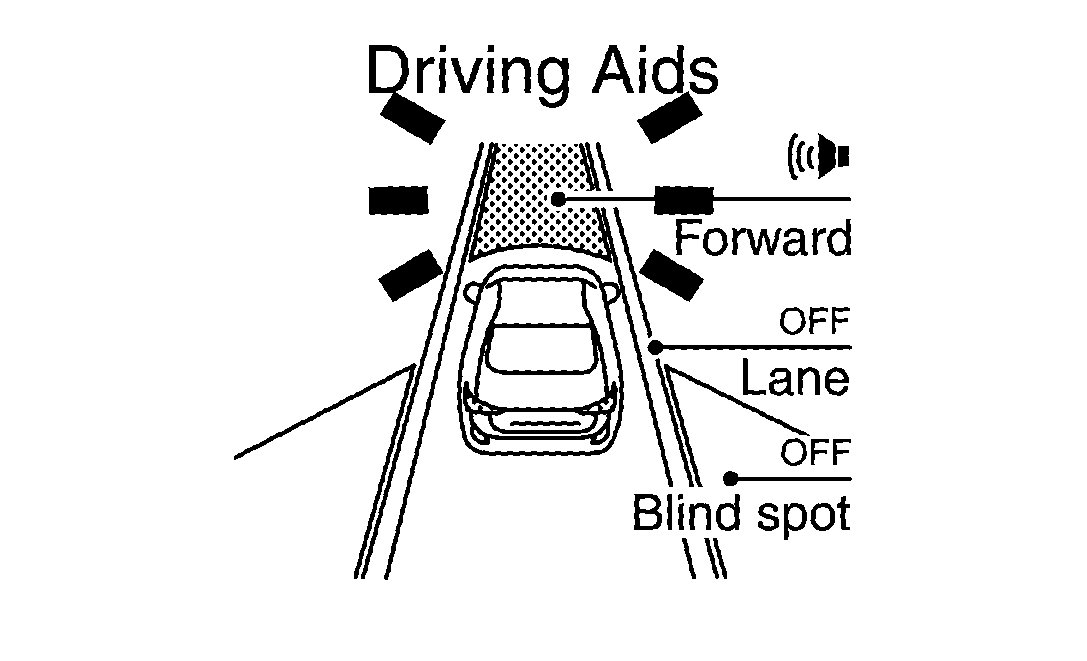

When judged that the distance between own vehicle and a vehicle in front of the vehicle ahead becomes closer	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Beep
	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Beep
Operation conditions not satisfied (dirt around the ICC sensor)	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow	Beep
	Unavailable Front Radar Obstruction	Yellow	Beep

LDW operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle close to lane marker	Indication on the combination meter	Indicator color	Buzzer
Less than Approx. 60 km/h (37 MPH)	-	Close to lane marker	Courtesy of NISSAN NORTH AMERICA, INC.	White	OFF

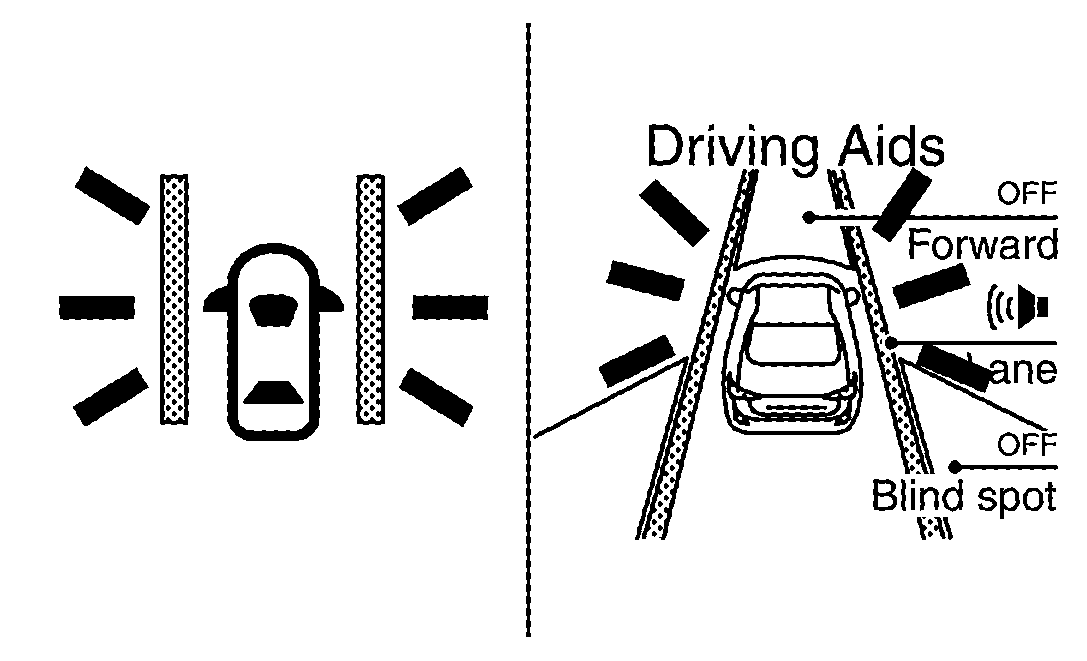

Approx. 70 km/h (45 MPH) or more	OFF ON (Opposite to the deviate side)	Close to lane marker	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Short continuous beeps
Approx. 70 km/h (45 MPH) or more	ON (Deviate side)	Close to lane marker	Courtesy of NISSAN NORTH AMERICA, INC.	White	OFF

NOTE:

After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 MPH). Refer to SYSTEM DESCRIPTION .

BSW operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle detection within detection area	Indication on the Blind Spot Warning/Blind Spot Intervention indicator	Indication on the combination meter	Indicator color	Buzzer
Less than approx. 29 (18)	-	-	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	White	OFF
Approx. 32 (20) or more	-	Vehicle is not detected	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	White	OFF
	OFF	Vehicle is detected	ON	Courtesy of NISSAN NORTH AMERICA, INC.	White	OFF
	ON (vehicle detected direction)	Before turn signal operates Vehicle is detected	Blink	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Short continuous beeps
	ON (vehicle detected direction)	Vehicle is detected after turn signal operates	Blink	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	OFF

NOTE:

If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
Time shown in the figure is approximate time.
Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON by pushing the dynamic driver assistance switch, BSW system also be turned on even if the BSW system is turned off.
