System Display - PFCW/LDW/BSW

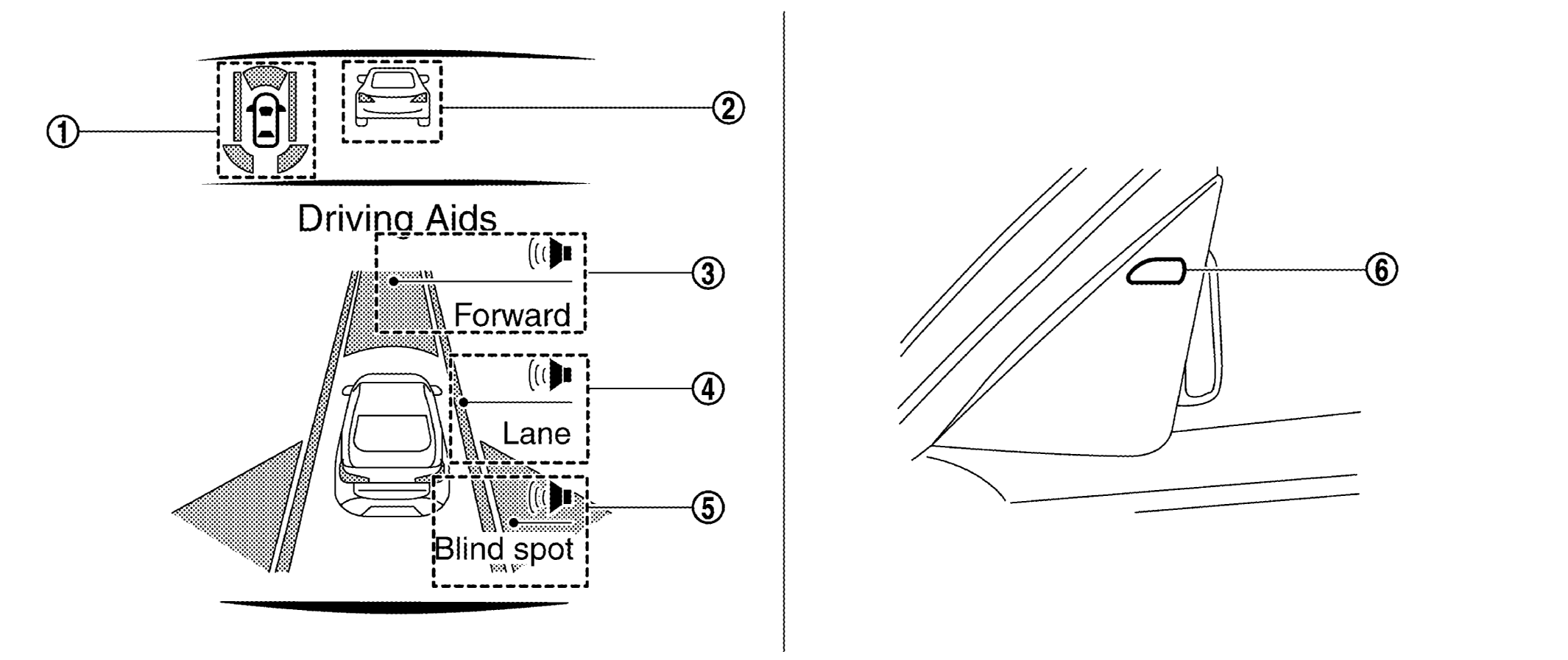

G09162670Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 Warning systems indicator Indicates that PFCW/FEB/LDW/BSW systems are ON
WHITE-2 Vehicle ahead detection indicator Indicates whether it detects a vehicle ahead
NOTE:

The vehicle ahead detection indicator turns OFF when the no operation condition is satisfied

WHITE-3 Warning systems indicator "Forward" position
(Speaker icon)
Indicates that PFCW/FEB system is ON
WHITE-4 Warning systems indicator "Lane" position
(Speaker icon)
Indicates that LDW system is ON
WHITE-5 Warning systems indicator "Blind spot" position
(Speaker icon)
Indicates that BSW system is ON
WHITE-6 Blind Spot Warning/Blind Spot Intervention indicator LH/RH
  • Illuminates when detect other vehicles beside vehicle in an adjacent lane
  • Blinks when BSW system is warning to driver
