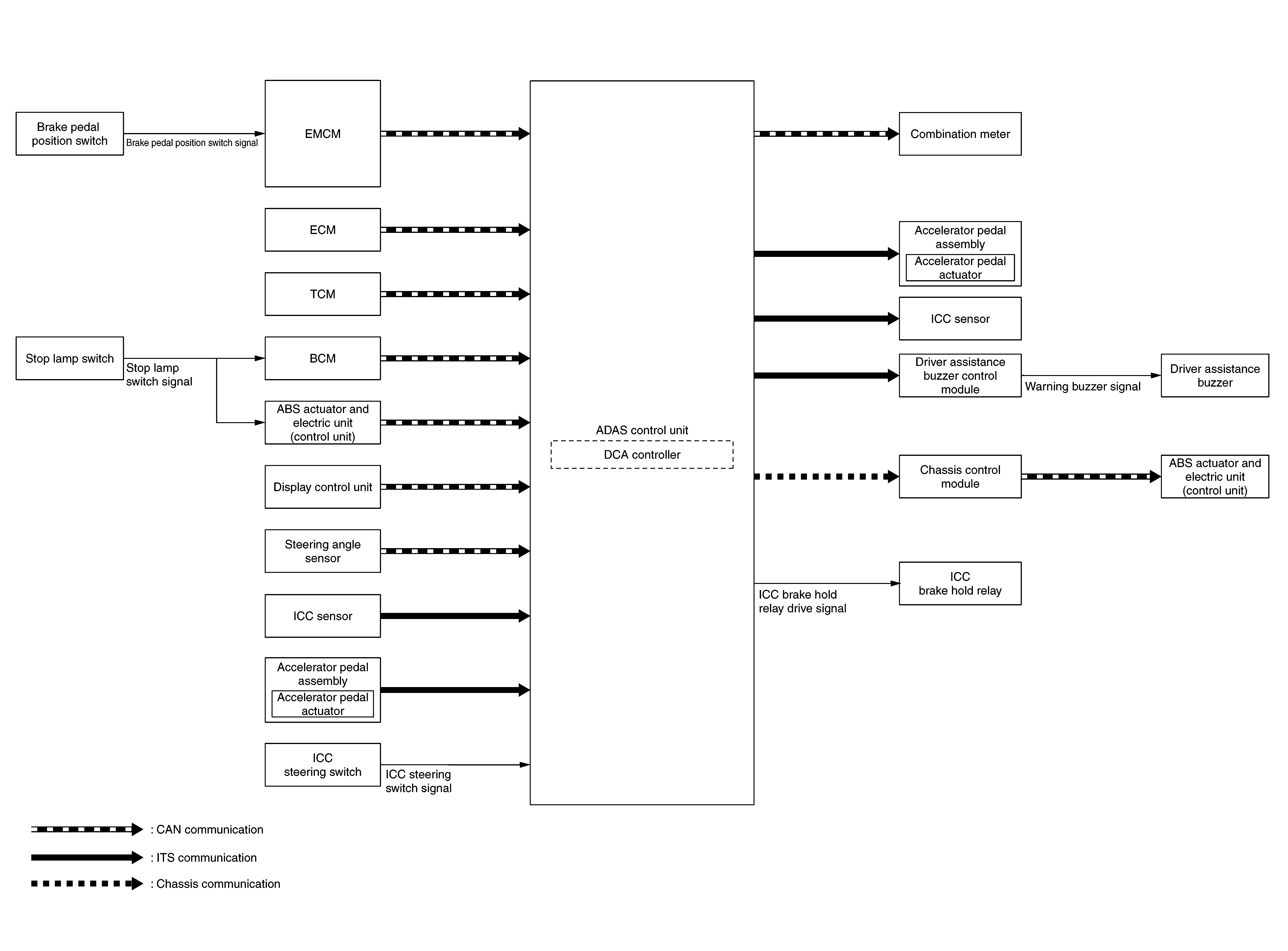

System Diagram - 2.0 Turbo Gasoline Engine

GNSJSOIA0887GB-887Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM.
