Method Of Starting

  1. Start the engine.
  2. Turn the audio system OFF.

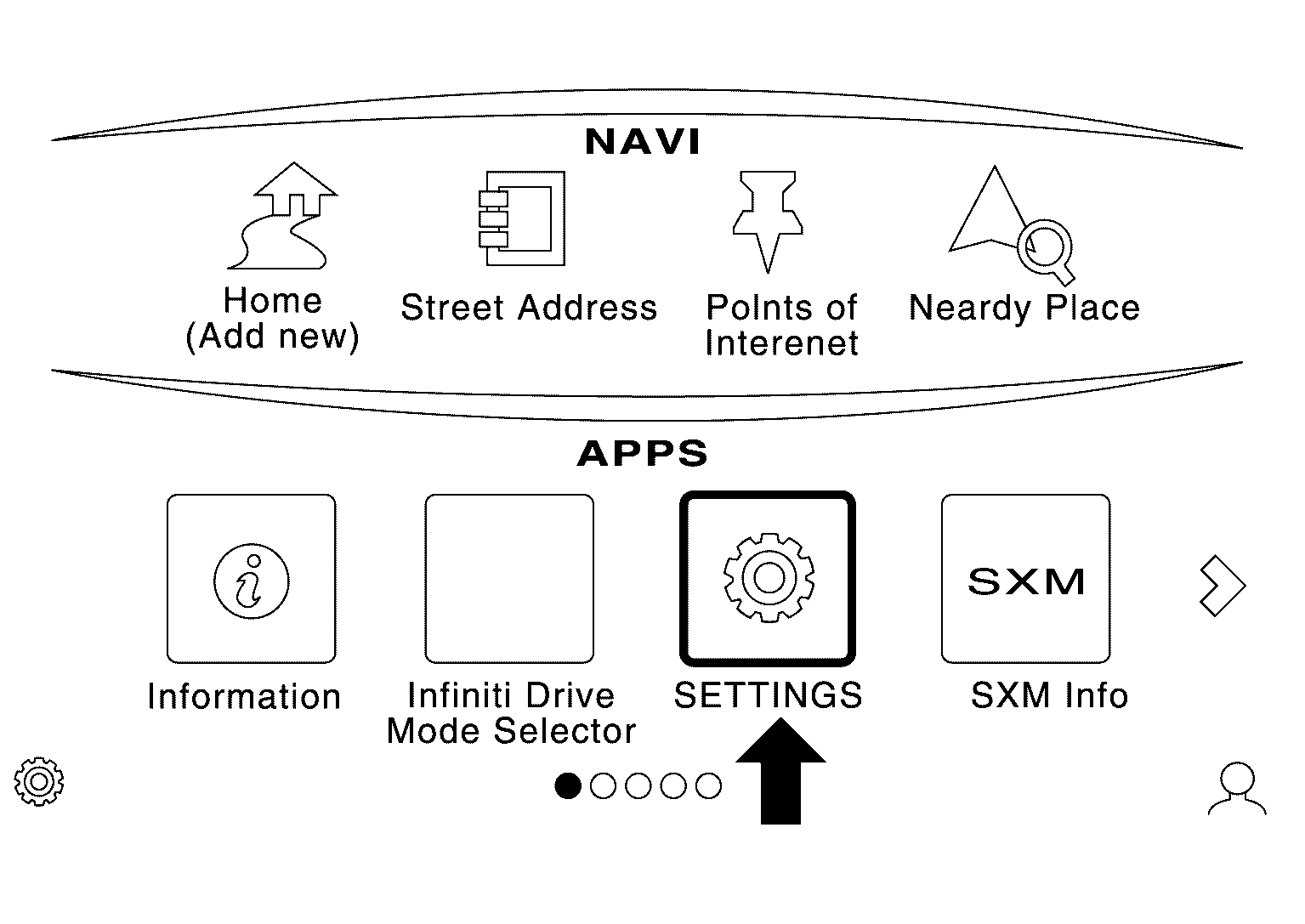

  3. Touch the "SETTINGS" icon and display a settings menu screen.
    G09161746Courtesy of NISSAN NORTH AMERICA, INC.

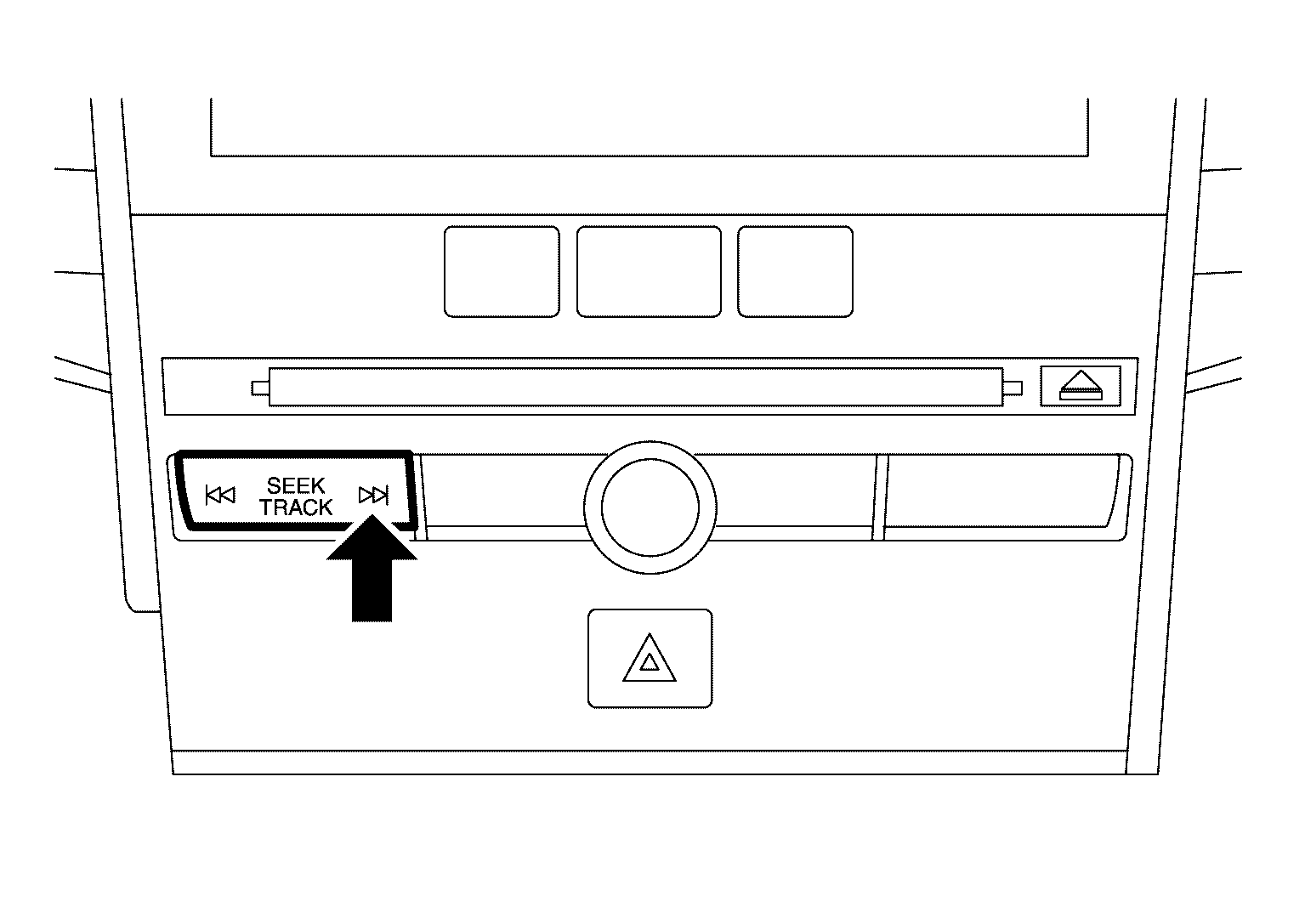

  4. Press the "Seek/Track Up" switch at least 3 times. (Within 15 seconds after the settings menu screen display.)
    G09161747Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:

    When press the "Seek/Track Up" switch more than 4 times, a self-diagnosis mode is not started. press the "MENU" switch again.

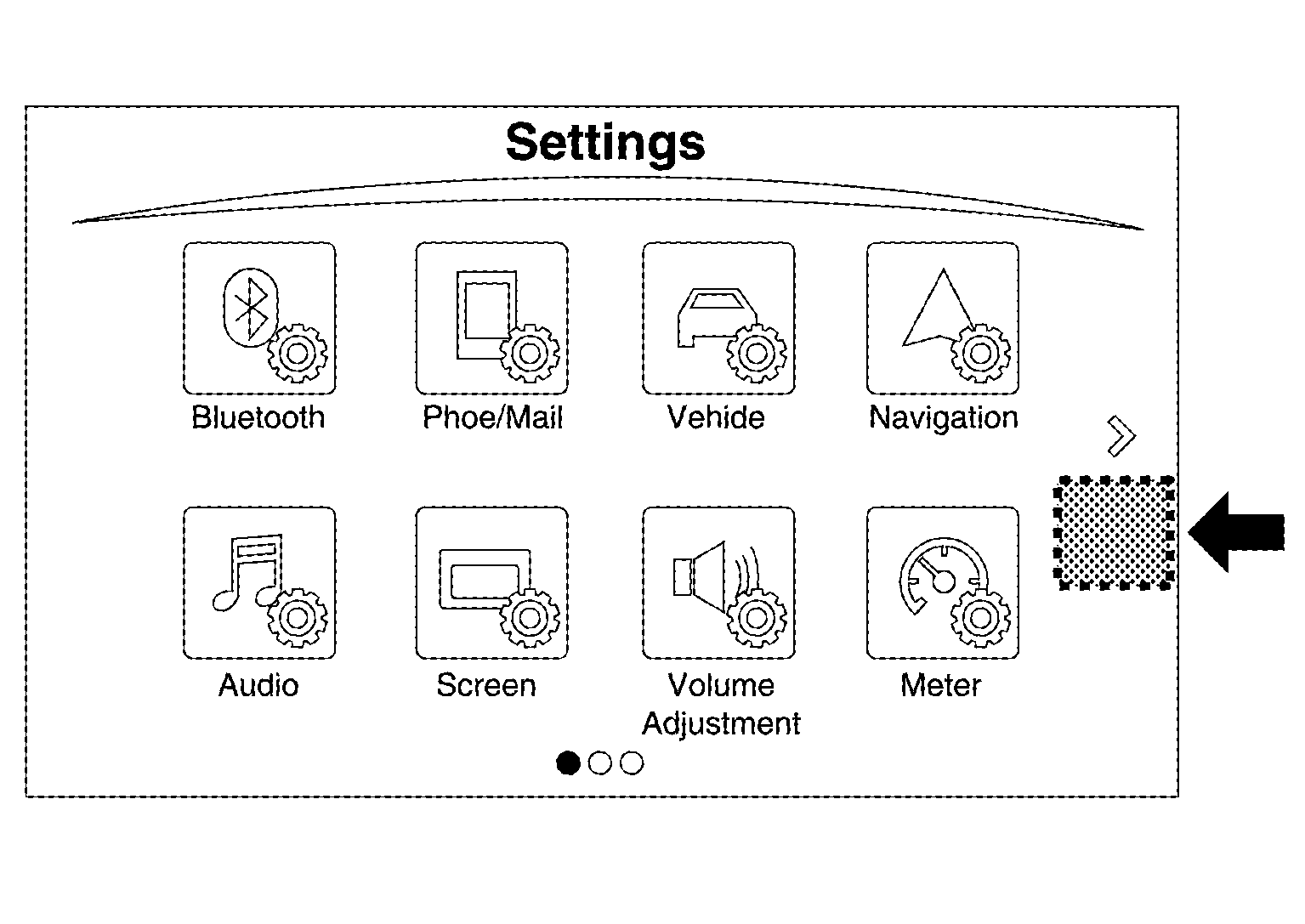

  5. Touch the screen (area of the figure) for 3 seconds.
    G09161748Courtesy of NISSAN NORTH AMERICA, INC.
  6. The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
    NOTE:

    When a diagnostic screen is not displayed, press the "MENU" switch. And then, restart from the procedure of Step 3.
