Switch Information
Steering switch, multifunction switch and integral switch information can be checked.
Switch name and ID are displayed when press each switch.

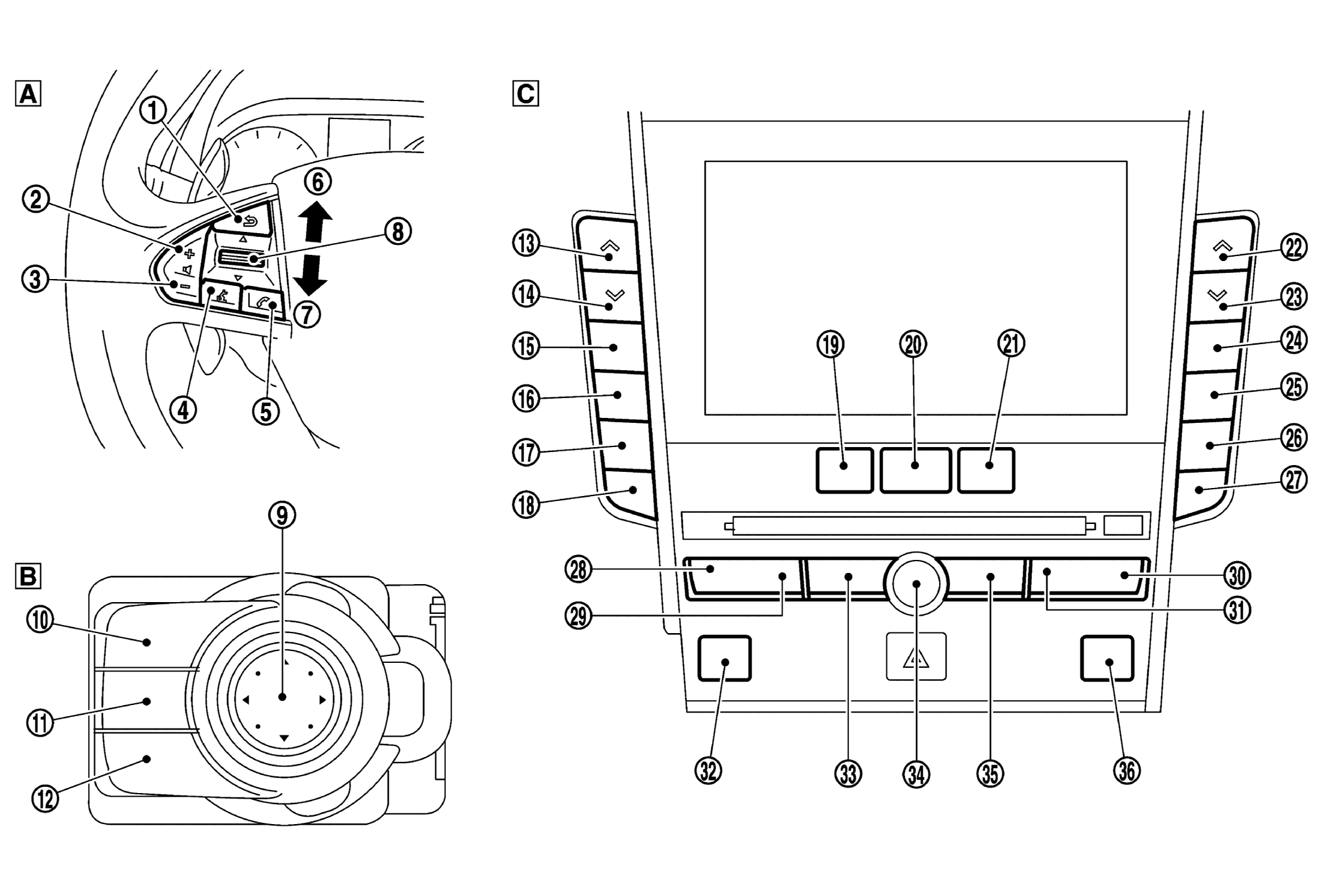

| Steering switch | Multifunction switch | Integral switch |
| No. | Display name | Switch position |
|---|---|---|
| Source | Steering switch | |
| VOL UP/Right | ||
| VOL DOWN/Left | ||
| Voice Recognition Engine: | ||
| Phone | ||
| MENU UP | ||
| MENU DOWN | ||
| Enter | ||
| OK | Multifunction switch | |
| MAP | ||
| Back | ||
| Not displayed | ||
| Temperature | Integral switch | |
| Temperature | ||
| Auto | ||
| Wind Speed + | ||
| Wind Speed - | ||
| MODE | ||
| Audio | ||
| Menu | ||
| Climate | ||
| Temperature | ||
| Temperature | ||
| Recirculation | ||
| Front Defrost | ||
| Rear Defrost | ||
| OFF | ||
| TUNE/CH/HOLDER> | ||
| <TUNE/CH/HOLDER | ||
| Seat Heater (Left Seat) | ||
| Radio | ||
| Not displayed | ||
| DISC/AUX | ||
| Seat Heater (Right Seat) |
