Steering Angle Sub Control Module Connector End View (E100)

Connector Types:  P01FB-A

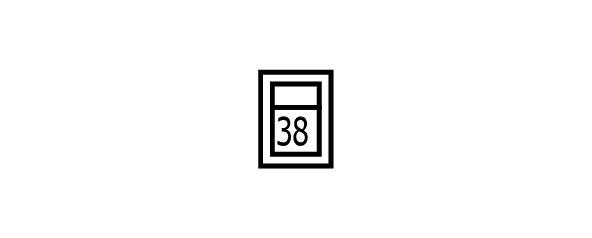

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

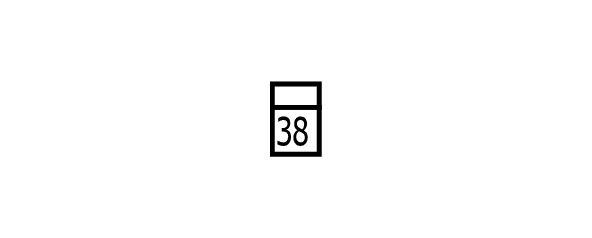

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
38	SHIELD	GROUND
