Steering Angle Main Control Module Connector End View (E97)

Connector Types:  Y03FB-L

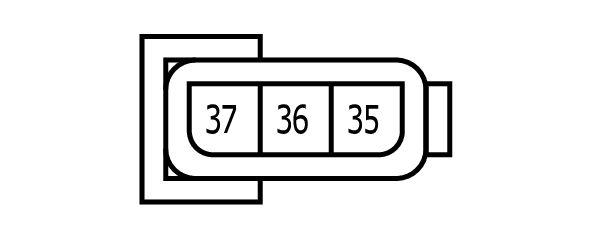

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

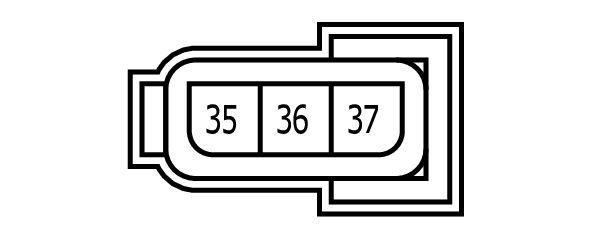

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
35	B	STEERING ANGLE MAIN MOTOR U-PHAZE
36	W	STEERING ANGLE MAIN MOTOR V-PHAZE
37	W/L	STEERING ANGLE MAIN MOTOR W-PHAZE
