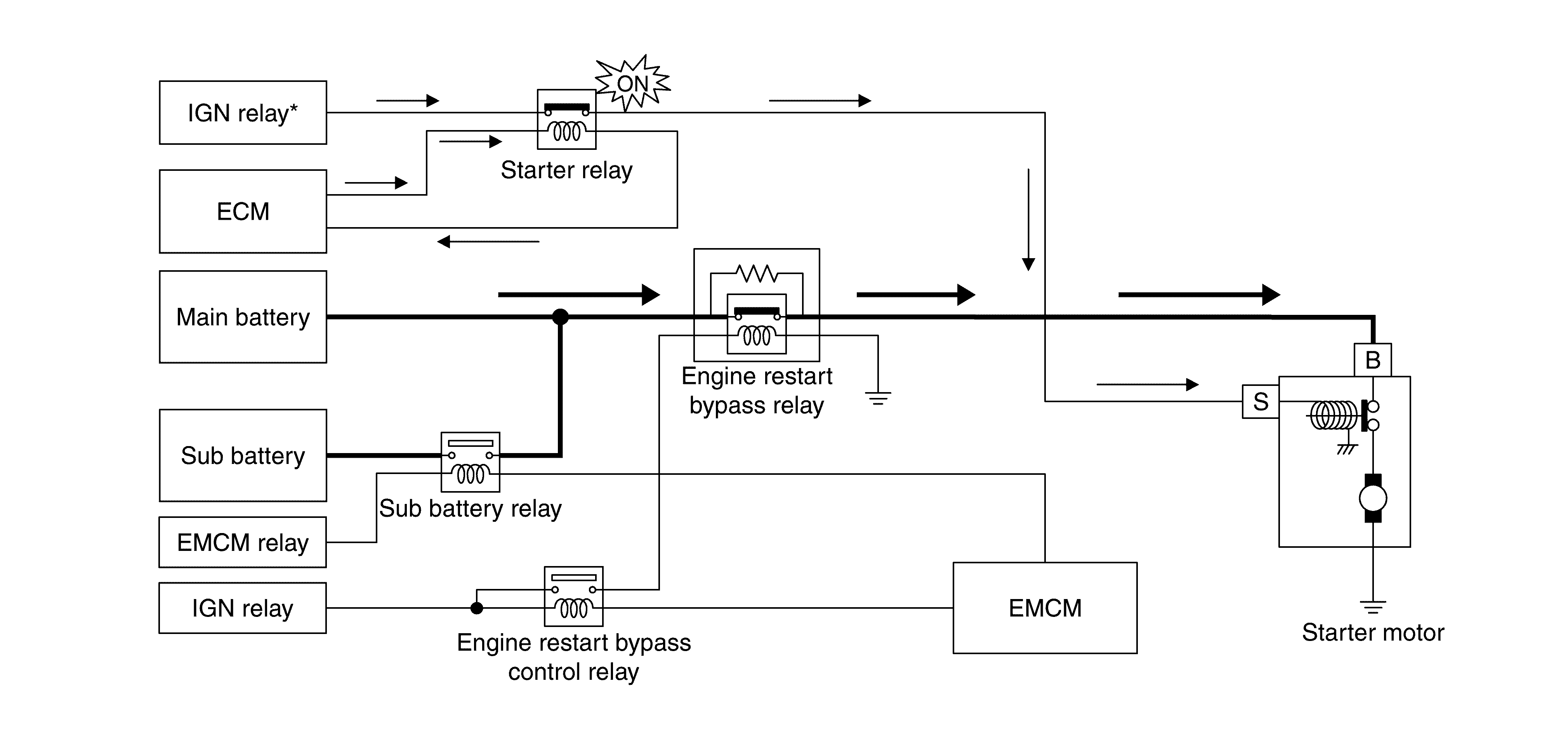

Control Flow - During Engine Start With Ignition Switch

Courtesy of NISSAN NORTH AMERICA, INC.

*: Fuse and Fusible Link Block

When the engine is started with ignition switch operation, ECM turns ON the starter relay to activate the starter motor. This allows the starter motor to start the engine.
