Operation And Display - Controller (Integral Switch)

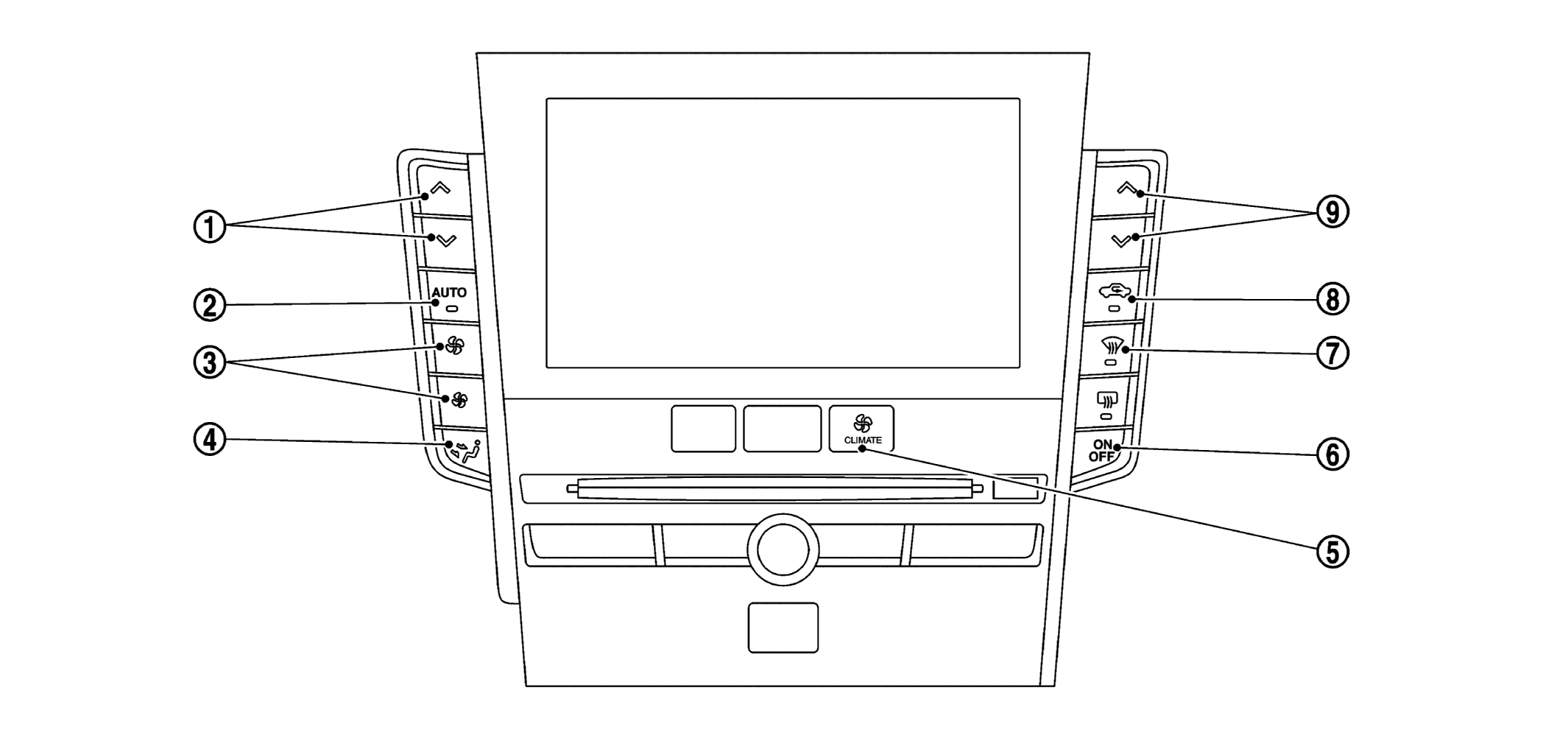

GNSJMIIA2964ZZ-964Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Temperature control switch (Driver side) WHITE-2 AUTO switch WHITE-3 Fan switch
WHITE-4 MODE switch WHITE-5 CLIMATE switch WHITE-6 ON/OFF switch
WHITE-7 DEF switch WHITE-8 Intake switch WHITE-9 Temperature control switch (Passenger side)
