Switch And Their Control Function

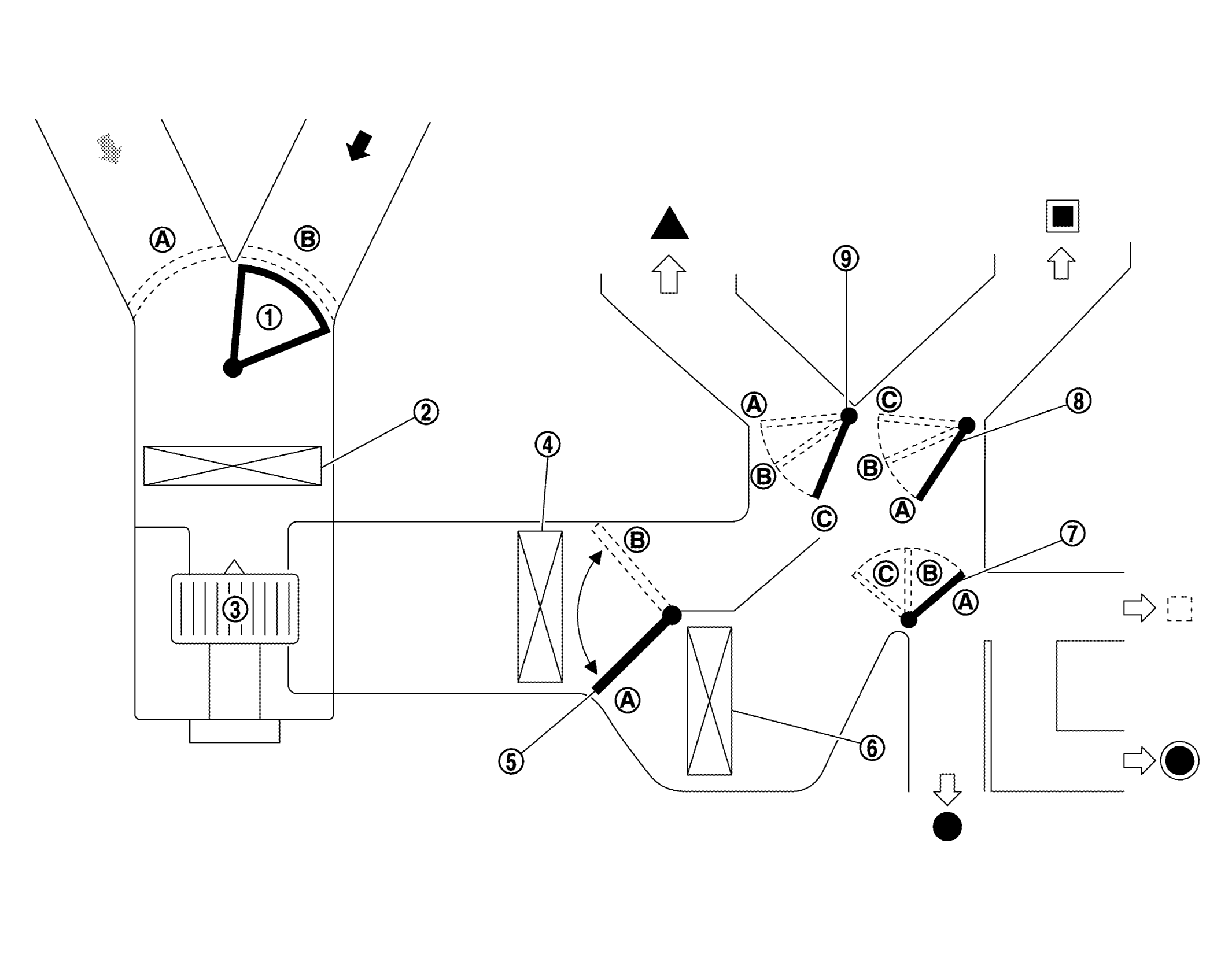

| Intake door | In-cabine microfilter | Blower motor | |||
| Evaporator | Air mix door (driver side/passenger side) | Heater core | |||
| Foot door | Ventilator door | Defroster door | |||
| Fresh air | Recirculation air | Discharge air | |||
| Defroster | Ventilator | Front foot | |||
| Rear foot | Rear ventilator |
| Switch position | Door position | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Mode door | Intake door | Air mix door (Driver side) | Air mix door (Passenger side) | ||||||
| Ventilator door | Foot door | Defroster door | |||||||
| AUTO switch | AUTO | - | - | - | |||||
| MODE switch | |||||||||
| ( |
|||||||||
| DEF switch | |||||||||
| Intake switch* 1 | REC | - | - | - | |||||
| FRE | |||||||||
| Temperature control switch (Driver side) | DUAL switch: OFF | Full cold 18.0°C (60°F) |
- | ||||||
| 18.5°C - 31.5°C (61°F - 89°F) |
AUTO | ||||||||
| Full hot 32.0°C (90°F) |
|||||||||
| Temperature control switch (Driver side) | DUAL switch: ON | Full cold 18.0°C (60°F) |
- | ||||||
| 18.5°C - 31.5°C (61°F - 89°F) |
AUTO | ||||||||
| Full hot 32.0°C (90°F) |
|||||||||
| Temperature control switch (Passenger side) | Full cold 18.0°C (60°F) |
- | |||||||
| 18.5°C - 31.5°C (61°F - 89°F) |
AUTO | ||||||||
| Full hot 32.0°C (90°F) |
|||||||||
| ON•OFF switch | OFF | ( |
- | ||||||
* 1: Air inlet status is displayed by indicator during activating automatic control
* 2: Default setting
* 3: It can be changed using "BLOW SET" in "WORK SUPPORT" mode of CONSULT. Refer to FOOT POSITION SETTING TRIMMER .
