Fuel Pump Control Module Connector End View (B11)

Connector Types:  TB06FB

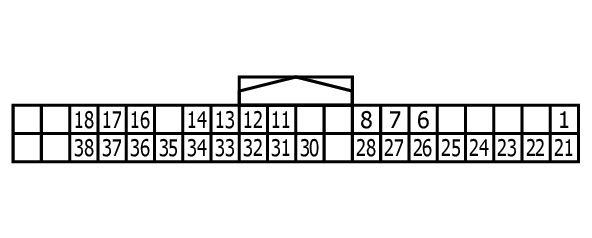

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

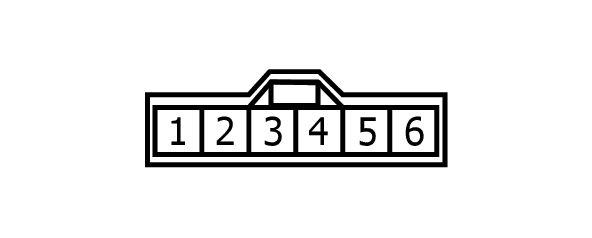

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	G	-
2	BR	-
3	B	-
4	W	-
5	Y	-
6	BR	-
