Power Steering Control Module Connector End View (E176)

Connector Types:  RS04FB-PR

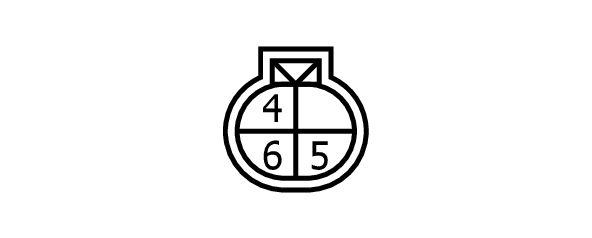

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

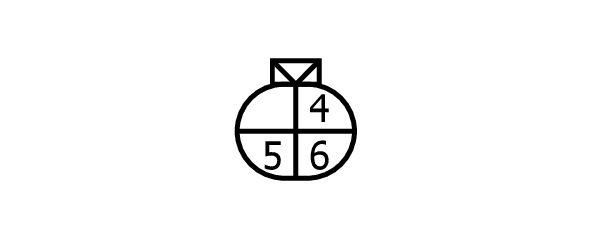

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
4	R	IGNITION POWER SUPPLY
5	L	CAN-H
6	P	CAN-L
