Power Steering Control Module Connector End View (E221)

Connector Types:  FEA04FB-FHA2-LC

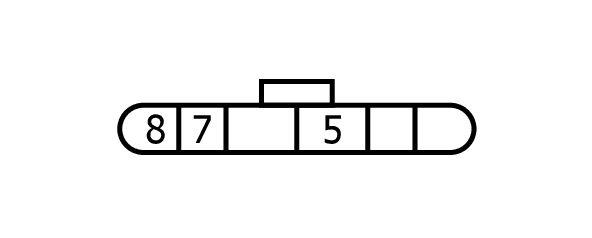

Fig 1: Terminal-side
GNSW24684Courtesy of NISSAN NORTH AMERICA

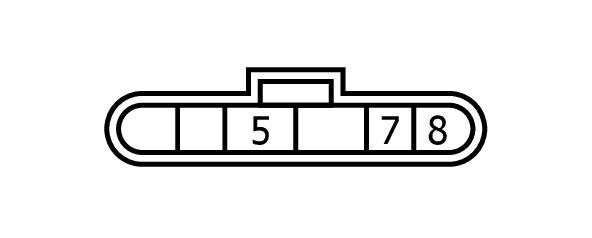

Fig 2: Harness-side
GNSW25005Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
5 V IGNITION POWER SUPPLY
7 P CAN-L
8 L CAN-H
