Power Steering Control Module Connector End View (E222)

Connector Types:  renault_8200500194

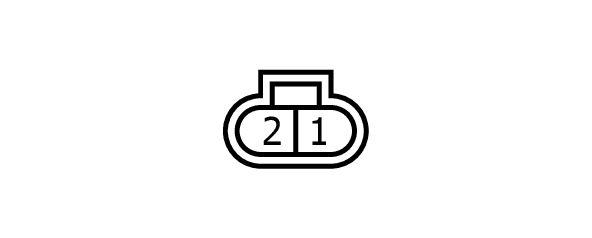

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

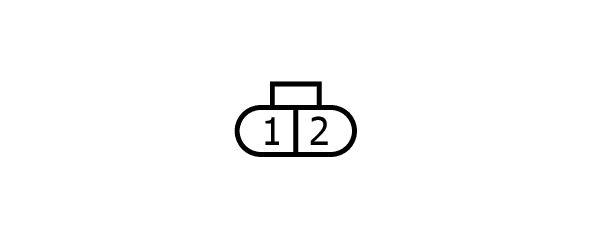

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR	BATTERY POWER SUPPLY
2	B	GROUND
