Manual Mode Switch

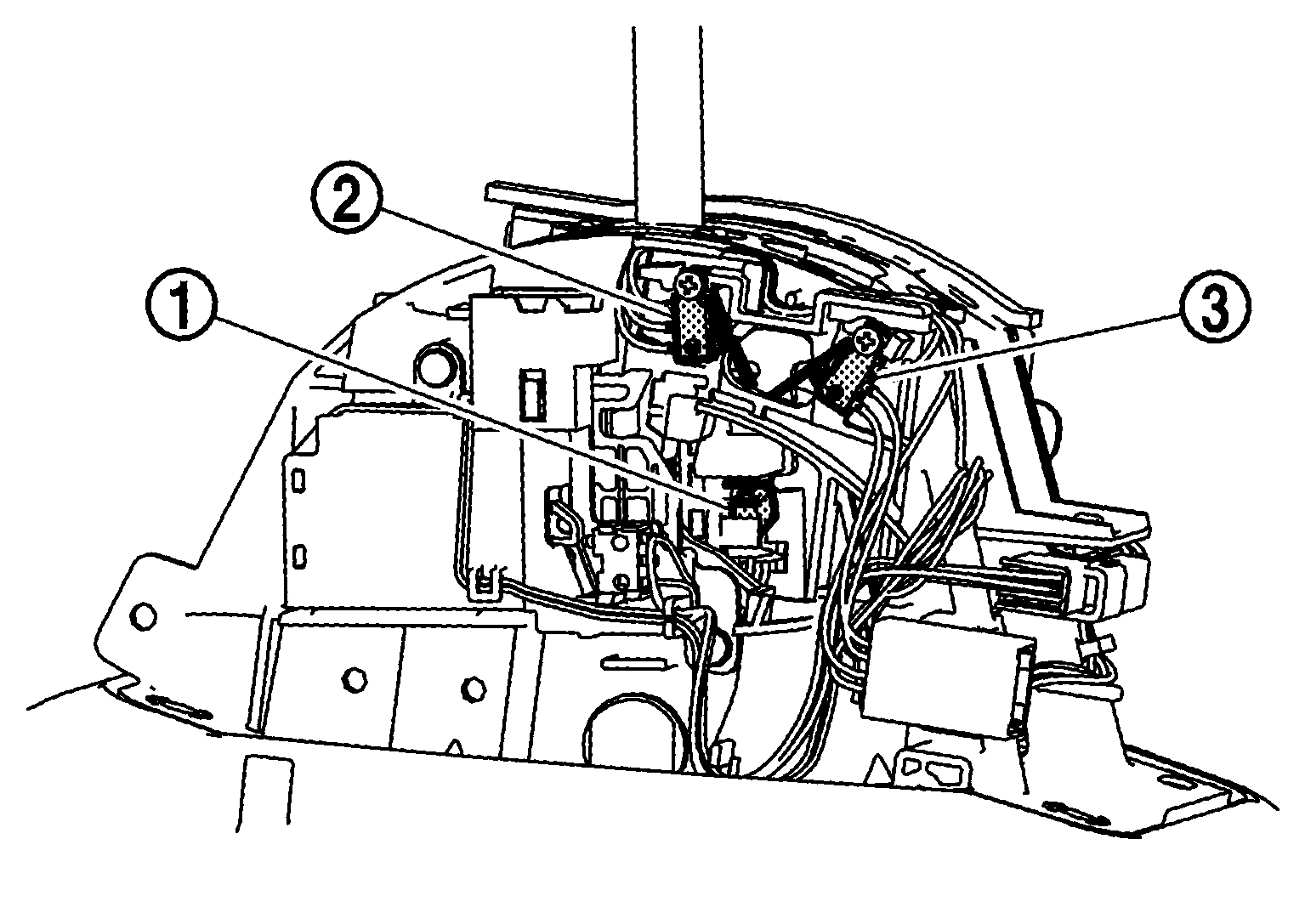

- The manual mode switch [mode select switch
, position select switch (up)
, and position select switch (down)
] is installed to the A/T shift selector assembly.
- The mode select switch detects the position (the main shift gate side or manual shift gate side) of the selector lever and transmits a manual mode signal or a not manual mode signal to the combination meter. Then, the TCM receives a manual mode signal or non-manual mode signal from the combination meter.
- The position select switch (up) detects that the selector lever is shifted to the upshift side of the manual shift gate and transmits a manual mode upshift signal to the combination meter. Then, the TCM receives a manual mode upshift signal from the combination meter.
- The position select switch (down) detects that the selector lever is shifted to the downshift side of the manual shift gate and transmits a manual mode downshift signal to the combination meter. Then, the TCM receives a manual mode downshift signal from the combination meter.
