VVEL Control Module Connector End View (E15)

Connector Types: RH18FB-AJZ8-LH

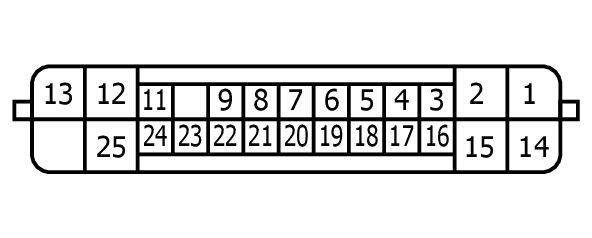

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

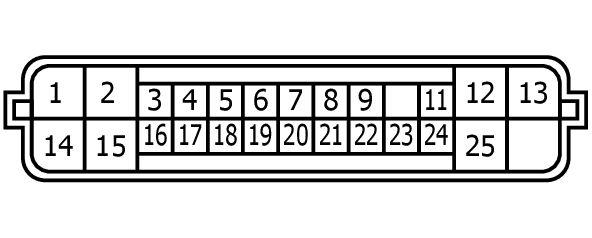

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	VMOT-B2
2	L/B	MOTOR1-B2
2	L/B	MOTOR1-B2
3	B	VEL/S1-B1 [With VQ37 engine]
3	Y	VEL/S1-B1 [With VK56 engine]
4	W	SENSOR GROUND
5	L	VEL/S1-B2 [With VK56 engine]
5	W	VEL/S1-B2 [With VQ37 engine]
6	B	SENSOR GROUND
7	W	AVCC3 [With VK56 engine]
7	Y	AVCC3 [With VQ37 engine]
8	R	POWER SUPPLY FOR VVEL CONTROL MODULE
9	B	AVCC1 [With VK56 engine]
9	L	AVCC1 [With VQ37 engine]
11	GR	ENGINE COMMUNICATION LINE
12	L/B	VVEL ACTUATOR MOTOR (HIGH LIFT) (BANK 1)
12	L/B	VVEL ACTUATOR MOTOR (HIGH LIFT) (BANK 1)
13	W	VMOT-B1
14	B/R	VVEL CONTROL MODULE GROUND
15	L/W	MOTOR2-B2
15	L/W	MOTOR2-B2
16	G	VEL/S2-B1 [With VK56 engine]
16	R	VEL/S2-B1 [With VQ37 engine]
17	G	AGND2 [With VQ37 engine]
17	Y	AGND2 [With VK56 engine]
18	G	VEL/S2-B2 [With VQ37 engine]
18	R	VEL/S2-B2 [With VK56 engine]
19	L	AGND4 [With VK56 engine]
19	R	AGND4 [With VQ37 engine]
20	L	AVCC4 [With VQ37 engine]
20	R	AVCC4 [With VK56 engine]
21	V	VVEL ACTUATOR MOTOR RELAY ABORT SIGNAL
22	G	AVCC2 [With VK56 engine]
22	Y	AVCC2 [With VQ37 engine]
23	P	VVEL ACTUATOR MOTOR RELAY
24	L	CAN L
25	L/W	MOTOR2-B1
25	L/W	MOTOR2-B1
