Vehicle Equipment Identification Information

NOTE:

Check CAN system type from the vehicle shape and equipment.

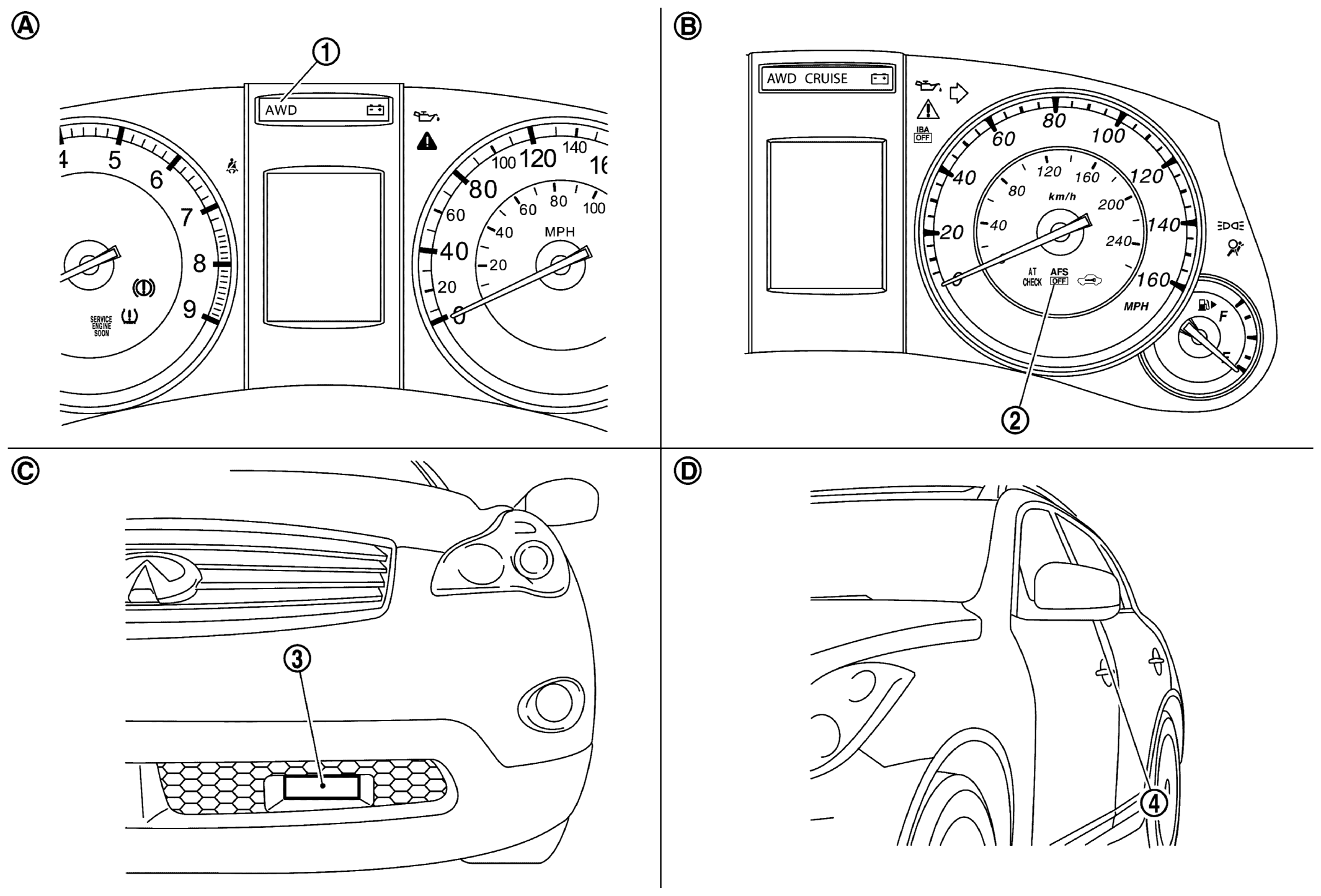

GNSJSMIA2340ZZ-340Courtesy of NISSAN NORTH AMERICA, INC.
1. AWD warning lamp 2. AFS OFF indicator lamp 3. ICC sensor integrated unit
4. Side camera LH
A. AWD models B. With active AFS C. With ICC system
D With around view monitor
