Physical Values

Terminal
(Wire color)		 Description Condition Reference value
(Approx.)
+ - Signal name Input/Output
1
(B)		 Ground Ground - Ignition switch ON - 0 V
2
(Y)* 1
(L)* 2		 1
(B)		 Battery power supply Input Ignition switch OFF - Battery voltage
3
(P)		 1
(B)		 Ignition signal Input Ignition switch ON - Battery voltage
4
(GR)		 1
(B)		 ACC power supply Input Ignition switch ACC - Battery voltage
19
(SB)		 - AV communication signal (H) Input/Output - - -
20
(LG)		 - AV communication signal (L) Input/Output - - -
25
(V)		 1
(B)		 Reverse signal Input/output Ignition switch ON R position 12.0 V
Other than R position
0 V
27
(L)		 - CAN-H Input/Output - - -
28
(Y)* 1
(P)* 2		 - CAN-L Input/Output - - -
47
(W)		 48 Camera image signal Output Ignition switch ON -
GNSJSNIA0834GB-834Courtesy of NISSAN NORTH AMERICA, INC.
48 Ground Shield (camera image ground) - Ignition switch ON - 0 V
49
(L)		 52

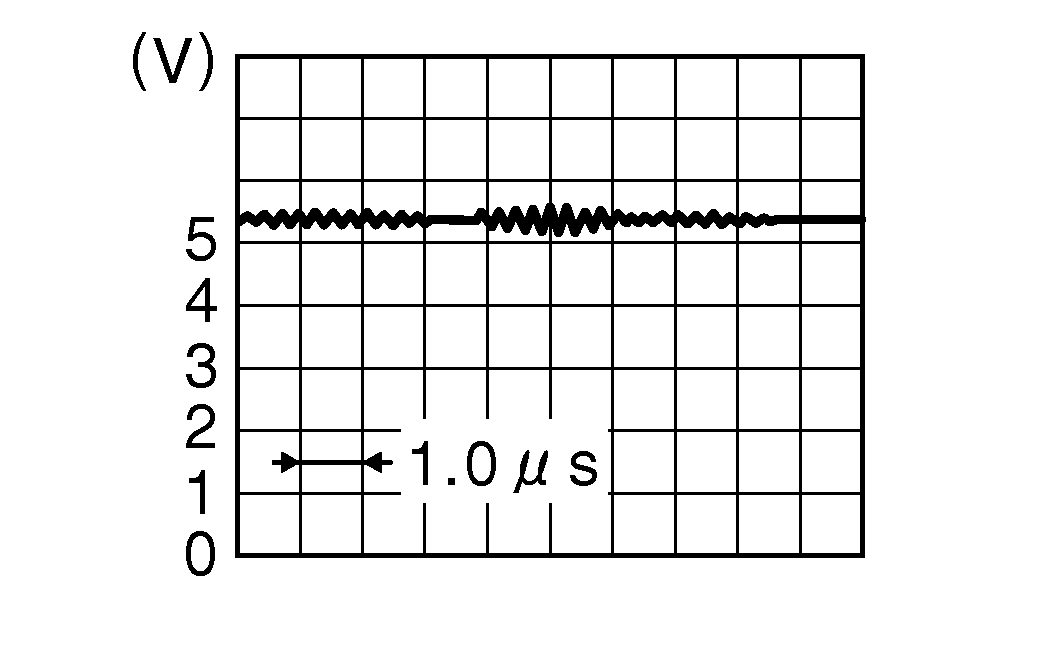

(R)		 Rear camera communication signal Input/Output Ignition switch ON -
GNSJSNIA0836GB-836Courtesy of NISSAN NORTH AMERICA, INC.
50
(BR)		 52
(R)		 Rear camera power supply Output Ignition switch ON - 6.0 V
51 - Shield - - - -
52
(R)		 Ground Rear camera ground - Ignition switch ON - 0 V
53
(Y)		 54
(W)		 Rear camera image signal (+) Input Ignition switch ON -
GNSJSNIA0834GB-834Courtesy of NISSAN NORTH AMERICA, INC.
55
(BR)		 58
(LG)		 Side camera driver side communication signal Input/Output Ignition switch ON -
GNSJSNIA0836GB-836Courtesy of NISSAN NORTH AMERICA, INC.
56
(SB)		 58
(LG)		 Side camera driver side power supply Output Ignition switch ON - 6.0 V
58
(LG)		 Ground Side camera driver side ground - Ignition switch ON - 0 V
59
(P)		 60 Side camera driver side image signal (+) Input Ignition switch ON -
GNSJSNIA0834GB-834Courtesy of NISSAN NORTH AMERICA, INC.
60 Ground Side camera driver side image signal (-) - Ignition switch ON - 0 V
61
(W)		 64
(B)		 Side camera passenger side communication signal Input/Output Ignition switch ON -
GNSJSNIA0836GB-836Courtesy of NISSAN NORTH AMERICA, INC.
62
(R)		 64
(B)		 Side camera passenger side power supply Output Ignition switch ON - 6.0 V
64
(B)		 Ground Side camera passenger side ground - Ignition switch ON - 0 V
65
(G)		 66 Side camera passenger side image signal (+) Input Ignition switch ON -
GNSJSNIA0834GB-834Courtesy of NISSAN NORTH AMERICA, INC.
66 Ground Side camera passenger side image signal (-) - Ignition switch ON - 0 V
67
(W)		 70
(G)		 Front camera communication signal Input/Output Ignition switch ON -
GNSJSNIA0836GB-836Courtesy of NISSAN NORTH AMERICA, INC.
68
(R)		 70
(G)		 Front camera power supply Output Ignition switch ON - 6.0 V
70
(G)		 Ground Front camera ground - Ignition switch ON - 0 V
71
(L)		 72 Front camera image signal (+) Input Ignition switch ON -
GNSJSNIA0834GB-834Courtesy of NISSAN NORTH AMERICA, INC.
72 Ground Front camera image signal (-) - Ignition switch ON - 0 V

* 1: With BSW

* 2: Without BSW
