Component Parts Location

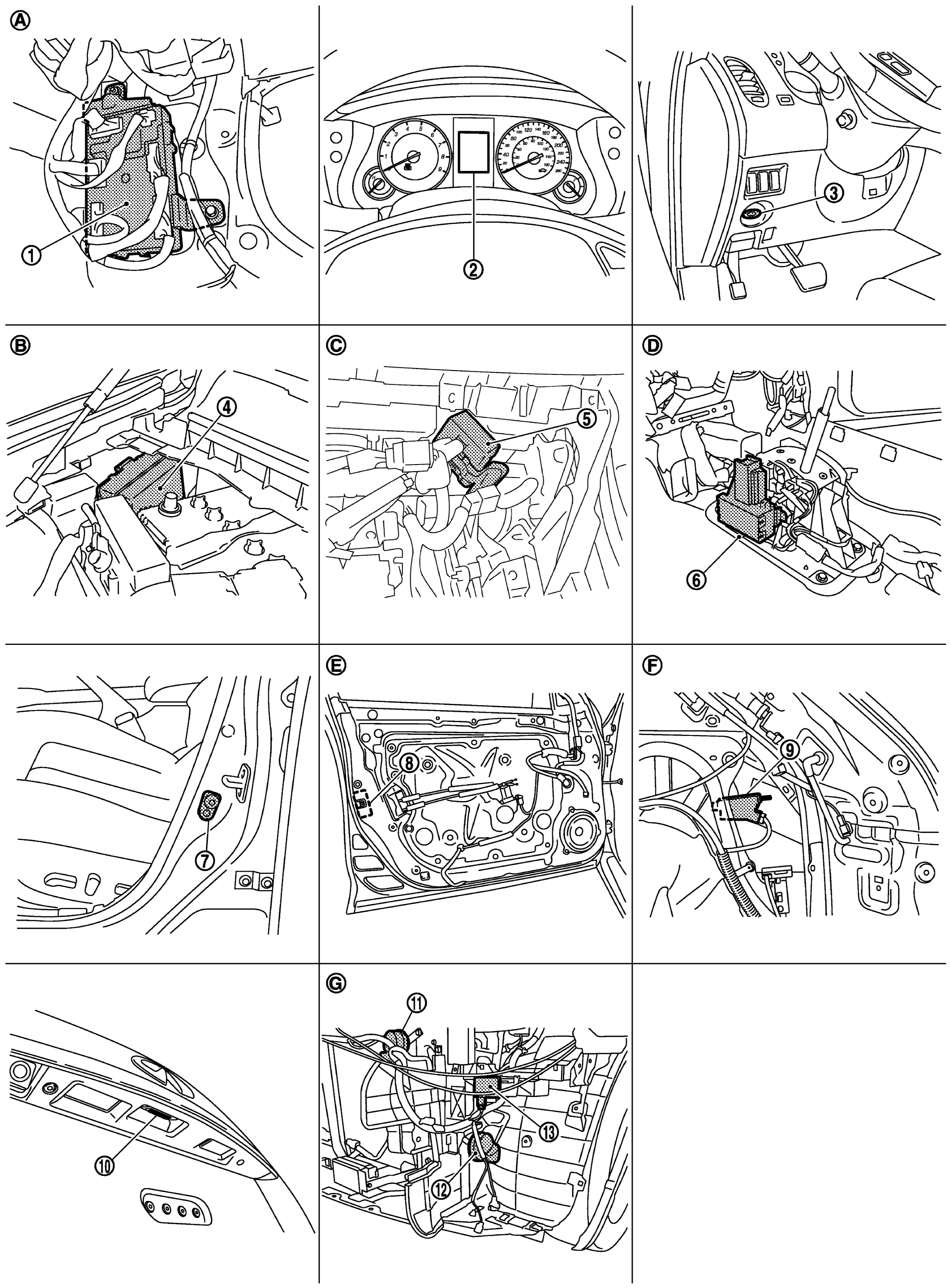

GNSJMKIA2222ZZ-222Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM 2. Combination meter 3. Key slot
4. IPDM E/R 5. Remote key less entry receiver 6. A/T shift selector (detention switch)
7. Front door switch (driver side) 8. Front door lock assembly (driver side) 9. Fuel lid lock actuator
10. Back door opener switch 11. Horn (high) 12. Horn (low)
13. Intelligent Key warning buzzer
A. Dash side lower (passenger side) B. Engine room dash panel (RH) C. Behind the instrument lower panel (driver side)
D. View with center console assembly removed E. View with front door finisher (LH) is removed F. View luggage side finisher lower (RH) is removed
G. View with front bumper is removed

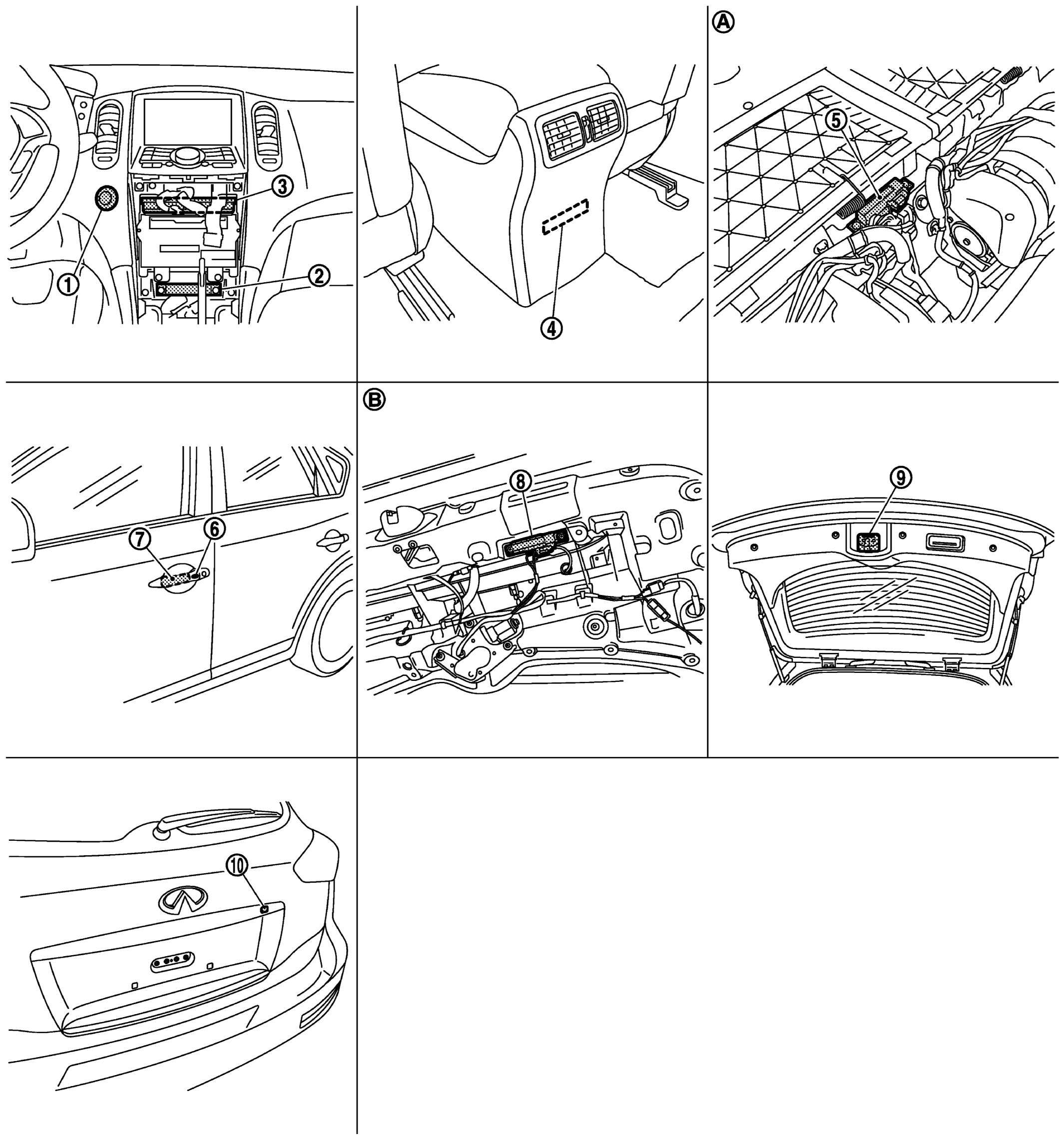

GNSJMKIA2223ZZ-223Courtesy of NISSAN NORTH AMERICA, INC.
1. Push-button ignition switch (push switch) 2. Inside key antenna (instrument center) 3. Unified meter and A/C amp.
4. Inside key antenna (console) 5. Inside key antenna (luggage room) 6. Front outside handle LH (request switch)
7. Front outside handle LH (outside key antenna) 8. Outside key antenna (back door) 9. Back door lock assembly
10. Back door request switch
A. View with luggage floor finisher front is removed B. View with back door finisher inner is removed
