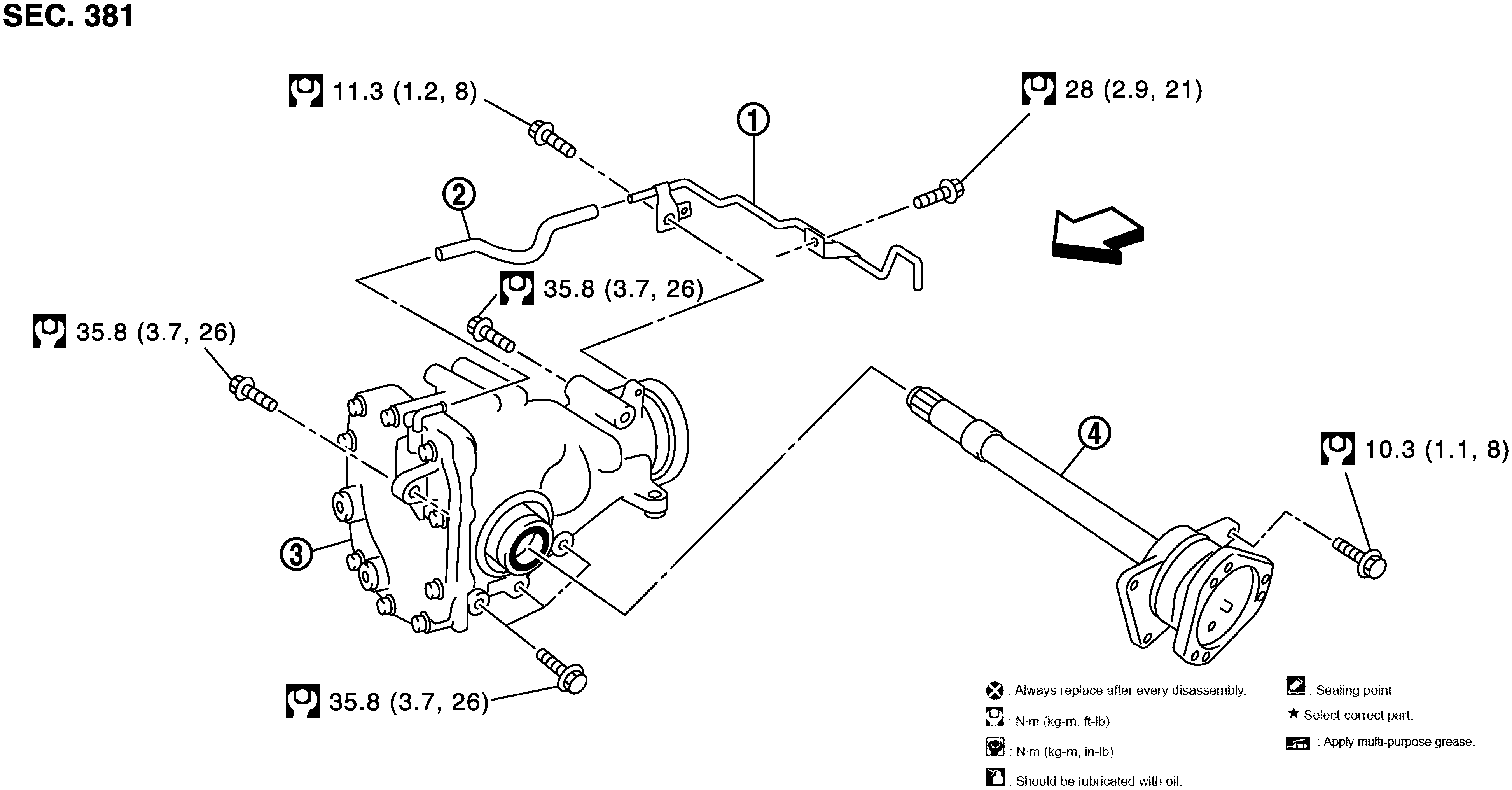

Exploded View With Torque Specifications

G08458205Courtesy of NISSAN NORTH AMERICA, INC.
1. Breather tube 2. Breather hose 3. Front final drive assembly
4. Side shaft
ARROW : Vehicle front
Refer to COMPONENTS for symbols in the illustration.
