BSW Control Module Connector End View (B50)

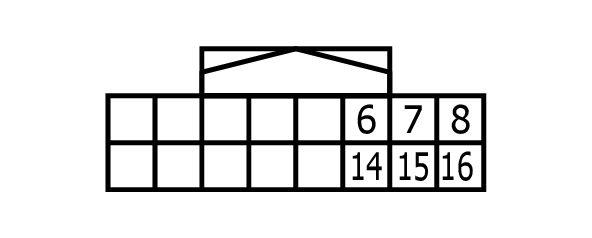

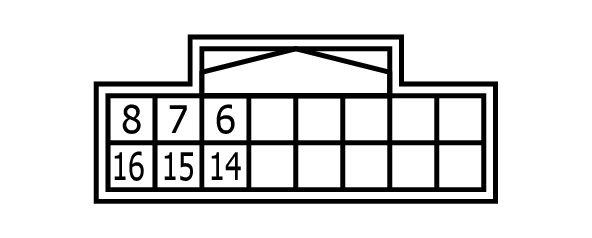

Connector Types:
TH16FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 6 |
B |
GROUND |
| 7 |
L |
Blind Spot Warning COMM-H |
| 8 |
Y |
Blind Spot Warning COMM-L |
| 14 |
L |
CAN-H |
| 15 |
P |
CAN-L |
| 16 |
G |
IGNITION |
