Disassembly And Assembly: Assembly

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

Before assembly, apply new engine oil to the parts as instructed in the figure.

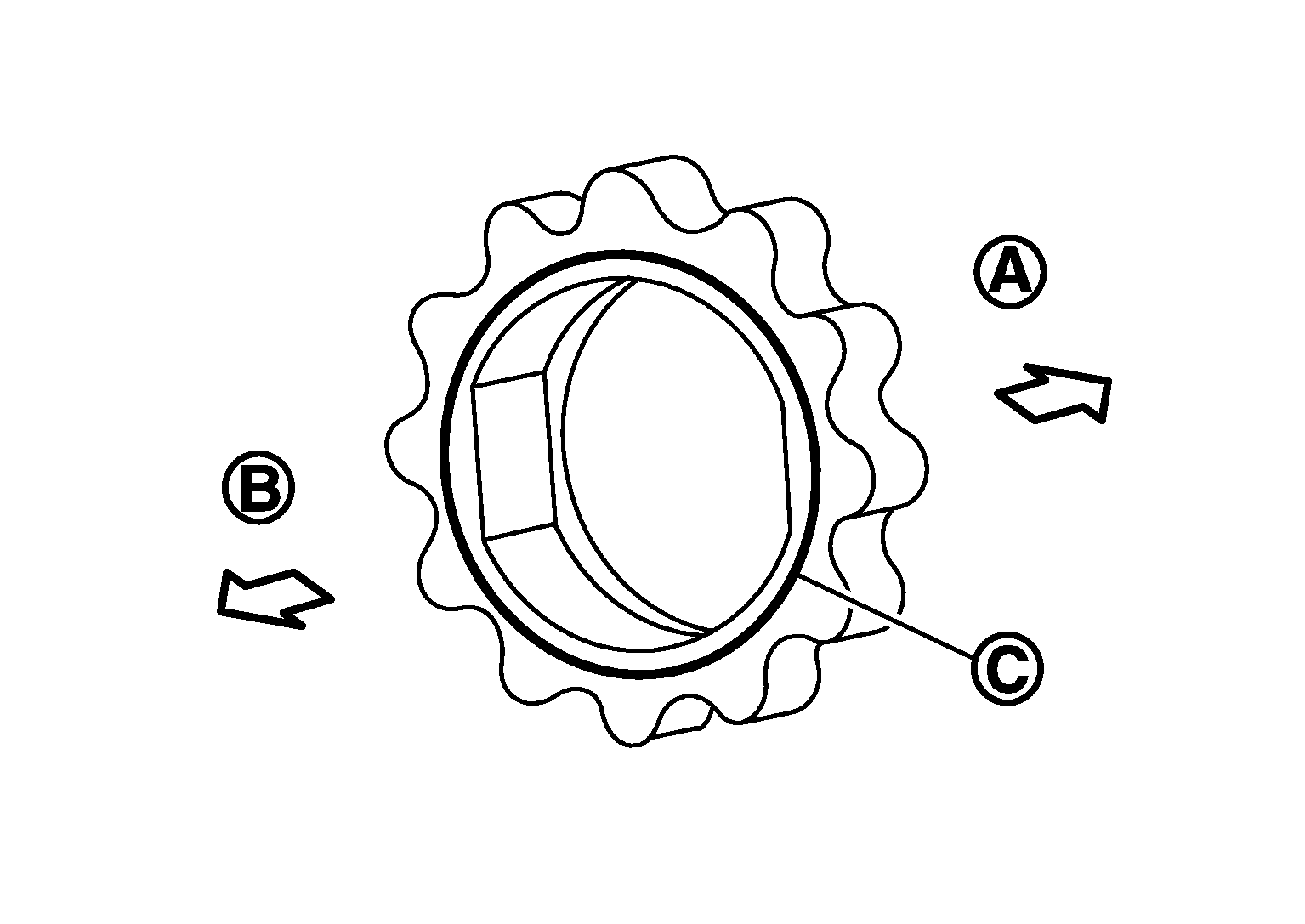

Install oil pump inner rotor with the groove faced to oil pump cover side.

Courtesy of NISSAN NORTH AMERICA, INC.

When installing oil pump, align crankshaft flat faces with oil pump inner rotor flat faces.
