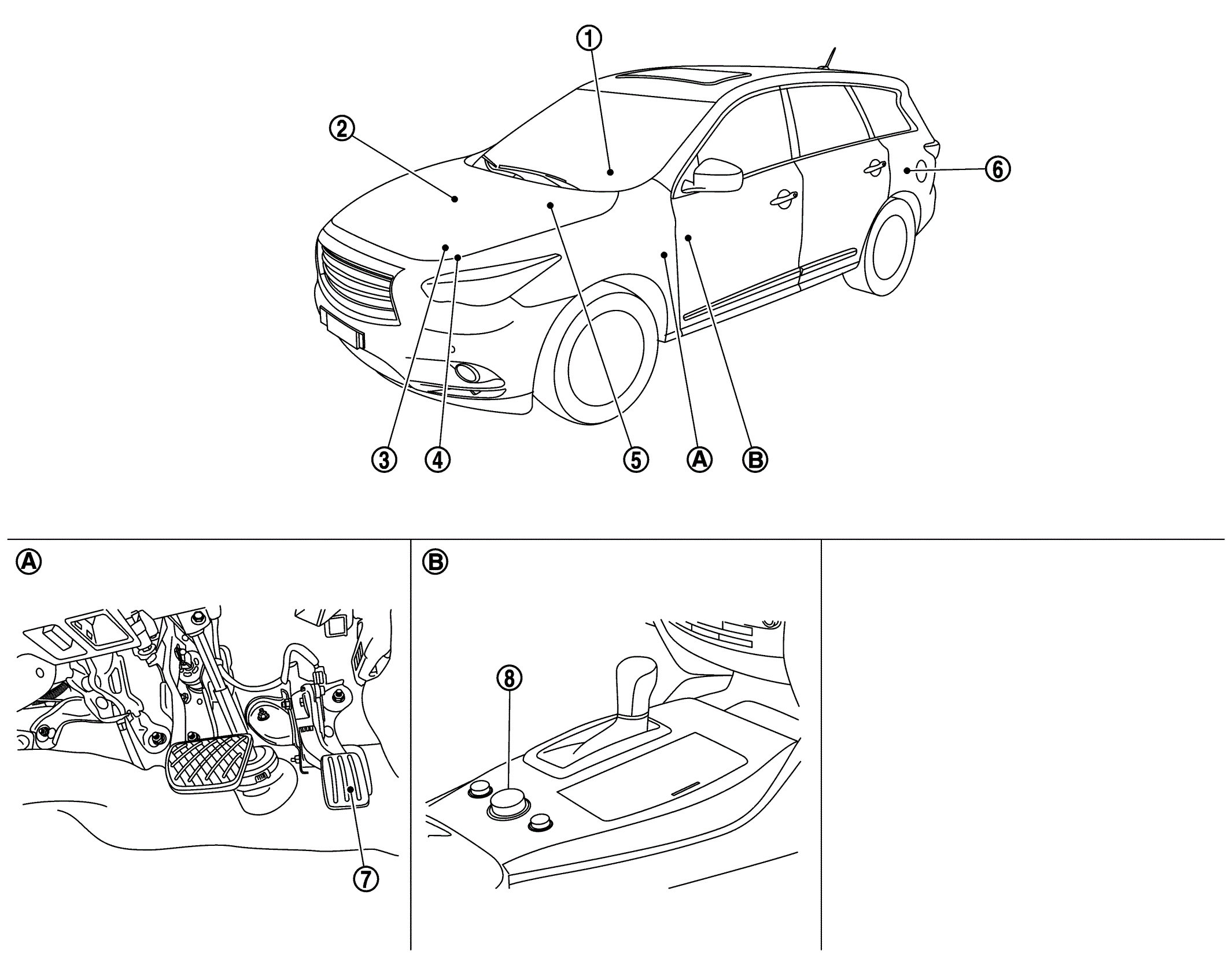

Component Parts Location
| A. | Around the pedal | B. | Around the selector lever |
| No. | Part | Description |
|---|---|---|
| 1 | Combination meter | Displays a mode state on the vehicle information display, based on the mode state received from the A/C auto amp. For details of installation position, refer to COMPONENT PARTS LOCATION . |
| 2 | ABS actuator and electric unit | Activates the ABS actuator, according to an active trace control function control signal received from the ADAS control unit. For details of installation position, refer to COMPONENT PARTS LOCATION (without ICC) or COMPONENT PARTS LOCATION (with ICC). |
| 3 | TCM |
|
| 4 | ECM | Receives a mode signal from TCM and controls throttle angle characteristics. For details of installation position, refer to COMPONENT PARTS LOCATION (except for Mexico) . |
| 5 | A/C auto amp. | Receives an ON/OFF state of each mode from the drive mode select switch and transmits the switch signal to TCM, combination meter and ADAS control unit via CAN communications. For details of installation position, refer to COMPONENT PARTS LOCATION . |
| 6 | ADAS control unit |
|
| 7 | Accelerator pedal actuator | Applies reaction force to the accelerator pedal, based on an accelerator pedal reaction force control signal received from the ADAS control unit. |
| 8 | Drive mode select switch | Outputs an ON/OFF state of STANDARD, SPORT, ECO, or SNOW mode to the A/C auto amp. |
