Bulb Check Action And Fail - Safe Indication.

Vehicle condition/Driver's operation Blind Spot Warning/Blind Spot Intervention
indicator
Warning
buzzer
Indication on the combination meter

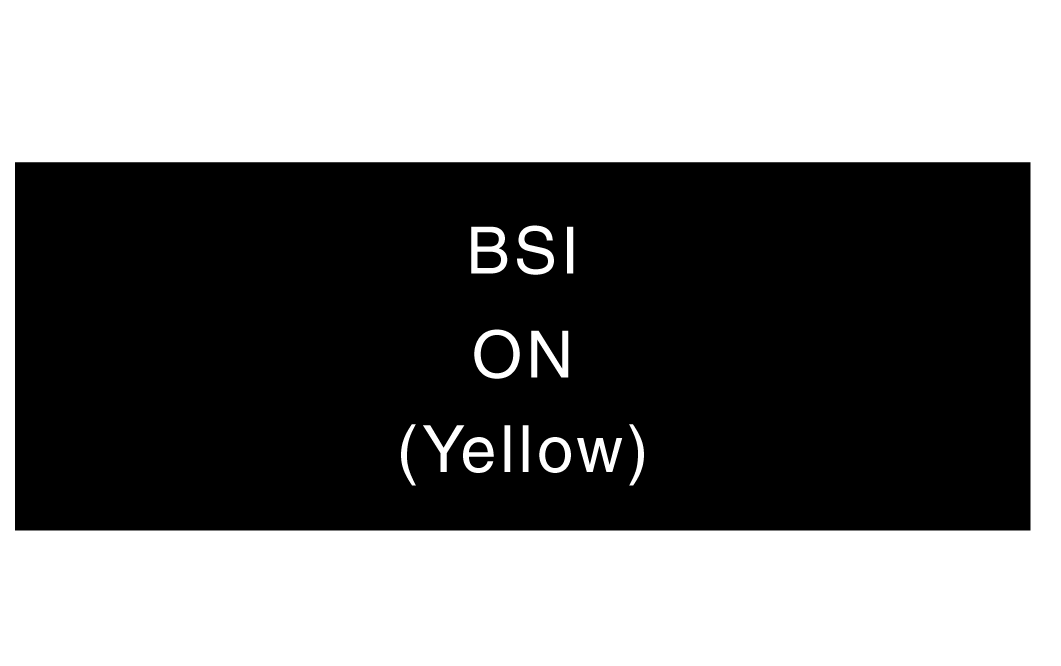

When DTC is detected OFF Beep
GNSALOIA0137GB-137Courtesy of NISSAN NORTH AMERICA, INC.
When radar blockage is detected OFF Beep Unavailable: Side Radar Obstruction
When the camera detects that the interior temperature is high OFF Beep Unavailable: High Cabin Temp.

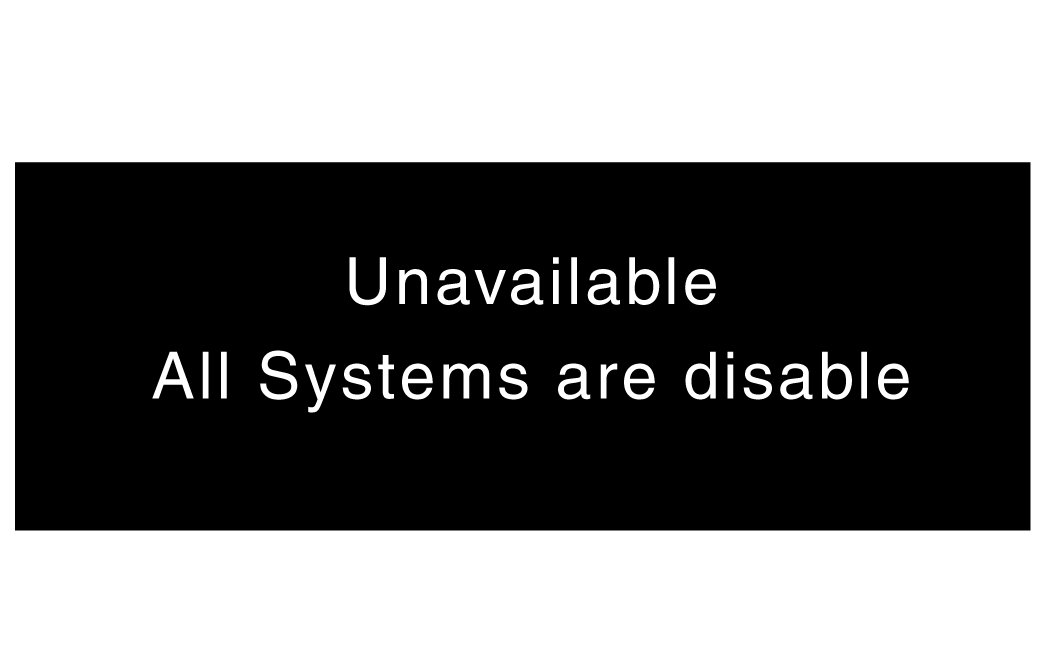

When the dynamic driver assistance switch is turned ON with settings of DCA system, LDP system and Blind Spot Intervention system OFF OFF - Blink (Approx. 3 sec.)
GNSALOIA0132GB-132Courtesy of NISSAN NORTH AMERICA, INC.

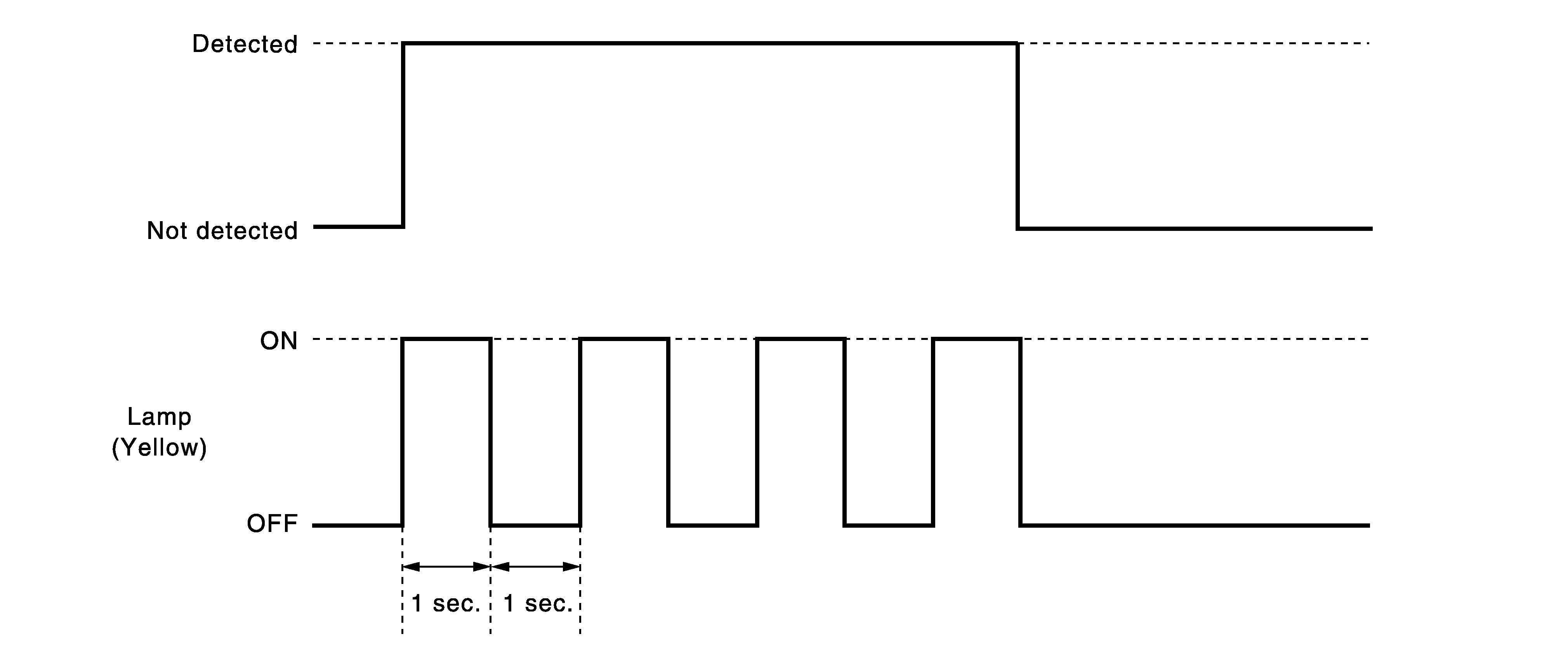

: Blinking cycle when the side radar blockage condition or lane camera unit high temperature condition

G07018625Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

Time shown in illustration is approximate time.
