Function Description
- The Backup Collision Intervention system can help alert the driver of approaching vehicles or rear objects when the driver is backing out of a parking space.

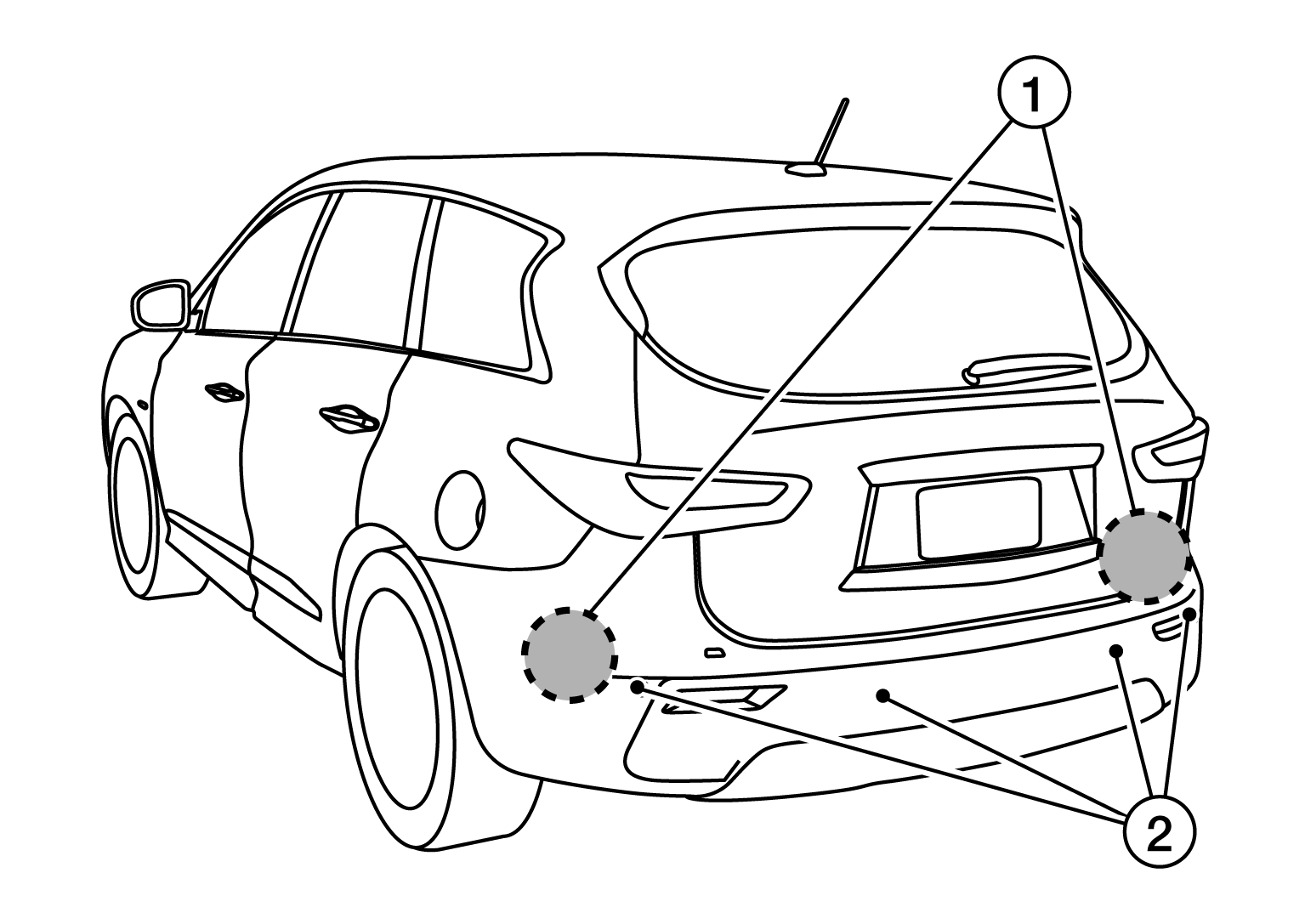

- The BCI system comprise of to main detection systems. The side radars (1), and the four sonar sensors (2) mounted on the rear bumper cover as illustrated.
- The BCI system operates at speeds below 5 MPH (8 km/h) whenever the vehicle is in reverse.
- The BCI system uses the two side radars installed near the rear bumper to detect approaching vehicles and rear obstacles.

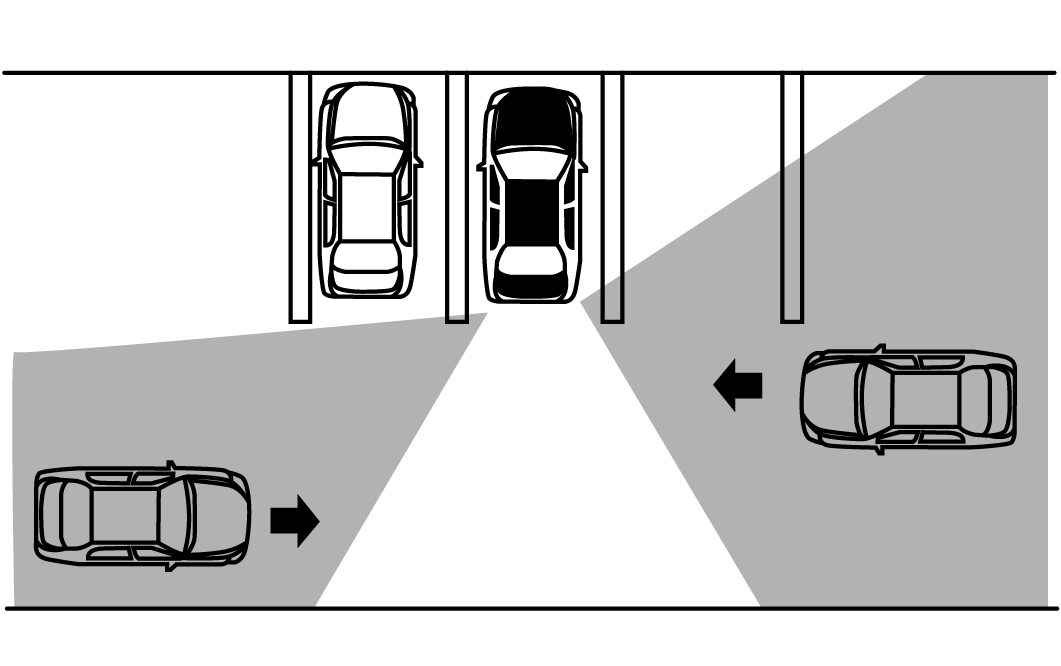

- The side radar can detect vehicles on either side of vehicle within the detection zone shown as illustrated.
- The radar sensors detect the approaching vehicle from up to approximately 49 feet (15 m) away.

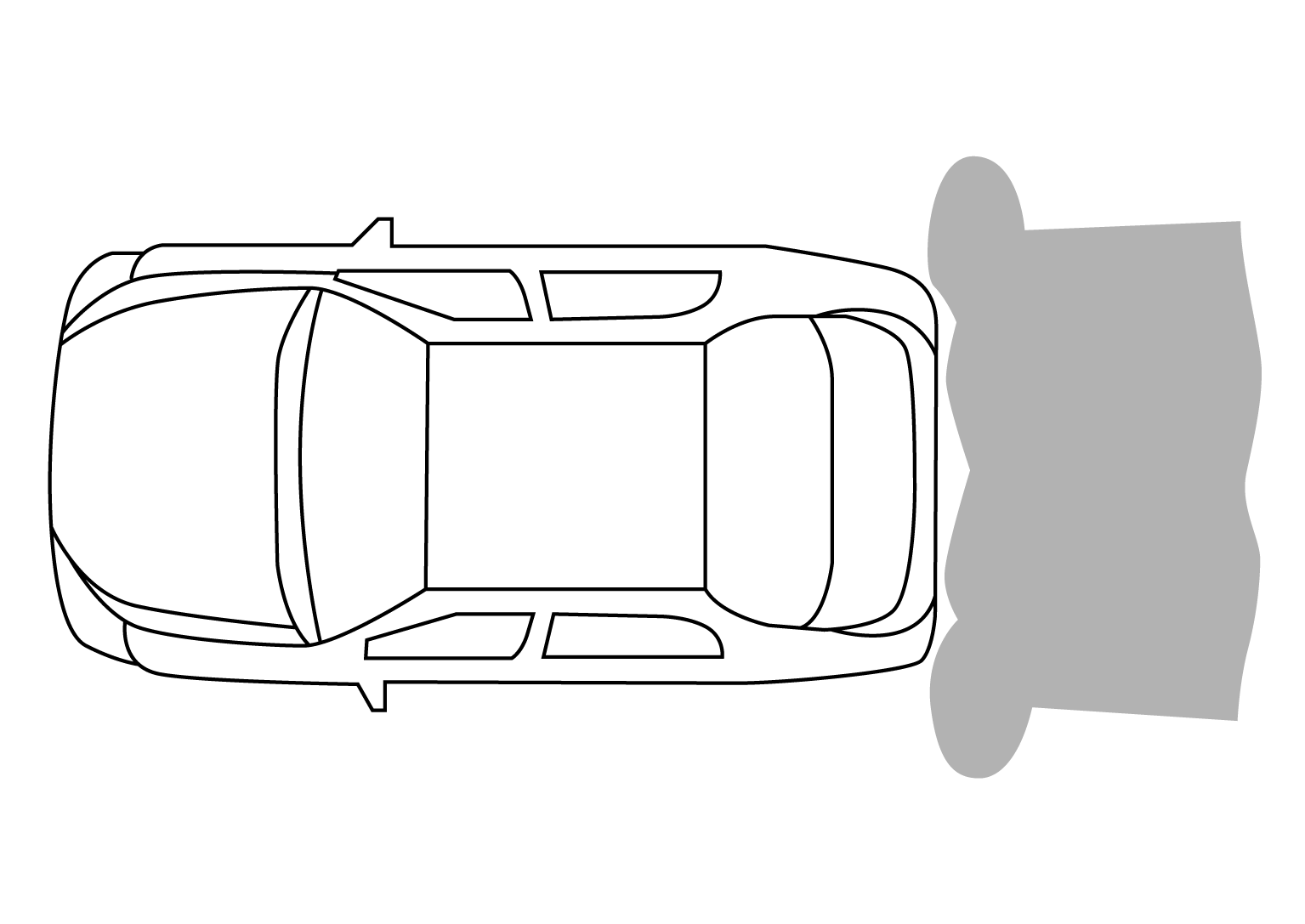

- The sonar sensors can detect rear obstacles of up to approximately 4.9 feet (1.5 m).
- If the radar detects a vehicle approaching from the side or the sonar detects close objects in the rear, the system gives visual and audible warnings, and applies the brake for a moment when the vehicle is moving backwards. If the driver's foot is on the accelerator pedal, the system pushes the accelerator upward before applying the brake. If the driver continues to press the accelerator, the system will not engage the brake.
The radar sensors may not be able to detect certain objects such as:
- Pedestrians, bicycles, animals
- A vehicle that is passing at a speed greater than approximately 15 MPH (24 km/h)
- The radar sensors may not detect approaching vehicles in certain situations:
| Examples of certain situations | Illustration of certain situations |
|---|---|

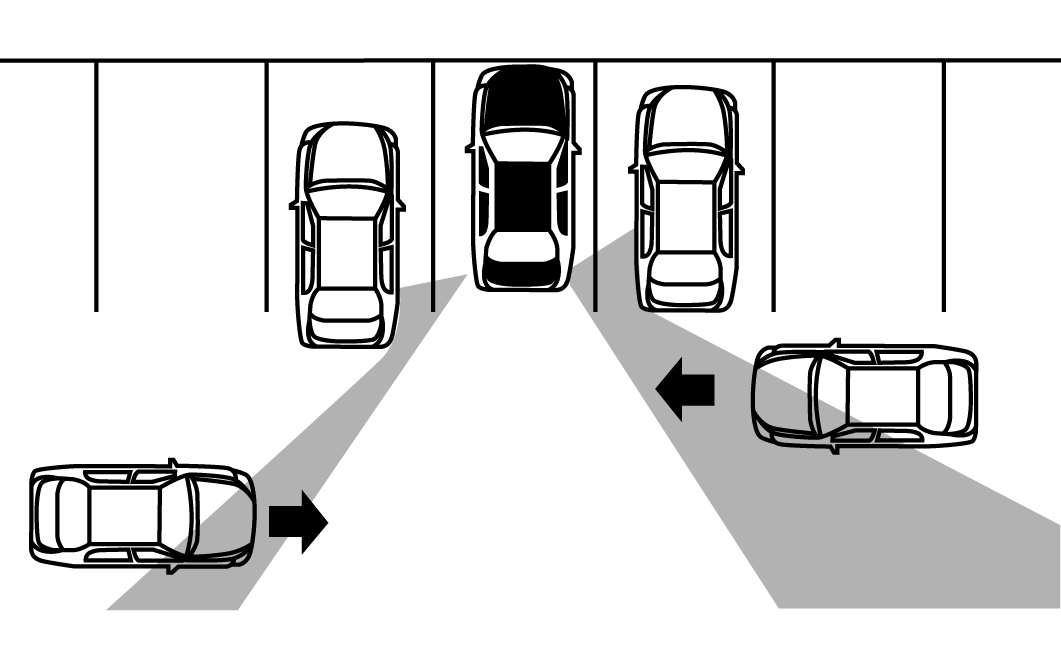

| When the vehicle parked aside obstruct the beam of the radar sensor | |

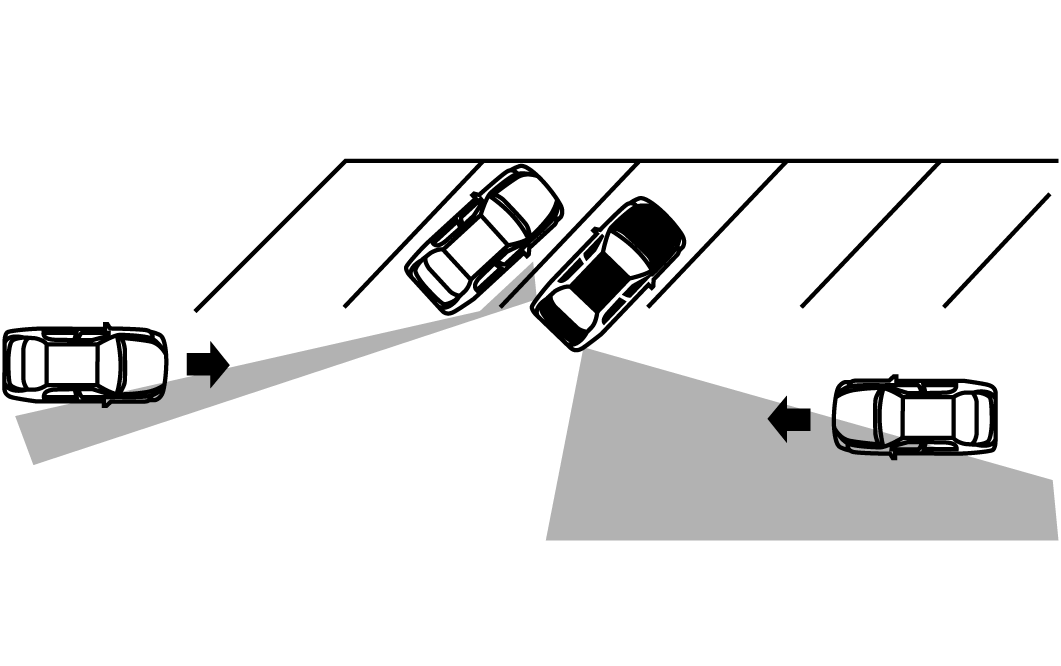

| When the vehicle is parked in an angled parking space | |

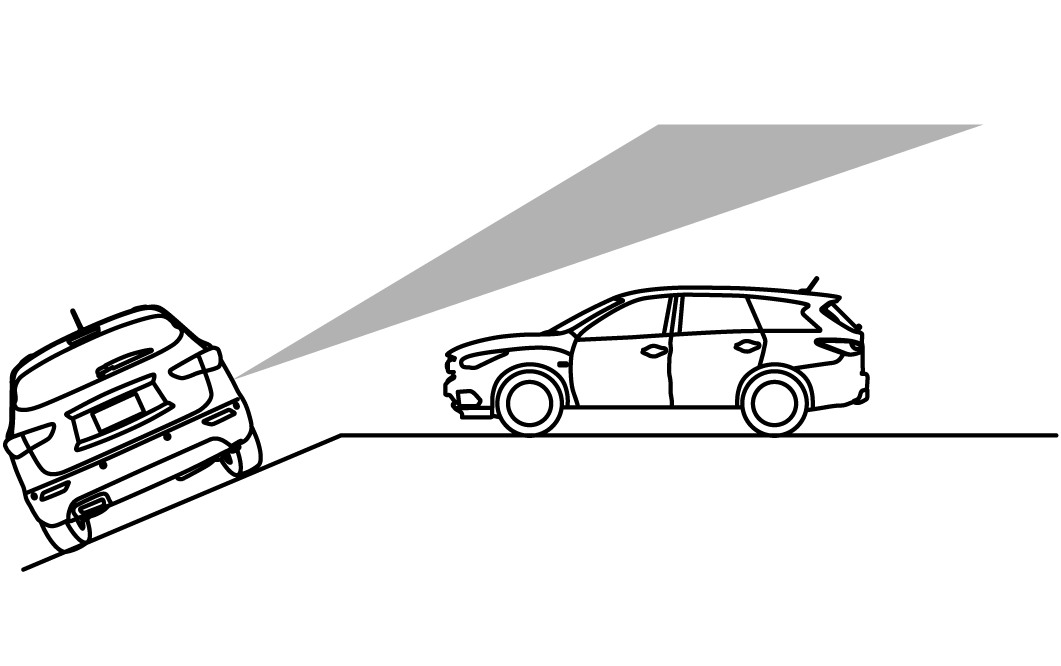

| When the vehicle is parked on an inclined ground | |

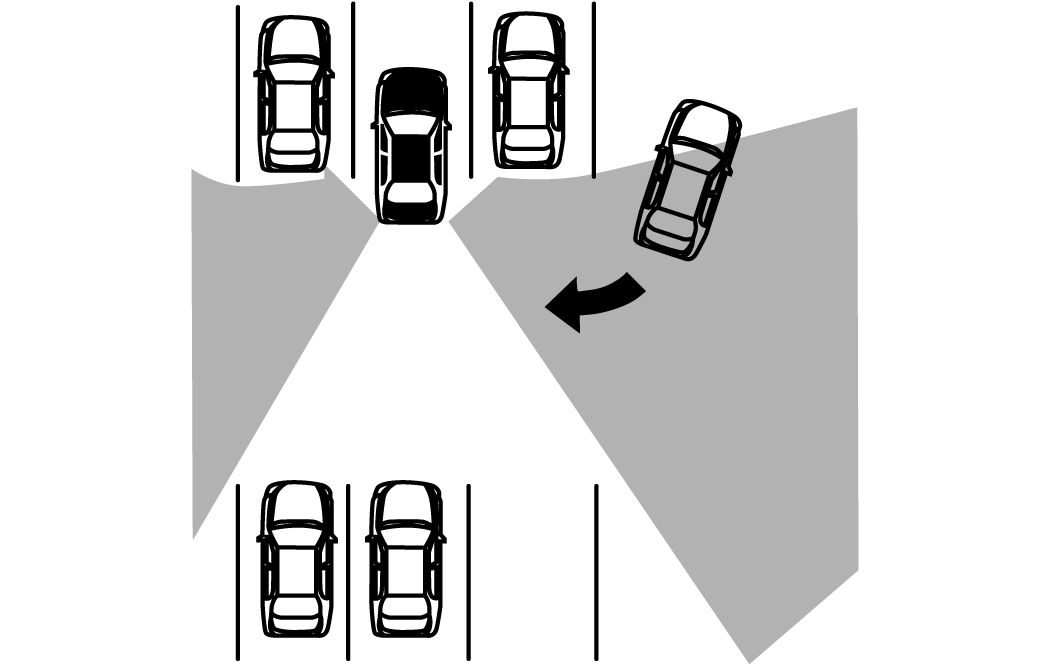

| When the vehicle turns around into your vehicle's aisle | |
| When the angle formed by your vehicle and approaching vehicle is small |
