Exploded View With Torque Specifications

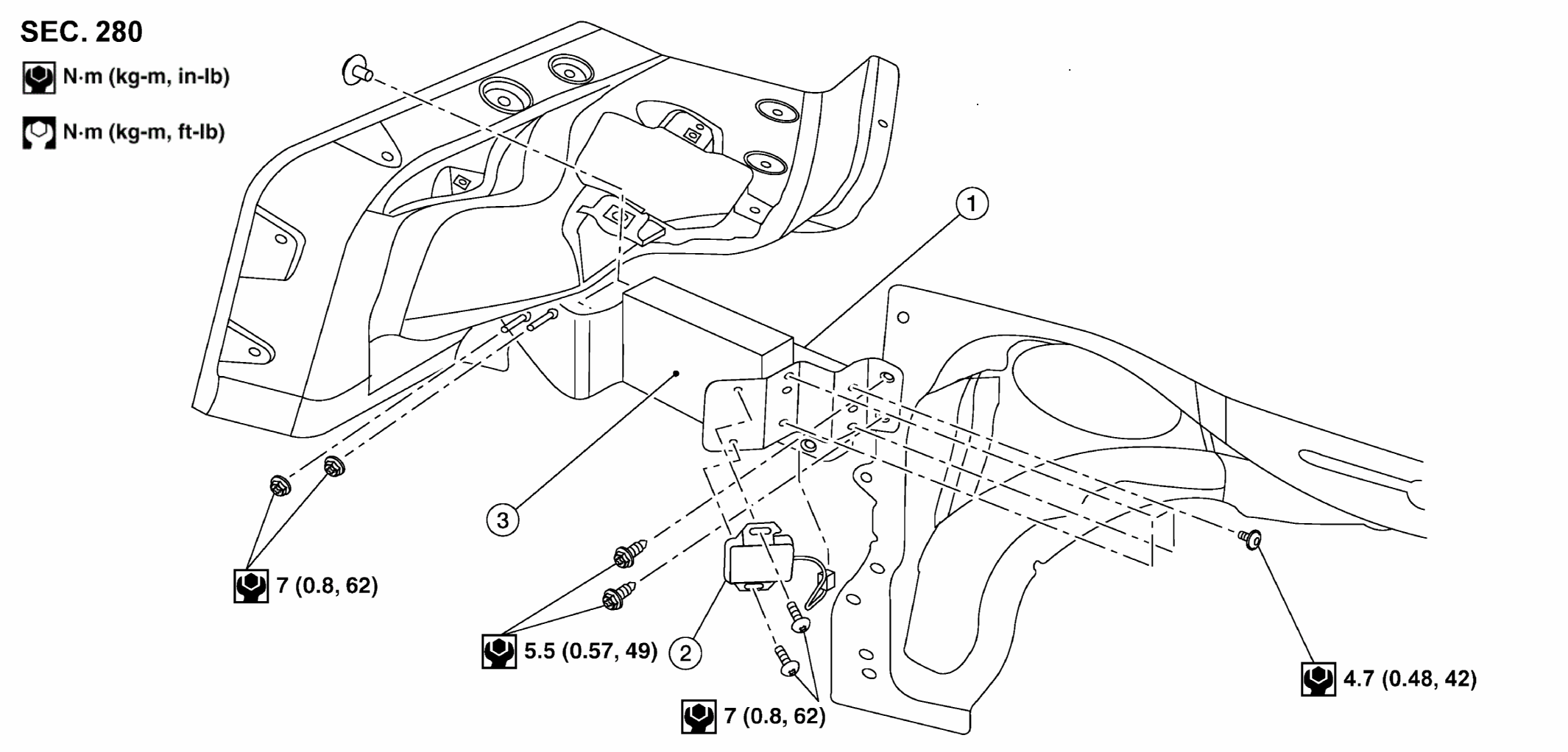

Fig 1: Bluetooth® Control Unit With Torque Specifications
GNSAWNIA4249ZZ-249Courtesy of NISSAN NORTH AMERICA, INC.
1. Bluetooth® control unit 2. Bluetooth® antenna 3. Satellite radio tuner (if equipped)
