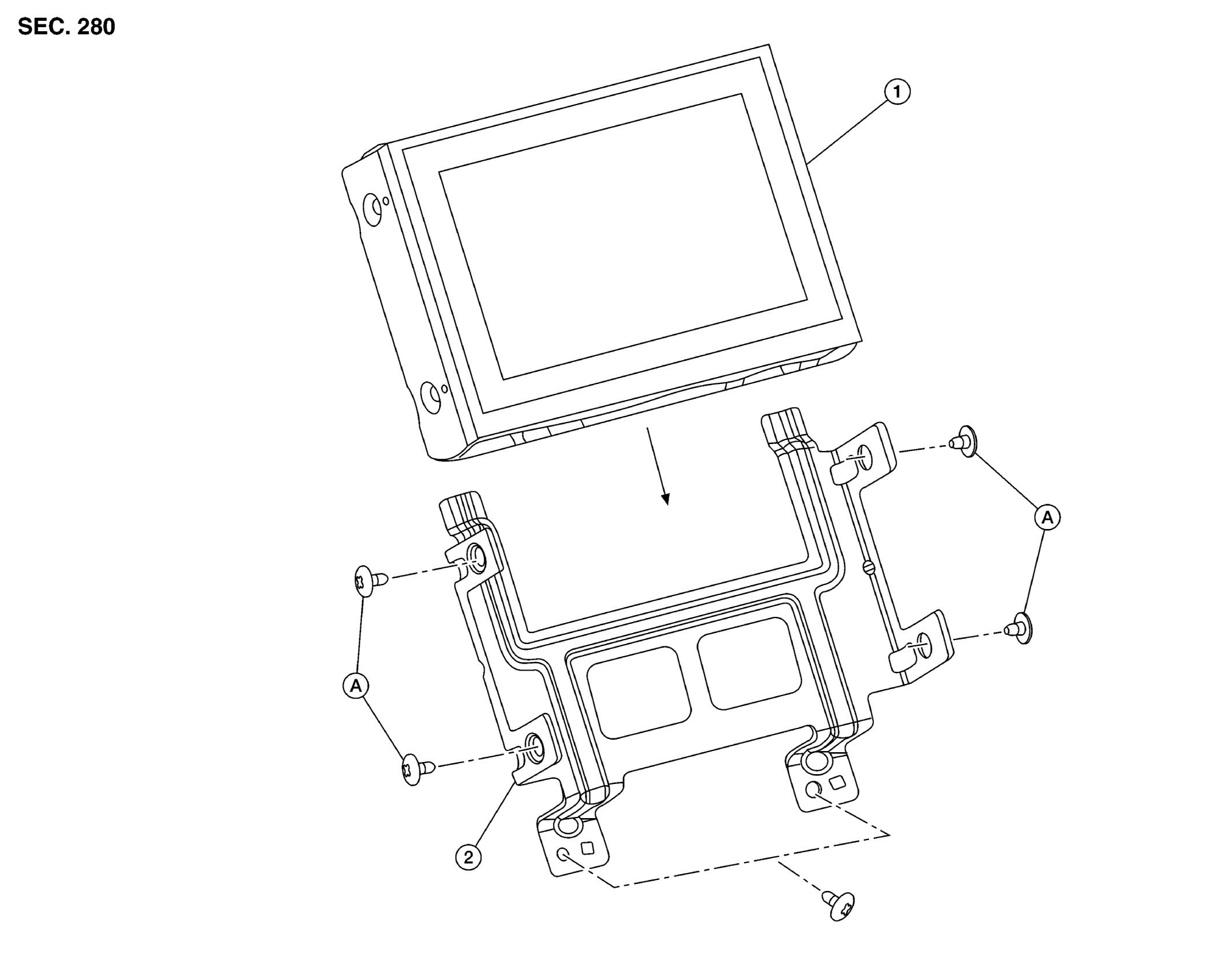

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Display unit
2.
Display unit bracket
A.
Display unit screws
Courtesy of NISSAN NORTH AMERICA, INC.
