Operation Procedure

  1. Turn ignition switch to ACC or ON.
  2. Wait for the Bluetooth® system to complete initialization. This may take up to 20 seconds.

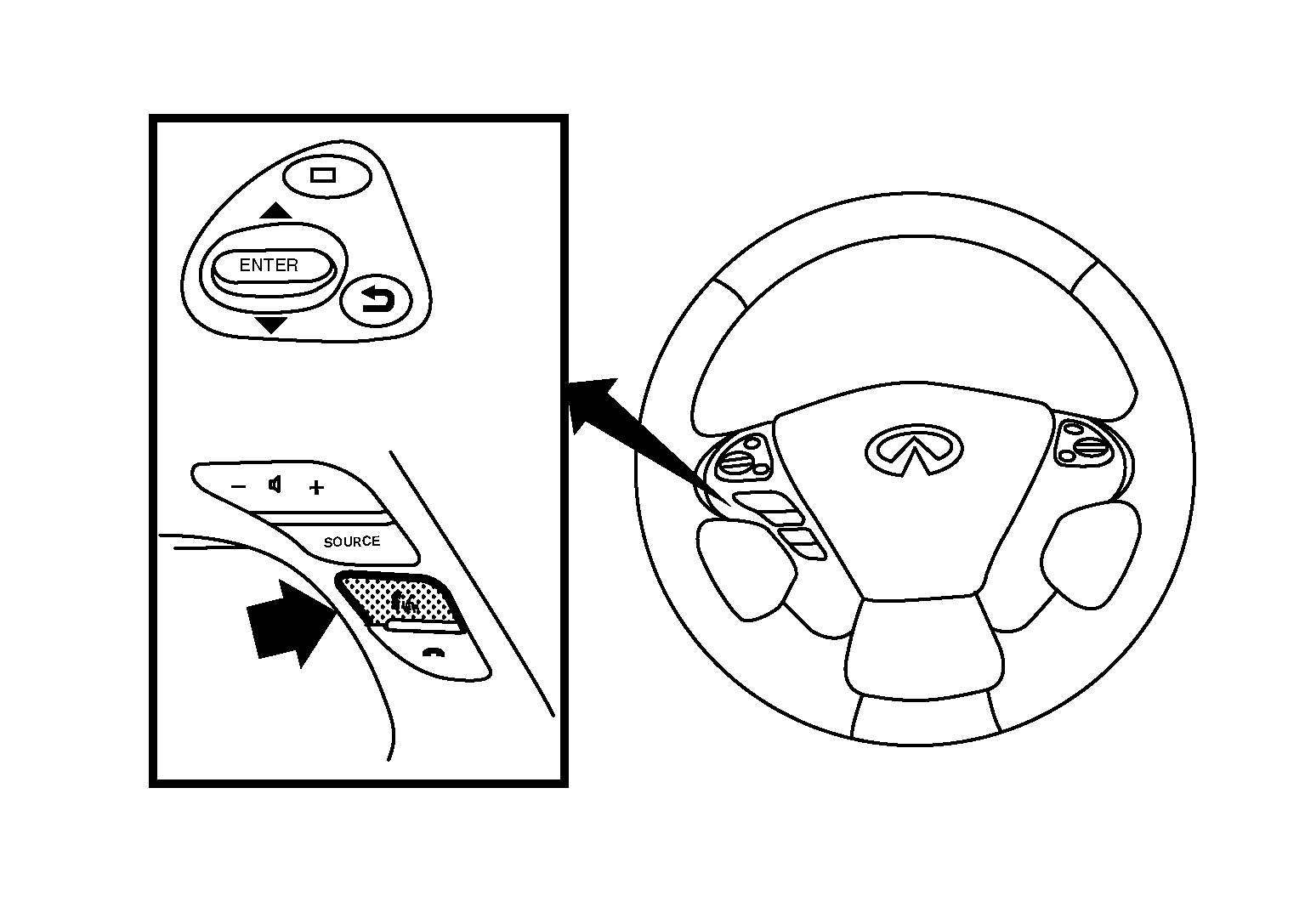

  3. Press and hold the steering switch TELPTT (PHONE/SEND) button for at least 5 seconds. The Bluetooth® system will begin to play a verbal prompt.
    GNSAWNIA3773ZZ-773Courtesy of NISSAN NORTH AMERICA, INC.

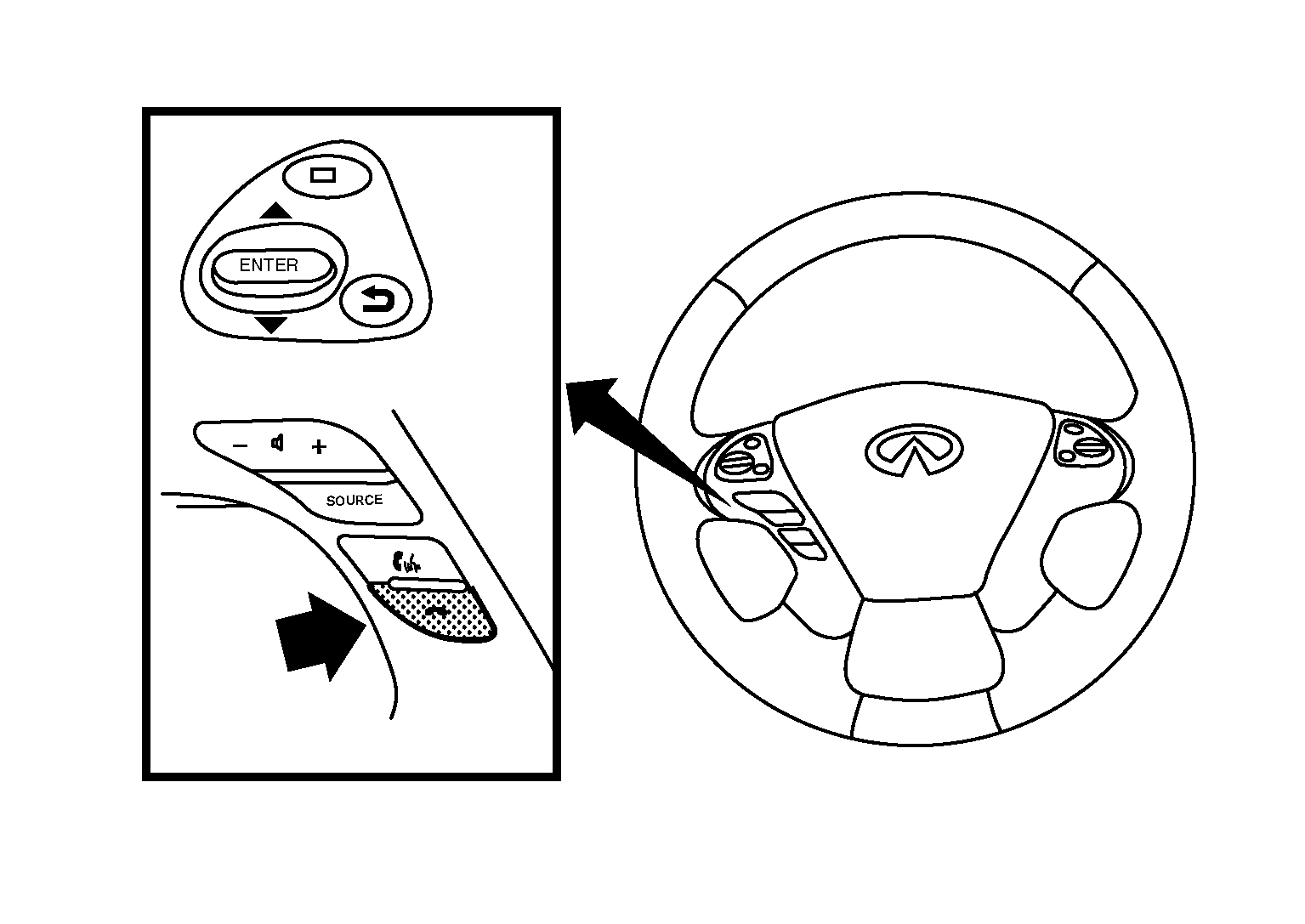

  4. While the prompt is playing, press and hold the steering switch TEL_END (PHONE/END) button until you hear the "Diagnostics mode" prompt. The Bluetooth® system will sound a 5-second beep.
    GNSAWNIA3774ZZ-774Courtesy of NISSAN NORTH AMERICA, INC.
  5. While the beep is sounding, press and hold the steering switch TEL_END (PHONE/END) button again until you hear prompts.
  6. The Bluetooth® system has now entered into the diagnostic mode. Results of the diagnostic checks will be verbalized to the technician. Refer to WORK FLOW .
  7. After the failure records are reported, an interactive microphone test will be performed. Follow the voice prompt. If the microphone test fails, refer to WORK FLOW .
