Camera Cont.

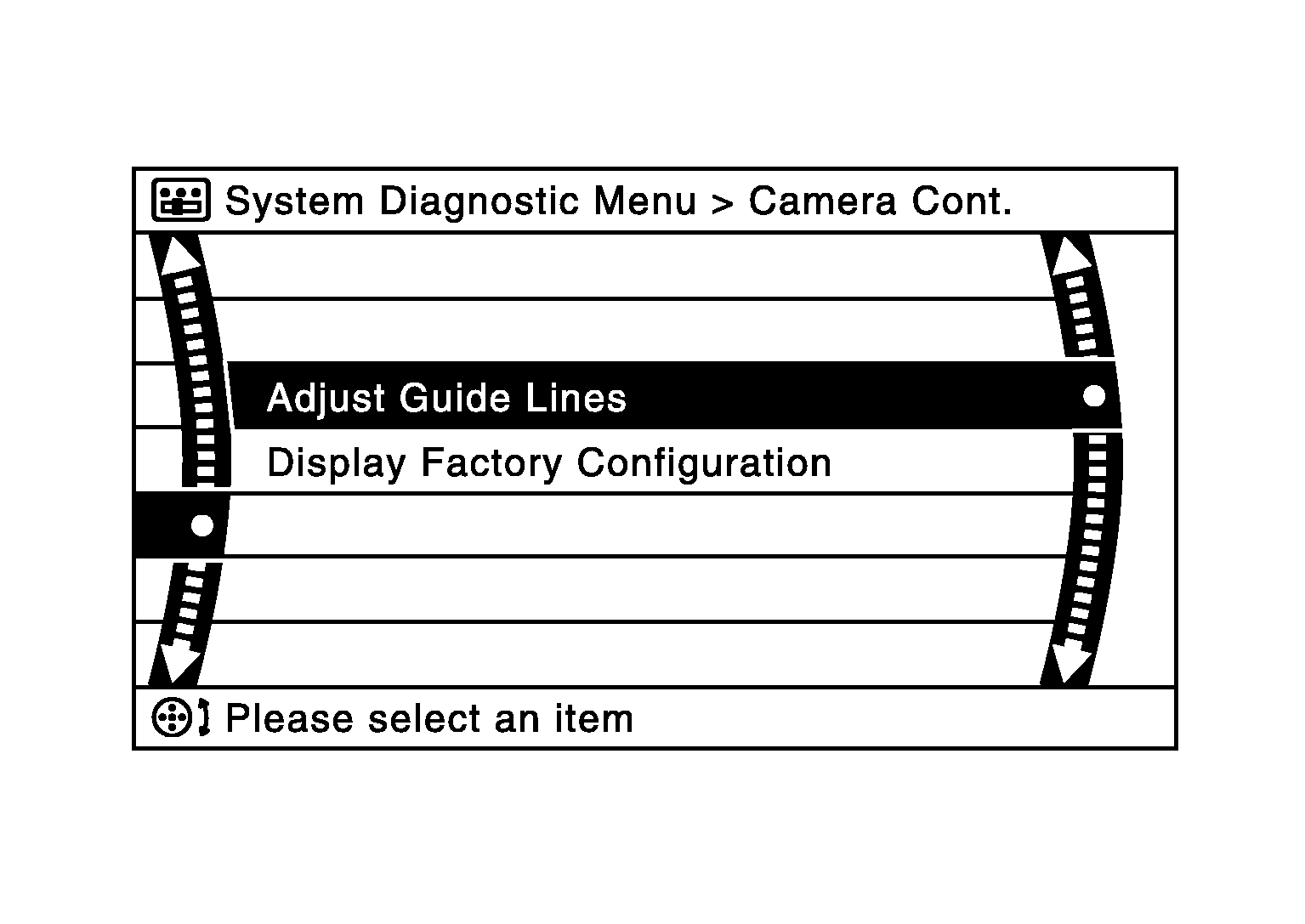

The two functions of "Correct Draw Line of Rear view Cam", "Confirm Configuration" are available.

Courtesy of NISSAN NORTH AMERICA, INC.

Adjust Offset of Rear view Camera

• Use this mode to adjust the guide line display position of the rear view monitor if necessary after removing the rear view monitor camera.

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  After the adjustment, never perform other operations for one minute.

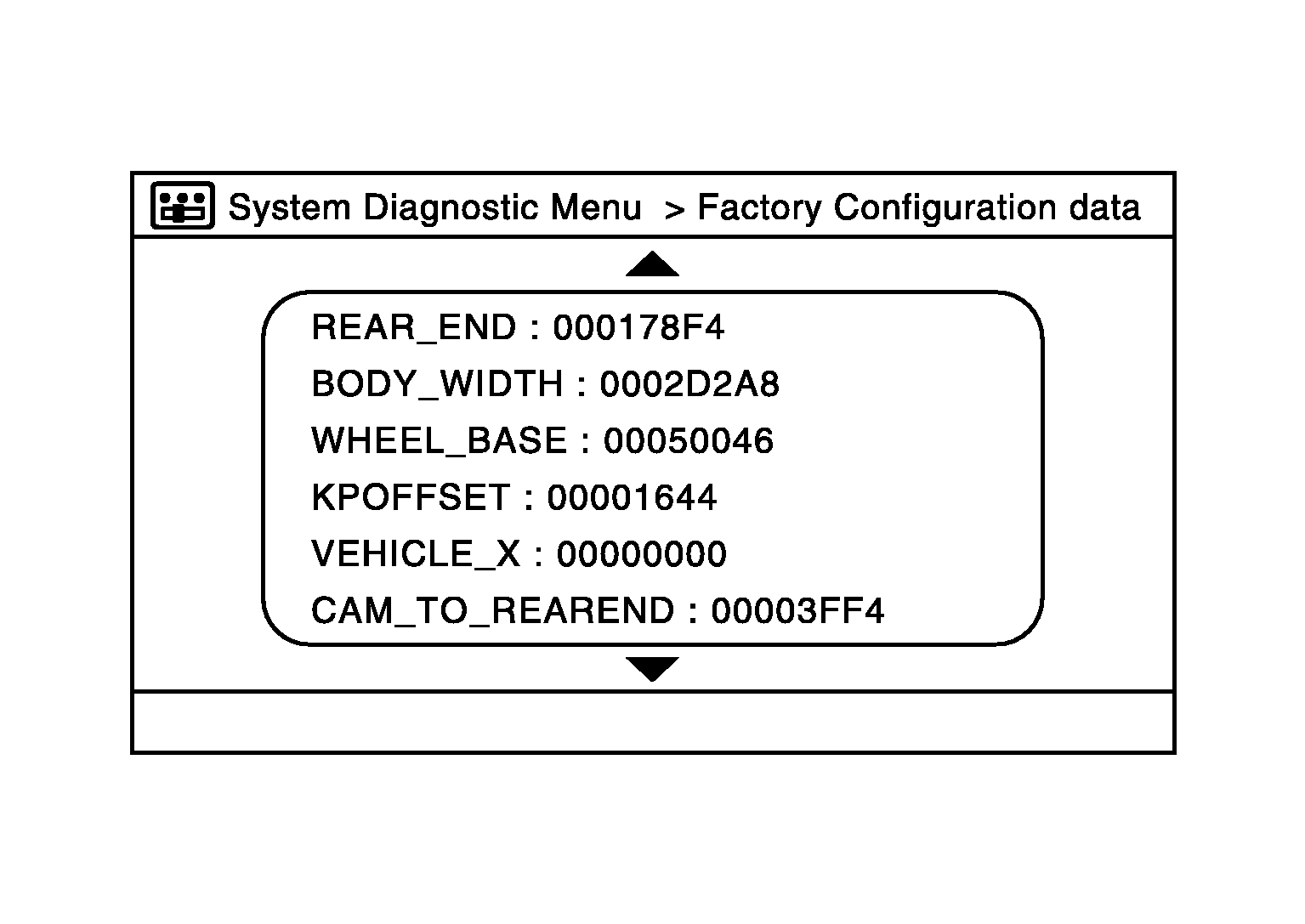

Factory Configuration Confirmation

• Configuration stored in the AV control unit can be checked.

  Courtesy of NISSAN NORTH AMERICA, INC.
