Controller (MULTIFUNCTION Switch)

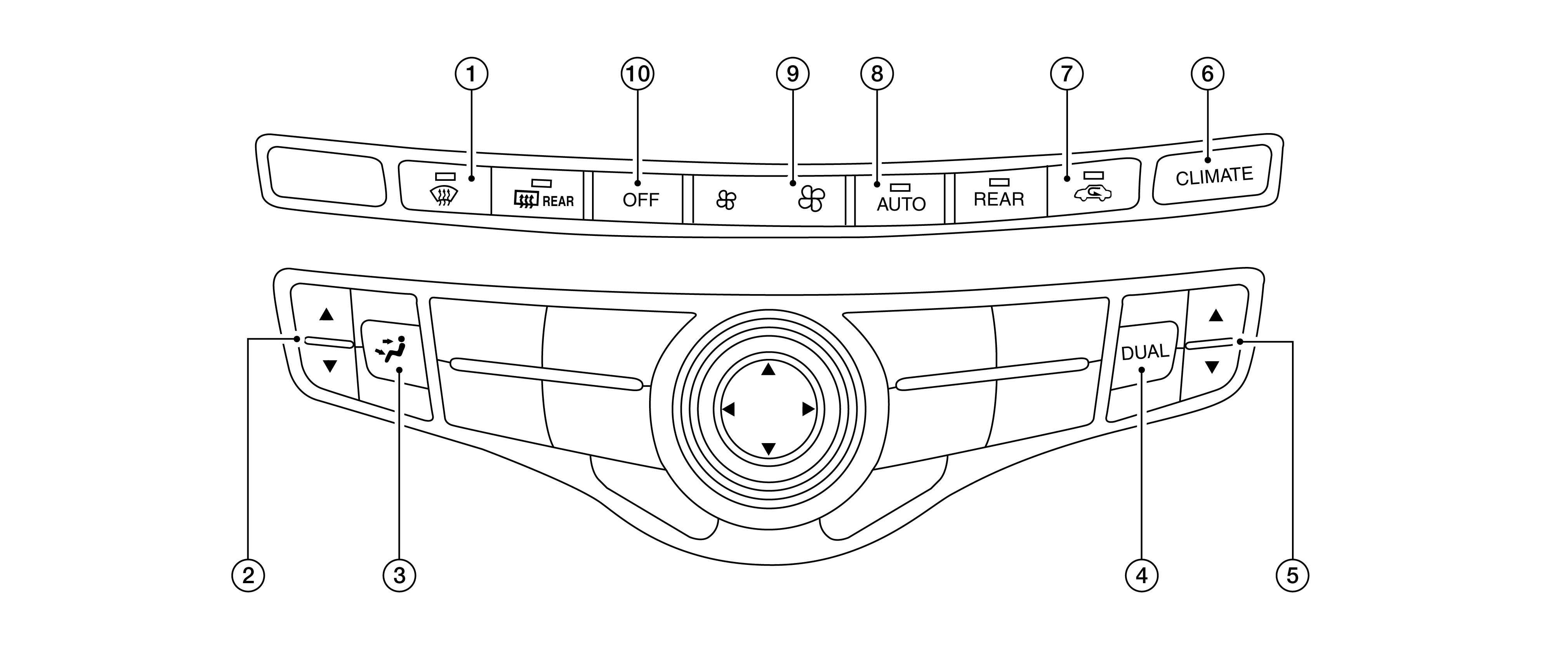

G09425813Courtesy of NISSAN NORTH AMERICA, INC.
1. DEF switch 2. Temperature control (Driver side) 3. MODE switch
4. DUAL switch 5. Temperature control dial (passenger side) 6. Climate switch
7. Intake switch 8. AUTO switch 9. Fan switch
10. OFF switch
