Front Controller Operation

A/C DISPLAY

Rear air conditioning system state is indicated on the display unit.
When REAR switch is pressed while air conditioning system is in the ON position, the display unit changes to state indication display (rear control mode) of rear air conditioning system.

Display screen

G07022366

Courtesy of NISSAN NORTH AMERICA, INC.

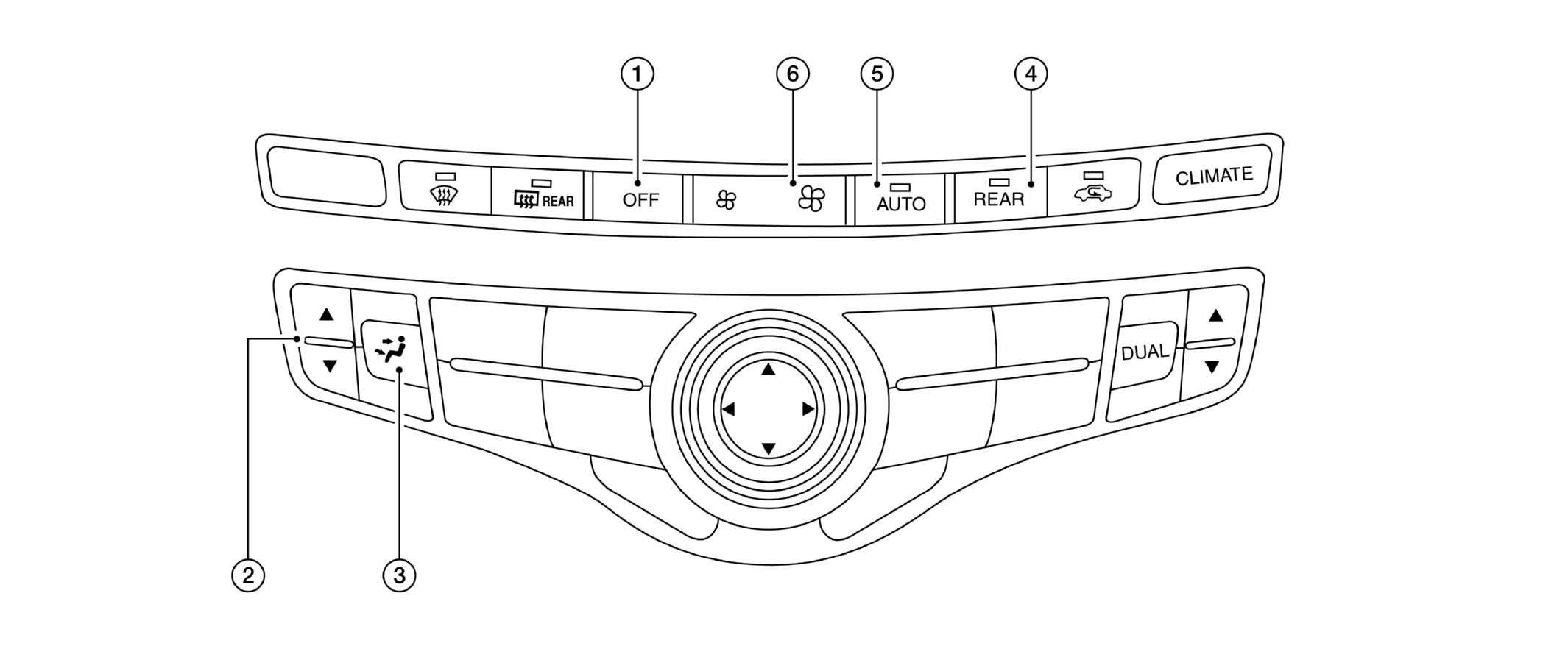

CONTROLLER (MULTIFUNCTION SWITCH)

G09425815

Courtesy of NISSAN NORTH AMERICA, INC.

1.	OFF switch	2.	Temperature control (Driver side)	3.	MODE switch
4.	REAR switch	5.	AUTO switch	6.	Fan switch

SWITCH OPERATION

AUTO switch	Turns the switch indicator lamp and "AUTO" indicator on the display unit ON, and then rear air conditioning system becomes the following state. Air outlet: Automatic control Blower fan: Automatic control Compressor: ON
Fan switch (UP/DOWN)	Blower fan speed is manually controlled with these switches. Seven speeds are available for manual control (as shown on the display screen). NOTE: When fan switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
MODE switch	Selects air outlet sequentially from VENT → B/L → FOOT → VENT each time. NOTE: When MODE switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
OFF switch	Turns rear air conditioning system OFF. (When rear control mode is ON) When rear air conditioning system turns OFF, air outlet become the automatic control.
REAR switch	Turns the switch indicator lamp and rear control mode on the display unit ON, and then rear air conditioning system becomes the following state. Air outlet: Automatic control Blower fan: Automatic control Compressor: ON Rear control mode is released when switch is pressed again (rear air conditioning system operates continuously).
Temperature control switch (Driver side)	Setting temperature is selected using this switch within a range between 18°C (60°F) and 32°C (90°F) at a rate of 0.5°C (1.0°F) per adjustment. Press: Setting temperature increases Press: Setting temperature decreases NOTE: When air conditioning system is OFF, setting temperature can be selected only while air conditioning system status screen [only when MODE switch (driver side) is pressed] is indicated on display.
