Switch And Their Control Function

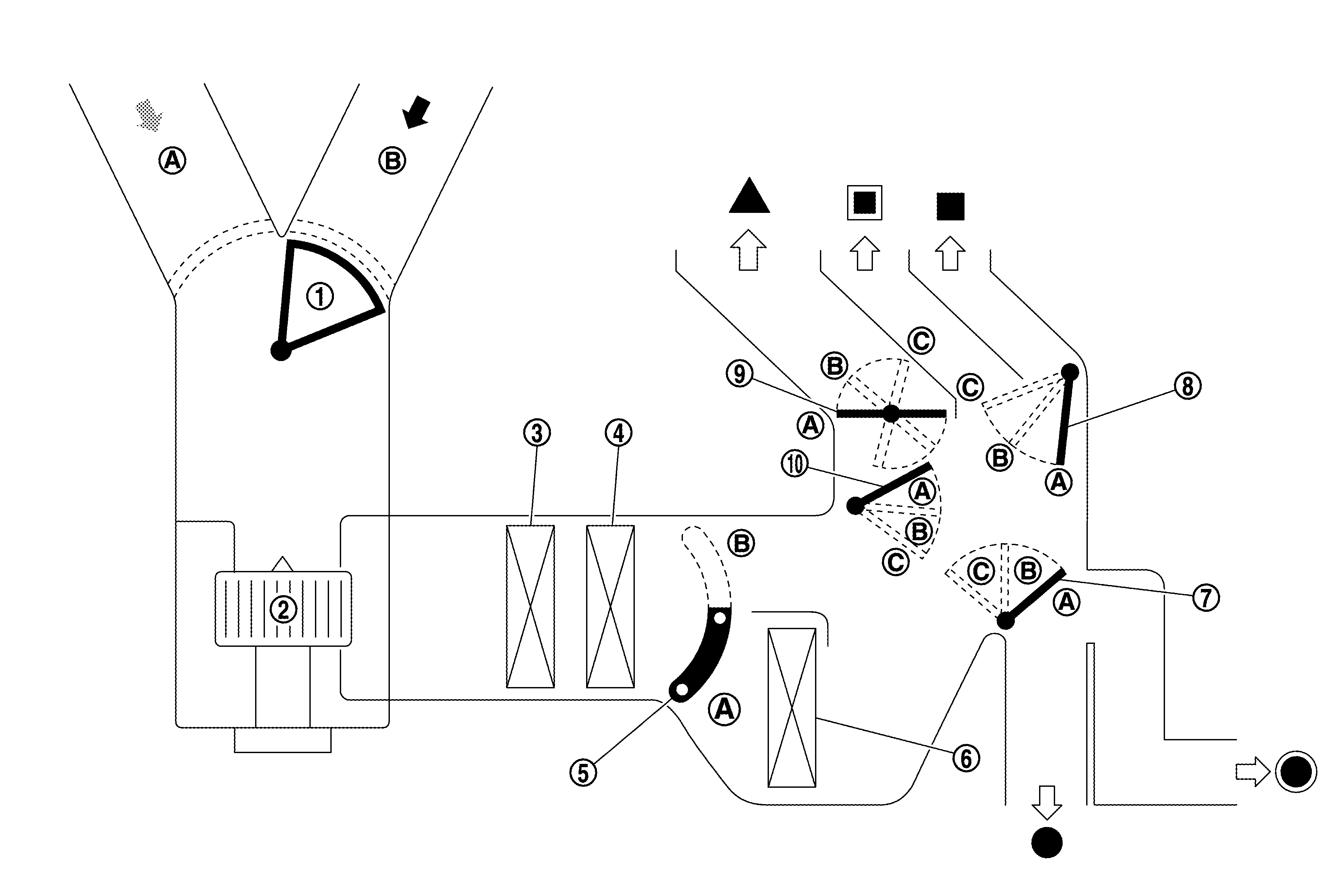

| 1. | Intake door | 2. | Front blower motor | 3. | In - cabin microfilter |
| 4. | Front evaporator | 5. | Air mix door (front) | 6. | Front heater core |
| 7. | Foot door | 8. | Ventilator door | 9. | Defroster door |
| 10. | Max. cool door | ||||
| Fresh air | Recirculation air | Discharge air | |||
| Defroster | Center ventilator | Side ventilator | |||
| Front foot | Rear foot |
| Switch position | Door position | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Mode door (front) | Intake door | Air mix door (front) | ||||||||
| Ventilator door | Max. cool door | Defroster door | Foot door | (Driver side) | (Passenger side) | |||||
| AUTO switch | AUTO | |||||||||
| MODE switch | A | A | A | A | - | - | - | |||
| B | B | A | B | |||||||
| C | C | B | B | |||||||
| C | B | B | B | |||||||
| DEF switch | C | A | C | C | ||||||
| Intake switch* | - | - | - | - | A | |||||
| B | ||||||||||
| Temperature control switch (Driver side) | DUAL switch: OFF | Full cold [18°C (60°F)] |
- | A | ||||||
| 18.5°C - 31.5°C (61°F - 89 °F) |
AUTO | |||||||||
| Full hot [32°C (90°F)] |
B | |||||||||
| Temperature control switch (Driver side) | DUAL switch: ON | Full cold [18°C (60°F)] |
A | - | ||||||
| 18.5°C - 31.5°C (61°F - 89 °F) |
AUTO | |||||||||
| Full hot [32°C (90°F)] |
B | |||||||||
| Temperature control switch (Passenger side) | Full cold [18°C (60°F)] |
- | A | |||||||
| 18.5°C - 31.5°C (61°F - 89 °F) |
AUTO | |||||||||
| Full hot [32°C (90°F)] |
B | |||||||||
| ON•OFF switch | OFF | C | C | B | B | B | - | |||
* : Inlet status is displayed by indicator during activating automatic control
