Av Control Unit (With Base Audio System) Connector End View (M142)

Connector Color:  GRAY

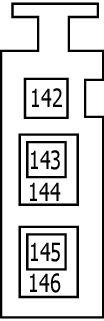

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
142	B	ANT +B
143	B	ANT MAIN
144	SHIELD	SHIELD
145	B	ANT SUB
146	SHIELD	SHIELD

Connector Types:  GT13SH-2/1S-HU
