Av Control Unit (With Base Audio System) Connector End View (M44)

Connector Color:  WHITE

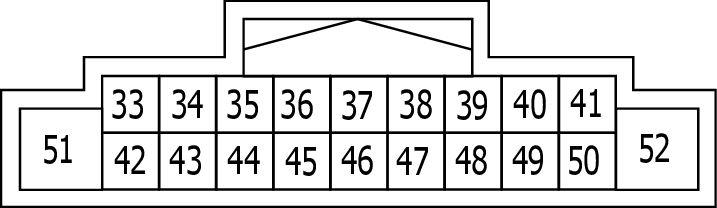

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

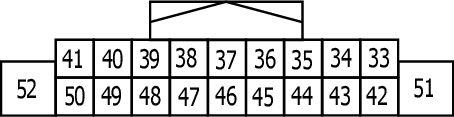

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
33	-	-
34	SB	FR LH SP+
35	V	FR LH SP-
36	BR	RR LH SP+
37	Y	RR LH SP-
38	G	STRG SW
39	P	ACC
40	-	-
41	R	ILL
42	-	-
43	BR	FR RH SP+
44	Y	FR RH SP-
45	L	RR RH SP+
46	SB	RR RH SP-
47	B	STRG SW GND
48	W	STRG SW B
49	-	-
50	-	-
51	Y	+B
52	GR	GND

Connector Types:  NH18FW-CS2
