Av Control Unit (With Base Audio System) Connector End View (M46)

Connector Color:  WHITE

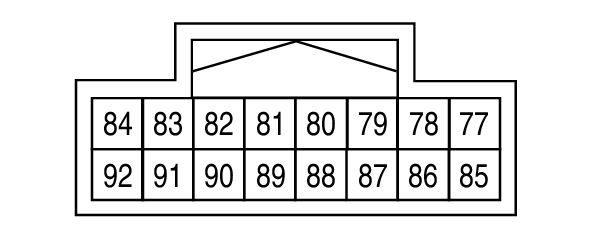

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

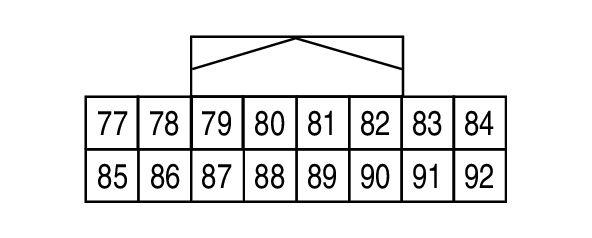

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
77	-	-
78	-	-
79	-	-
80	-	-
81	-	-
82	W	COMP2 IN +
83	W	COMP1 IN +
84	-	-
85	-	-
86	-	-
87	R	CAM 6.2
88	B	CAM GND
89	SHIELD	SHIELD
90	SHIELD	SHIELD
91	B	COMP IN
92	-	-

Connector Types:  TH16FW-NH
