Occupant Classification System Sensor RI Connector End View (B352)

Connector Color:  PINK

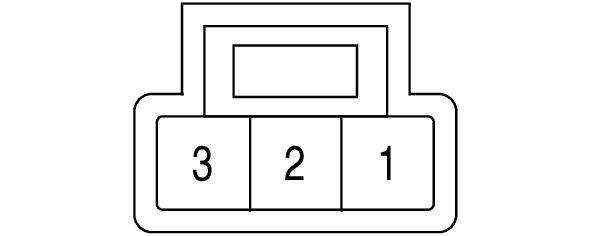

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

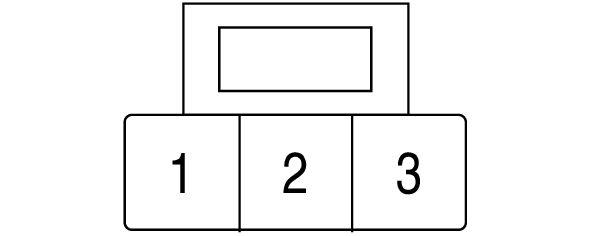

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W/L	LOAD SENSOR REAR INNER GND
2	SB	LOAD SENSOR REAR INNER SIGNAL
3	Y	LOAD SENSOR REAR INNER VCC

Connector Types:  HS3P
