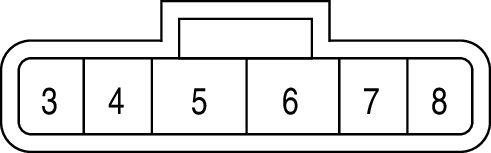

Power Steering Control Module Connector End View (E62)
Connector Color:
BLACK
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
BR |
V IGN |
| 6 |
- |
- |
| 7 |
P |
CAN-L |
| 8 |
L |
CAN-H |
Connector Types:
FEA04FB-FHA2-LC
