Exploded View With Torque Specifications

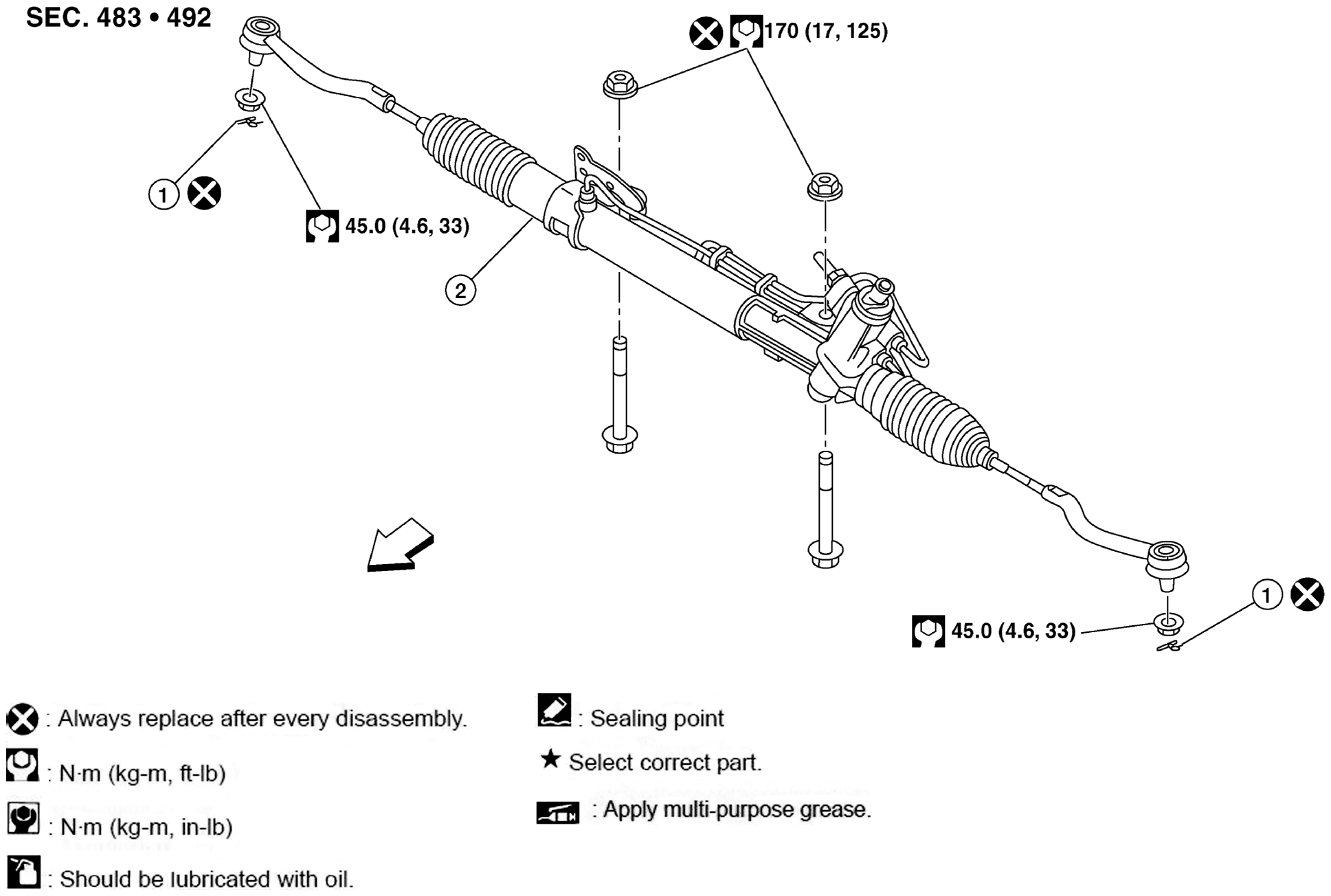

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSAWGIA0335ZZ-335Courtesy of NISSAN NORTH AMERICA, INC.
1. Cotter pin 2. Steering gear ARROW Front
