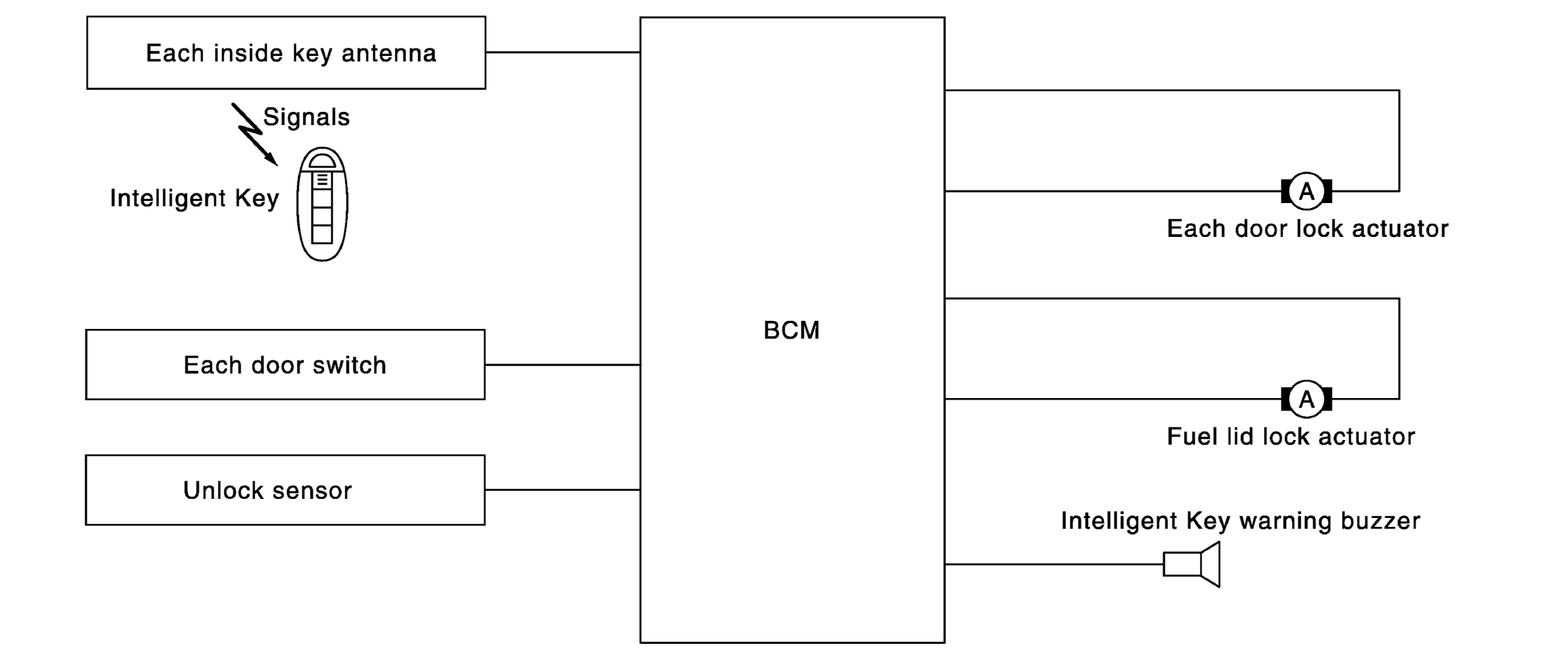

System Description
Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.
| Key remainder function | Operation condition | Operation |
|---|---|---|
| Driver door closed* | Right after driver side door is closed under the following conditions
|
All doors and fuel lid unlock |
| Door is open or closed | Right after all doors are closed under the following conditions
|
|
| Back door is closed | Right after back door is closed under the following conditions
|
|
*:If the door lock knob is shocked by impact during door closing or contacts against baggage, the door lock knob might activate the door locks accidentally, but unlock operation is performed in these cases.
CAUTION:
- The above function operates when the Intelligent Key is inside the vehicle. However, there may be times when the Intelligent Key cannot be detected. This function will not operate when the Intelligent Key is on the instrument panel or in the glove box. Also, this system sometimes does not operate if the Intelligent Key is in the door pocket of the open door.
- Key reminder function is operated when the back door is open/closed and the buzzers sound. If the following operations are performed, the key reminder function is cleared and buzzer sounds are stopped.
- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the back door is closed and the Intelligent Key is not inside the vehicle
- When any door is open
