Wiring Diagram - Vehicle Security System -

GNSJRKWD4767GB-767

Courtesy of NISSAN NORTH AMERICA, INC.

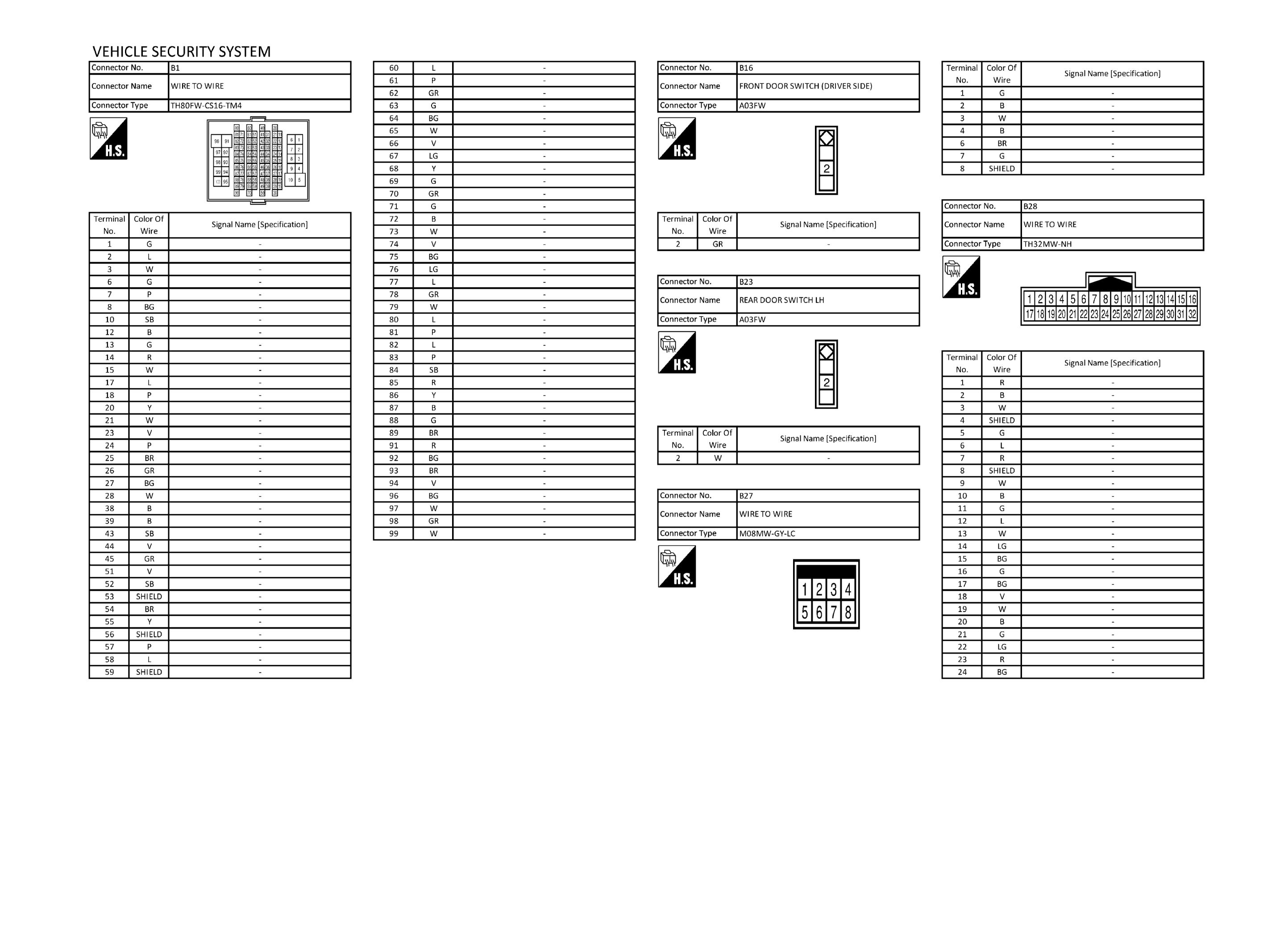

GNSJRKWF0467GB-467

Courtesy of NISSAN NORTH AMERICA, INC.

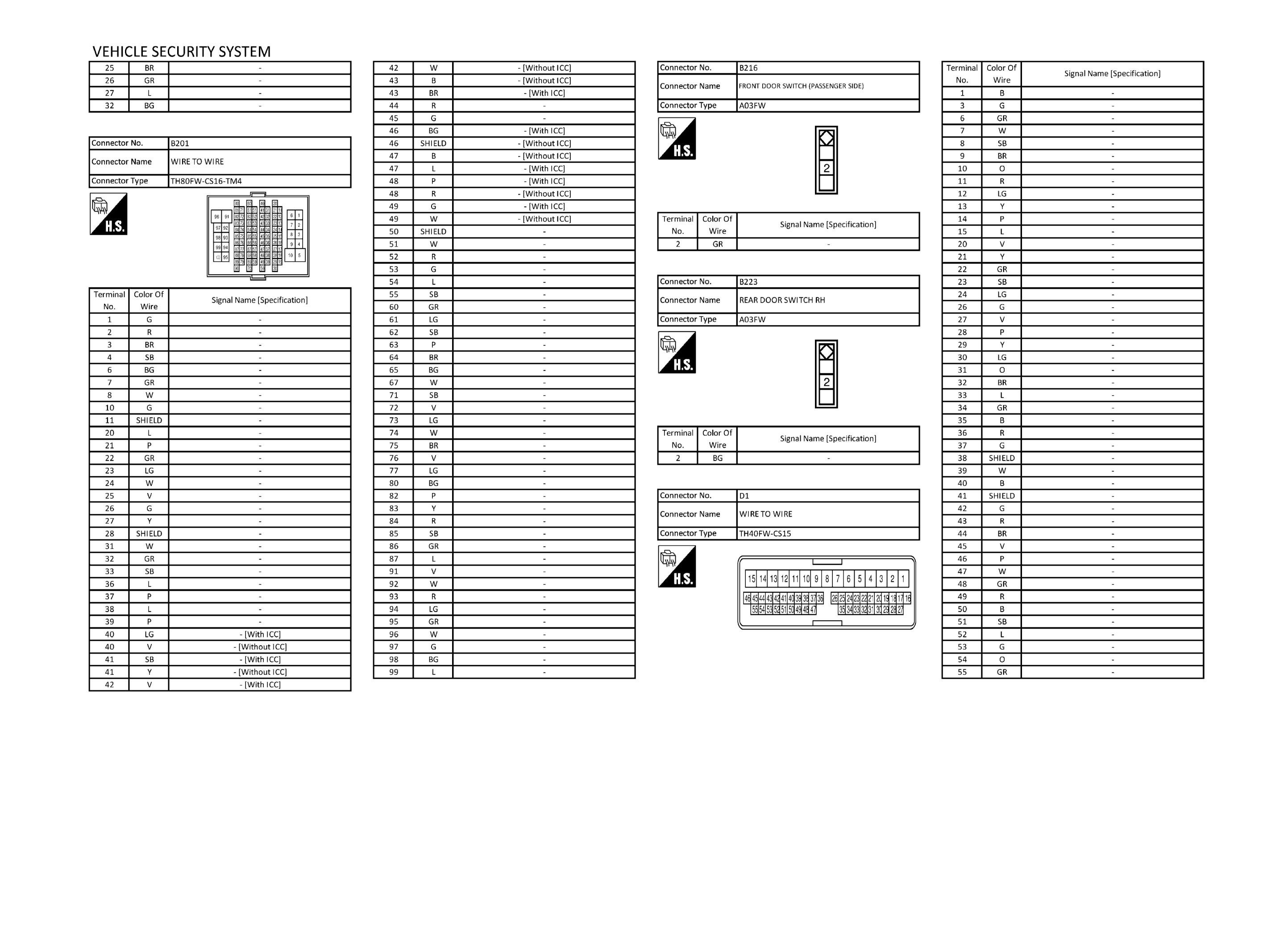

GNSJRKWF0468GB-468

Courtesy of NISSAN NORTH AMERICA, INC.

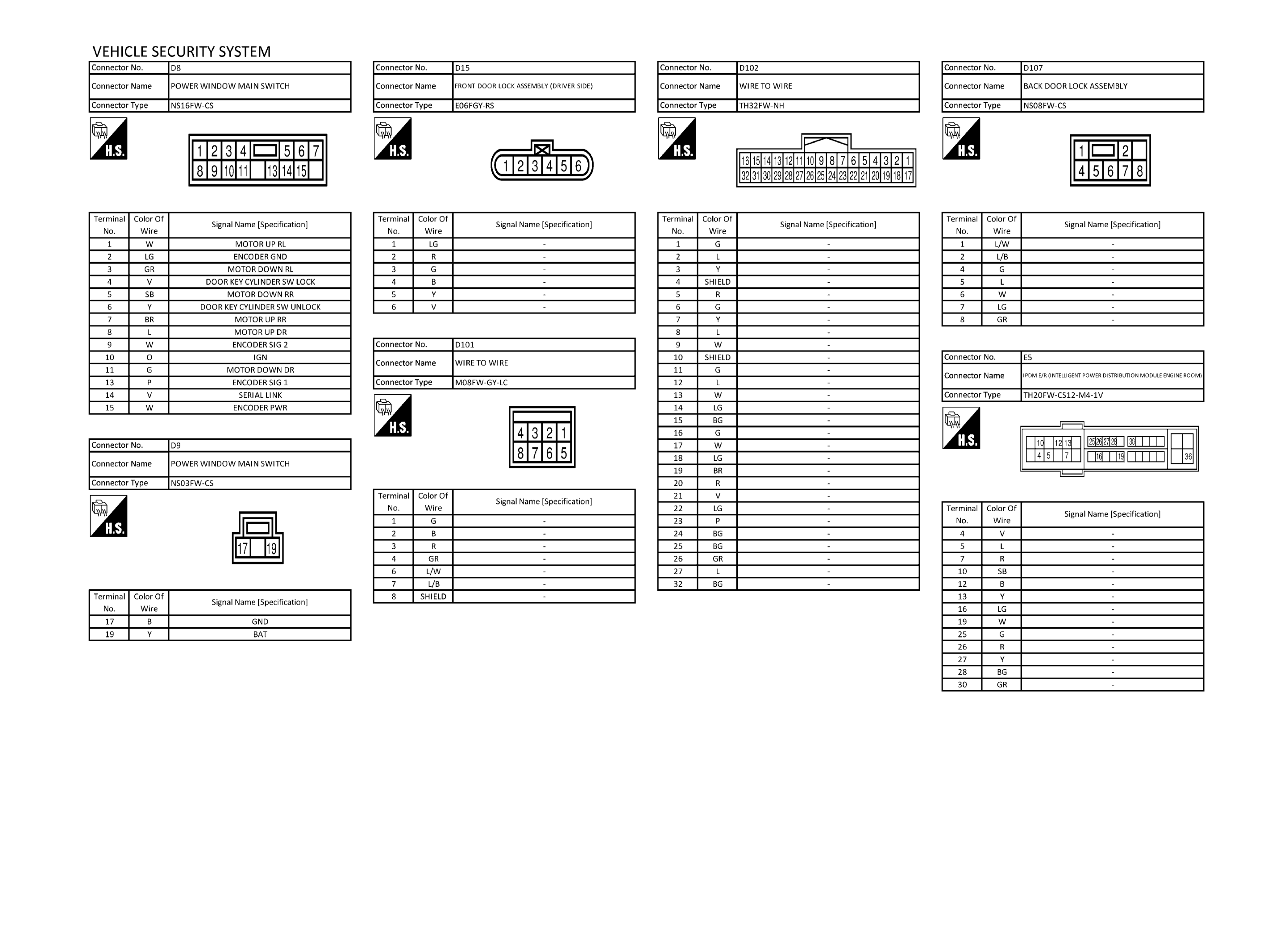

GNSJRKWF0469GB-469

Courtesy of NISSAN NORTH AMERICA, INC.

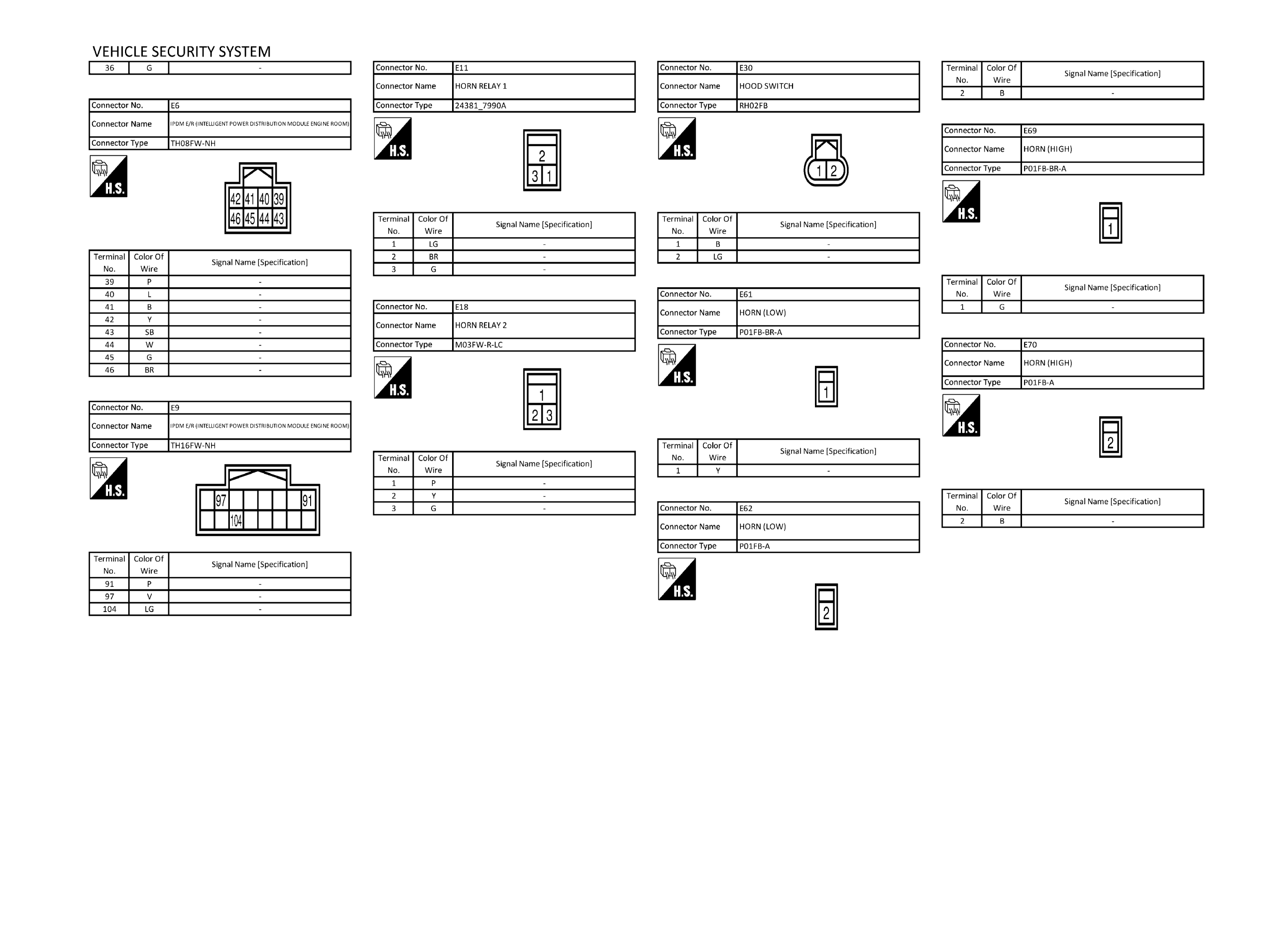

GNSJRKWF0470GB-470

Courtesy of NISSAN NORTH AMERICA, INC.

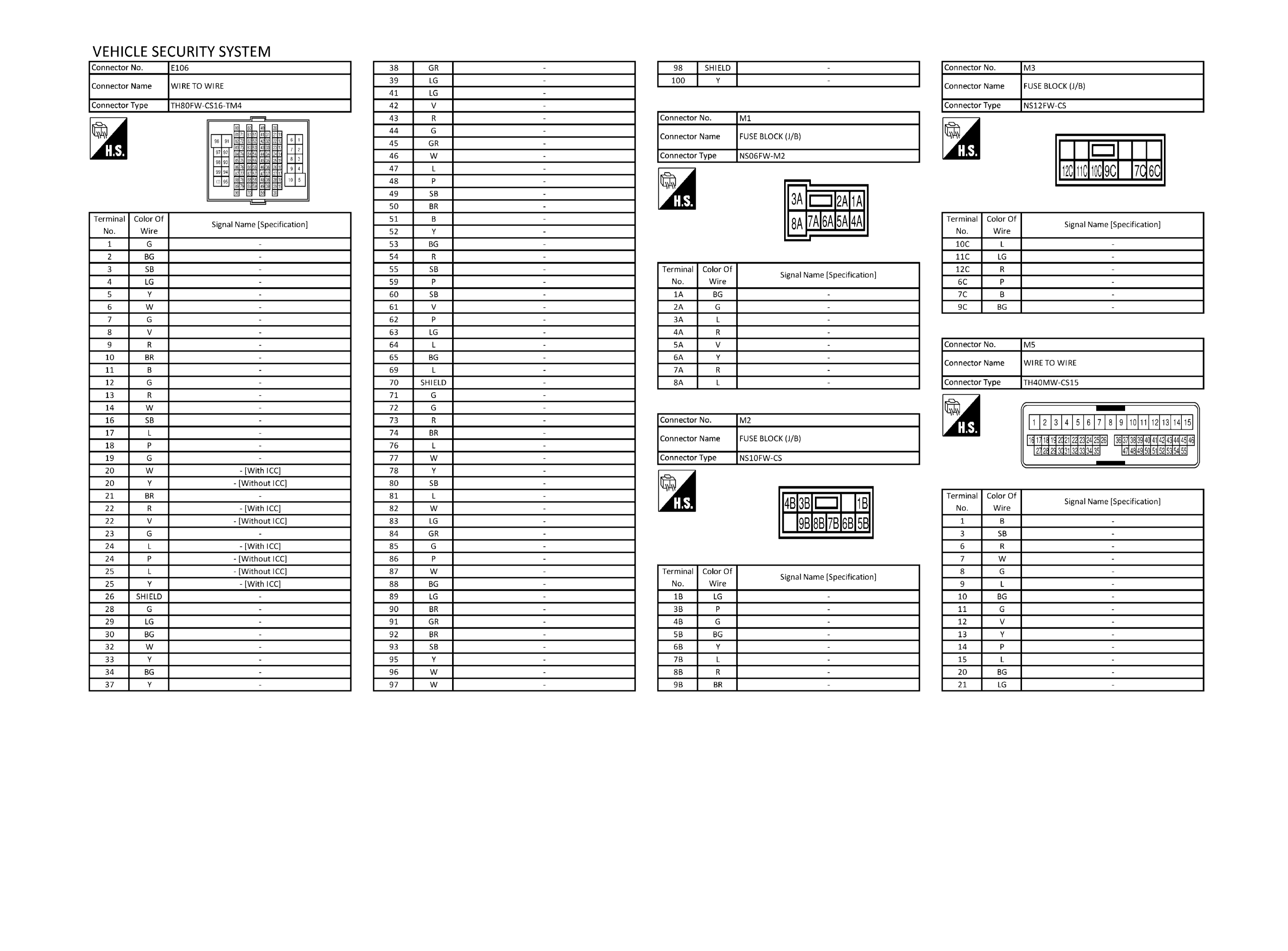

GNSJRKWF0471GB-471

Courtesy of NISSAN NORTH AMERICA, INC.

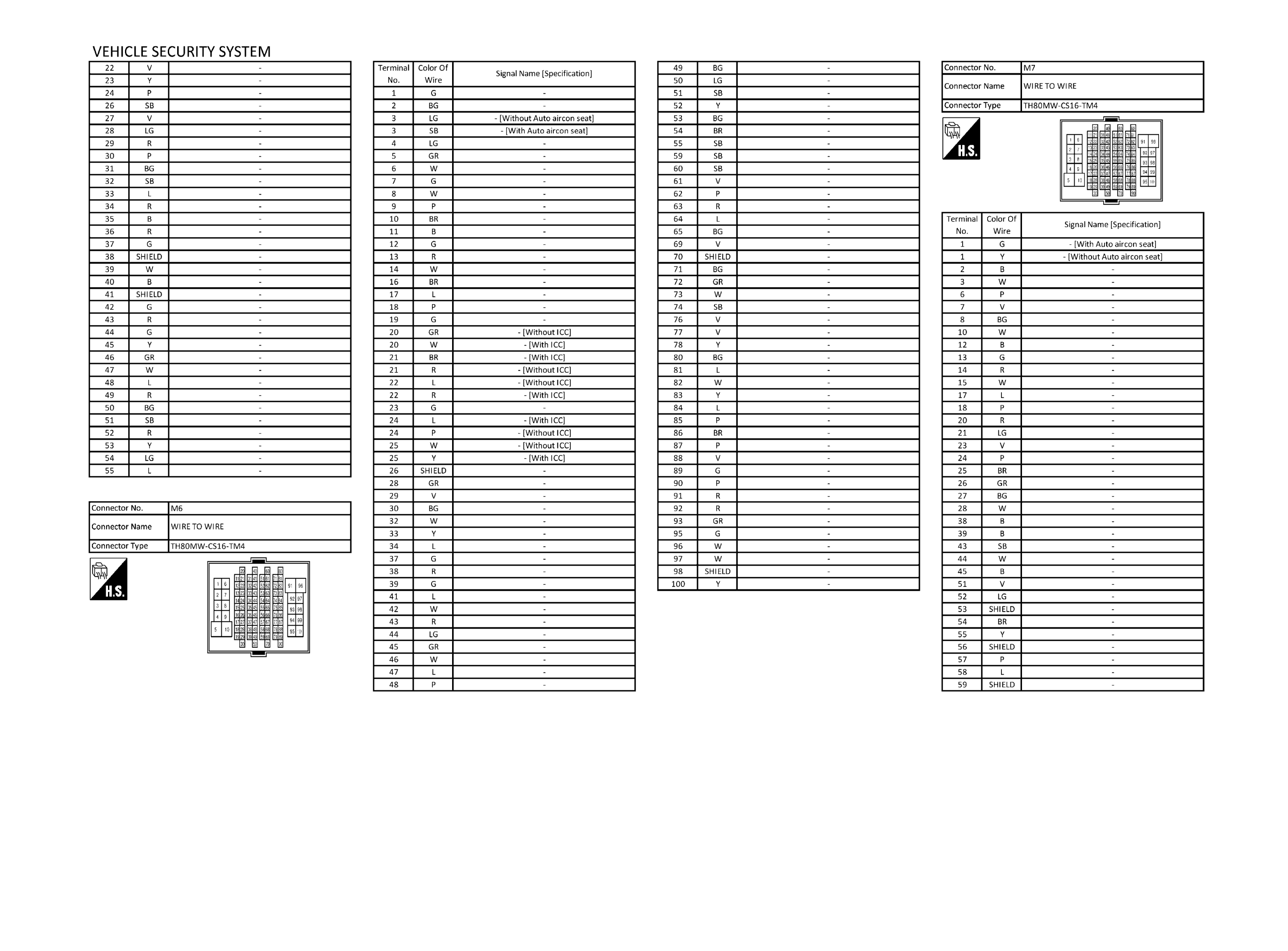

GNSJRKWF0472GB-472

Courtesy of NISSAN NORTH AMERICA, INC.

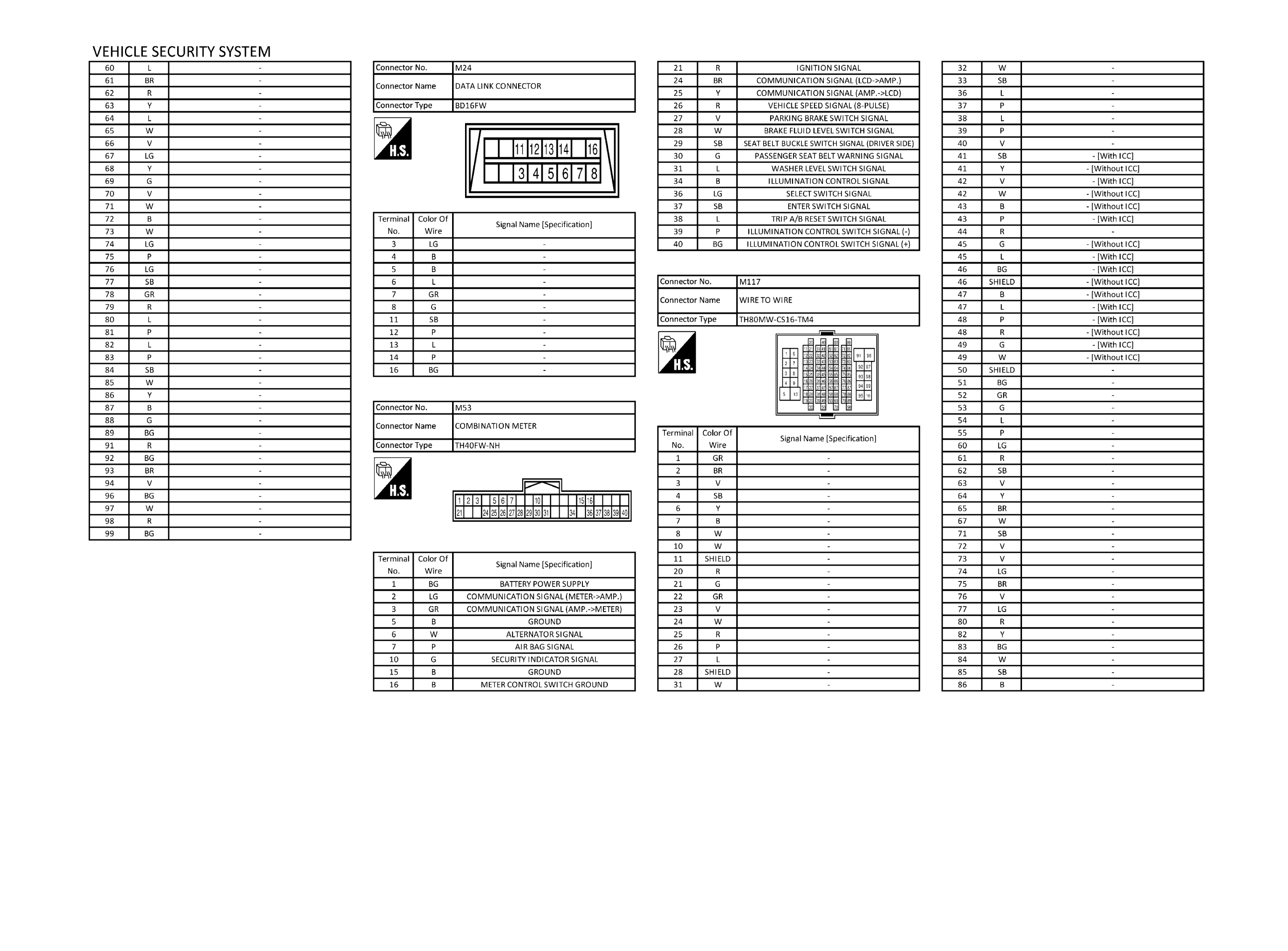

GNSJRKWF0473GB-473

Courtesy of NISSAN NORTH AMERICA, INC.

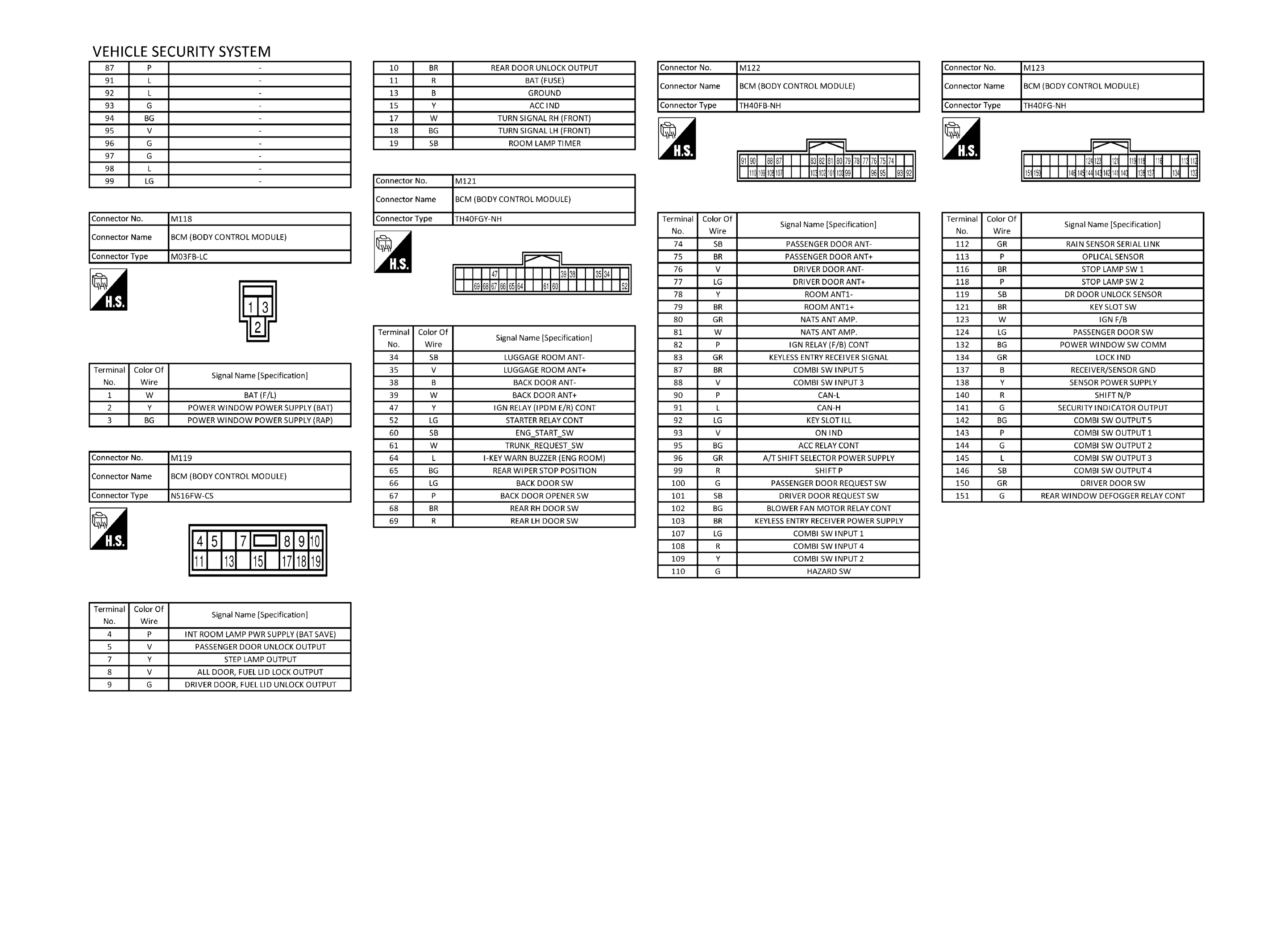

GNSJRKWF0474GB-474

Courtesy of NISSAN NORTH AMERICA, INC.

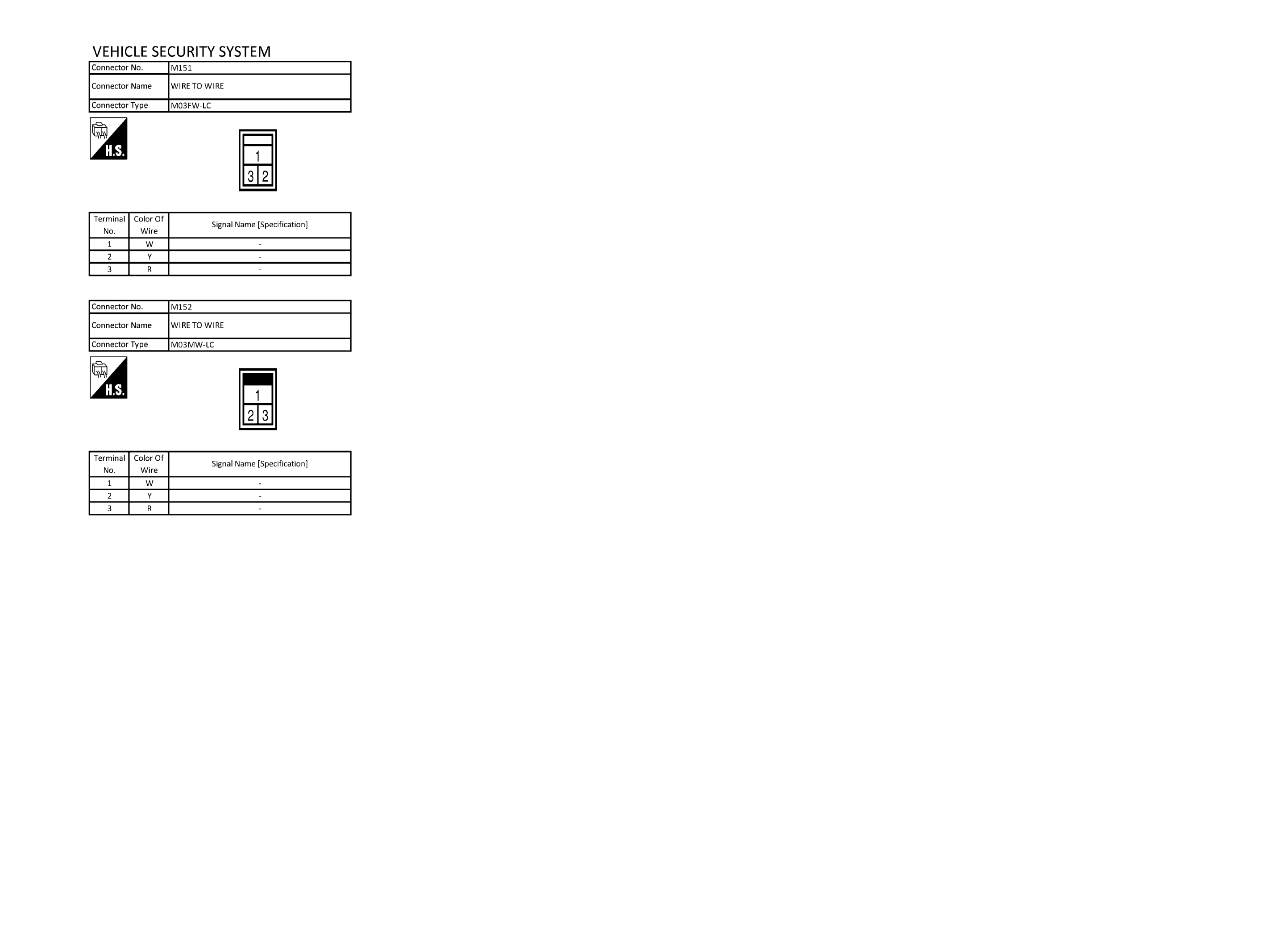

GNSJRKWF0475GB-475

Courtesy of NISSAN NORTH AMERICA, INC.
