Exploded View With Torque Specifications

VQ37VHR

G08458213Courtesy of NISSAN NORTH AMERICA, INC.

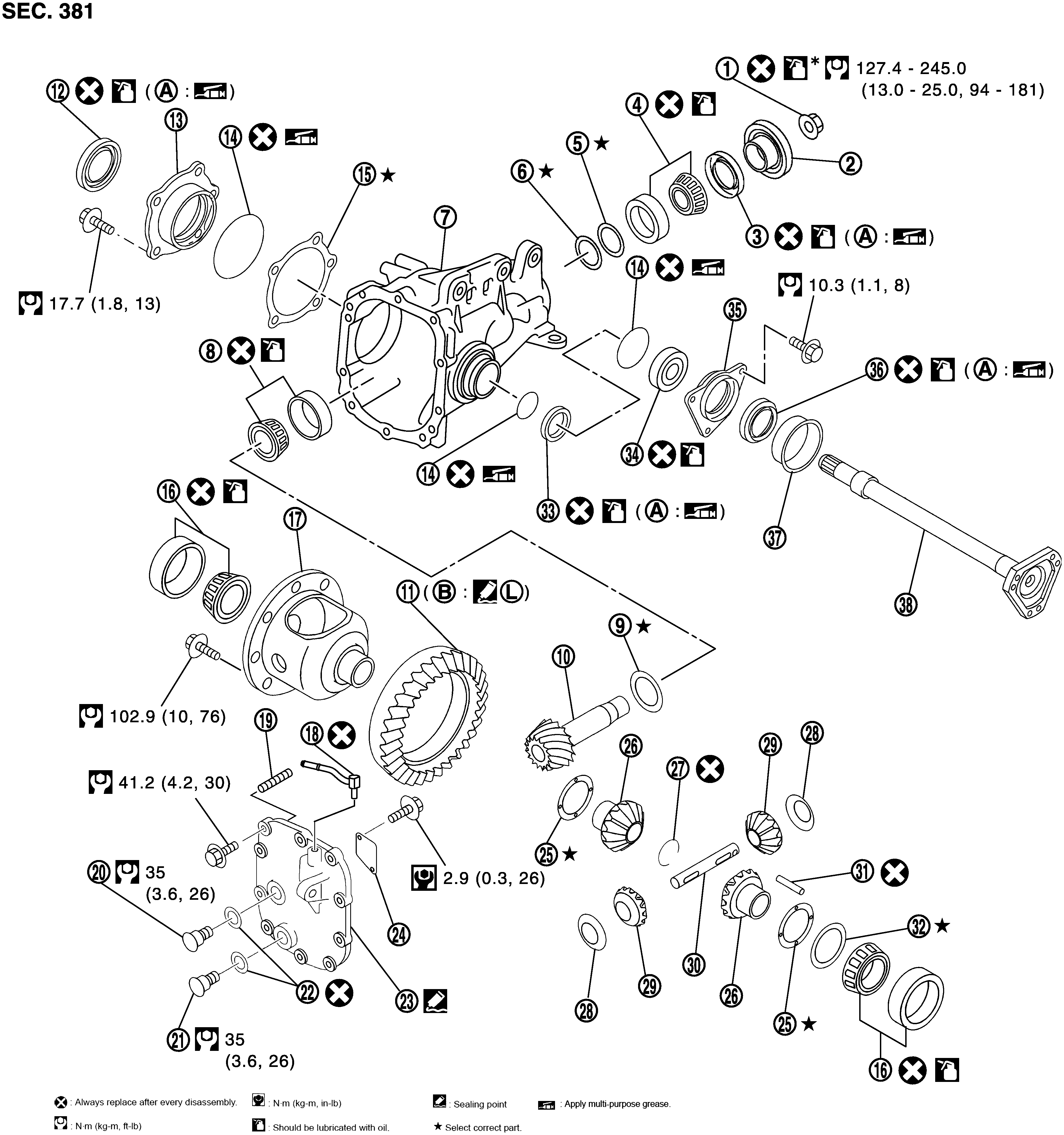

1. Drive pinion lock nut 2. Companion flange 3. Front oil seal
4. Pinion front bearing 5. Drive pinion bearing adjusting washer 6. Drive pinion adjusting washer
7. Gear carrier 8. Pinion rear bearing 9. Pinion height adjusting washer
10. Drive pinion 11. Drive gear 12. Side oil seal (right side)
13. Side retainer 14. O-ring 15. Side bearing adjusting shim
16. Side bearing 17. Differential case 18. Breather connector
19. Dowel pin 20. Filler plug 21. Drain plug
22. Gasket 23. Carrier cover 24. Gear oil defense
25. Side gear thrust washer 26. Side gear 27. Circular clip
28. Pinion mate thrust washer 29. Pinion mate gear 30. Pinion mate shaft
31. Lock pin 32. Side bearing adjusting washer 33. Side oil seal (left side)
34. Side shaft bearing 35. Extension tube retainer 36. Side shaft oil seal
37. Dust seal 38. Side shaft
A: Oil seal lip B: Screw hole
OIL : Apply gear oil.
OILASTERISK : Apply anti-corrosion oil.
GREASE : Apply multi-purpose grease.
SEAL : Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
SEALMARU-L-W : Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described above.

VK50VE

GNSJPDID0225GB-225Courtesy of NISSAN NORTH AMERICA, INC.
1. Drive pinion lock nut 2. Companion flange 3. Front oil seal
4. Pinion front bearing 5. Drive pinion bearing adjusting washer 6. Drive pinion adjusting washer
7. Gear carrier 8. Pinion rear bearing 9. Pinion height adjusting washer
10. Drive pinion 11. Drive gear 12. Side oil seal (right side)
13. Side retainer 14. O-ring 15. Side bearing adjusting shim
16. Side bearing 17. Differential case 18. Breather connector
19. Dowel pin 20. Filler plug 21. Drain plug
22. Gasket 23. Carrier cover 24. Gear oil defense
25. Side gear thrust washer 26. Side gear 27. Circular clip
28. Pinion mate thrust washer 29. Pinion mate gear 30. Pinion mate shaft
31. Lock pin 32. Side bearing adjusting washer 33. Side oil seal (left side)
34. Side shaft bearing 35. Extension tube retainer 36. Side shaft oil seal
37. Dust seal 38. Side shaft
A: Oil seal lip B: Screw hole
OIL : Apply gear oil.
OILASTERISK : Apply anti-corrosion oil.
GREASE : Apply multi-purpose grease.
SEAL : Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
SEALMARU-L-W : Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described above.
