Cooling Fan Control Module 2 Connector End View (E38)

Connector Types:  SJZ01FGY-SNZ2

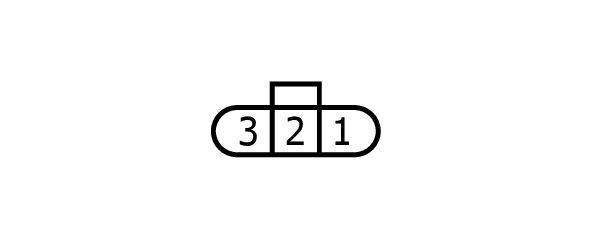

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

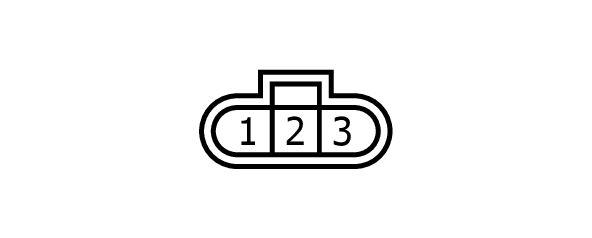

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	-
2	V	-
3	L	-
