Fuel Pump Control Module Connector End View (B31)

Connector Types:  TM10FB

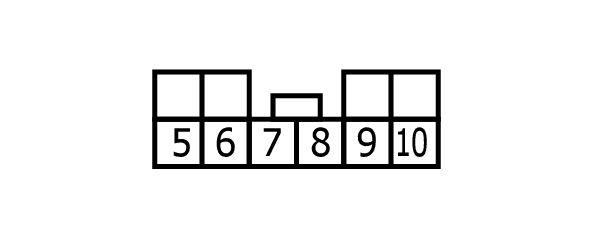

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

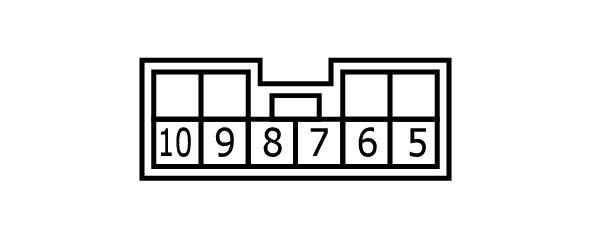

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
5	B	-
6	G	-
7	BR	-
8	Y	-
9	W	-
10	R	-
