VVEL Control Module Connector End View (E16)

Connector Types: RH18FB-AJZ8-LH

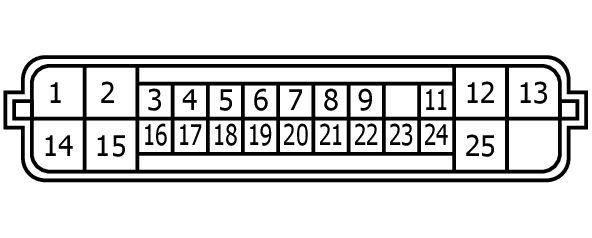

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

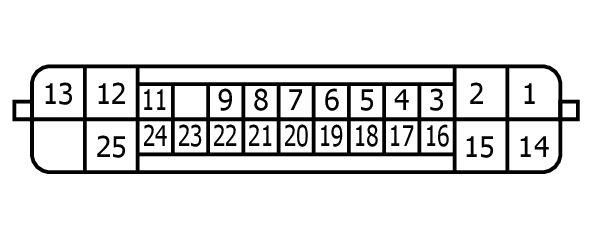

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	VVEL ACTUATOR MOTOR POWER SUPPLY (BANK 2)
2	BR	VVEL ACTUATOR MOTOR (HIGH LIFT) (BANK2)
3	G	VVEL CONTROL SHAFT POSITION SENSOR 1 (BANK 1) [With VQ engine]
3	R	VVEL CONTROL SHAFT POSITION SENSOR 1 (BANK 1) [With VK engine]
4	B	SENSOR GROUND [With VQ engine]
4	W	SENSOR GROUND [With VK engine]
5	R	VVEL CONTROL SHAFT POSITION SENSOR 1 (BANK 2)
6	B	SENSOR GROUND
7	SB	SENSOR POWER SUPPLY [With VQ engine]
7	W	SENSOR POWER SUPPLY [With VK engine]
8	BG	POWER SUPPLY FOR VVEL CONTROL MODULE [With VQ engine]
8	R	POWER SUPPLY FOR VVEL CONTROL MODULE [With VK engine]
9	LG	SENSOR POWER SUPPLY [With VQ engine]
9	W	SENSOR POWER SUPPLY [With VK engine]
11	G	ENG COMMUNICATION LINE
12	G	VVEL ACTUATOR MOTOR (HIGH LIFT) (BANK 1)
13	W	VVEL ACTUATOR MOTOR POWER SUPPLY (BANK 1)
14	B	VVEL CONTROL MODULE GROUND
15	G	VVEL ACTUATOR MOTOR (LOW LIFT) (BANK 2)
16	G	VVEL CONTROL SHAFT POSITON SENSOR 2 (BANK 1) [With VK engine]
16	R	VVEL CONTROL SHAFT POSITON SENSOR 2 (BANK 1) [With VQ engine]
17	L	SENSOR GROUND
18	G	VVEL CONTROL SHAFT POSITON SENSOR 2 (BANK 2)
19	L	SENSOR GROUND [With VK engine]
19	W	SENSOR GROUND [With VQ engine]
20	BR	SENSOR POWER SUPPLY [With VQ engine]
20	Y	SENSOR POWER SUPPLY [With VK engine]
21	V	VVEL ACTUATOR MOTOR RELAY ABORT SIGNAL (ECM)
22	P	SENSOR POWER SUPPLY [With VQ engine]
22	Y	SENSOR POWER SUPPLY [With VK engine]
23	L	VVEL CONTROL MOTOR RELAY [With VK engine]
23	Y	VVEL CONTROL MOTOR RELAY [With VQ engine]
24	R	ENG COMMUNICATION LINE
25	BR	VVEL ACTUATOR MOTOR (LOW LIFT) (BANK 1)
