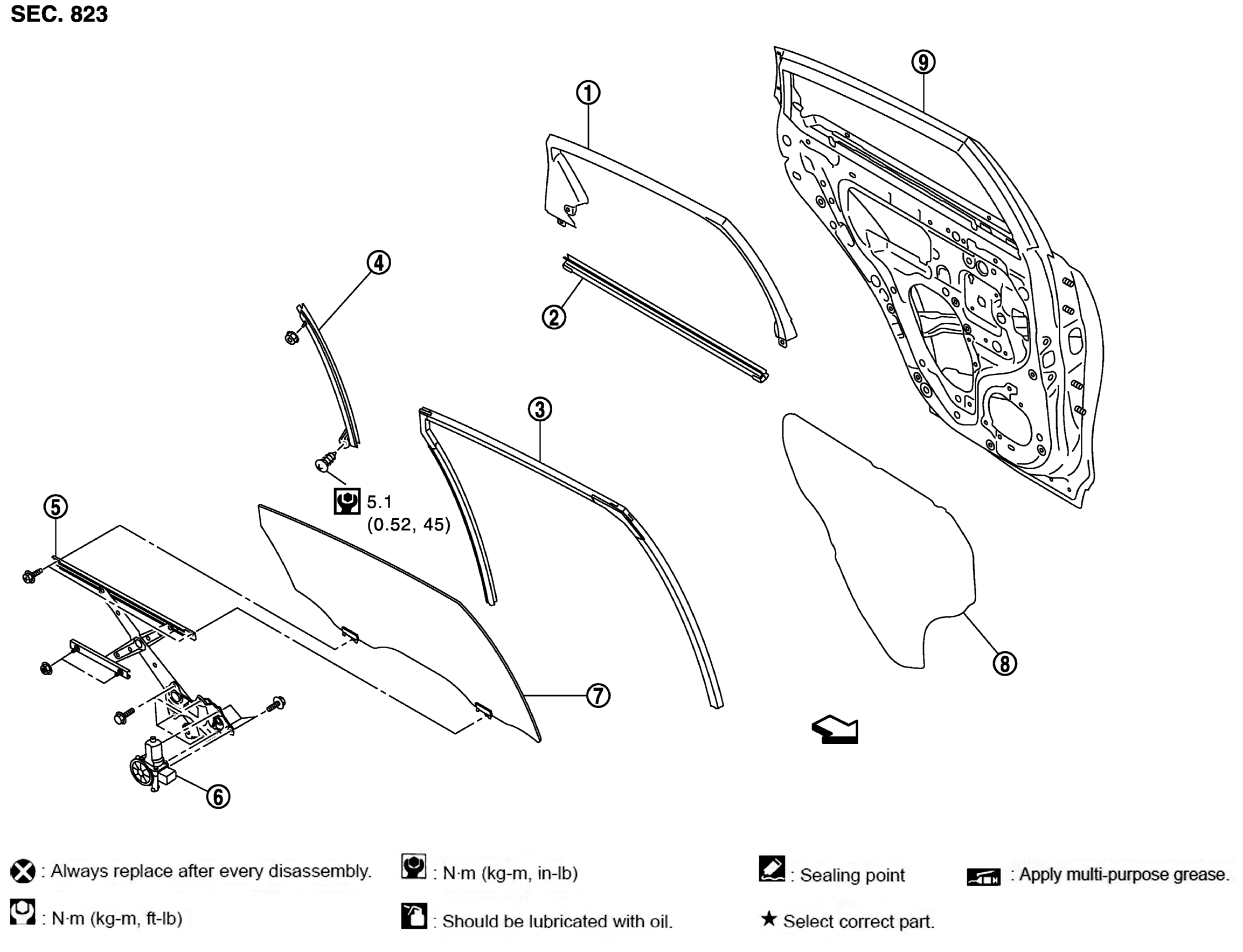

Exploded View With Torque Specifications

GNSJMKIA2660GB-660

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door sash inner cover	2.	Rear door inside seal	3.	Rear door glass run
4.	Rear door lower sash	5.	Regulator assembly	6.	Power window motor
7.	Rear door glass	8.	Sealing screen	9.	Rear door panel
	: Vehicle front
	: N•m (kg - m, in - lb)
