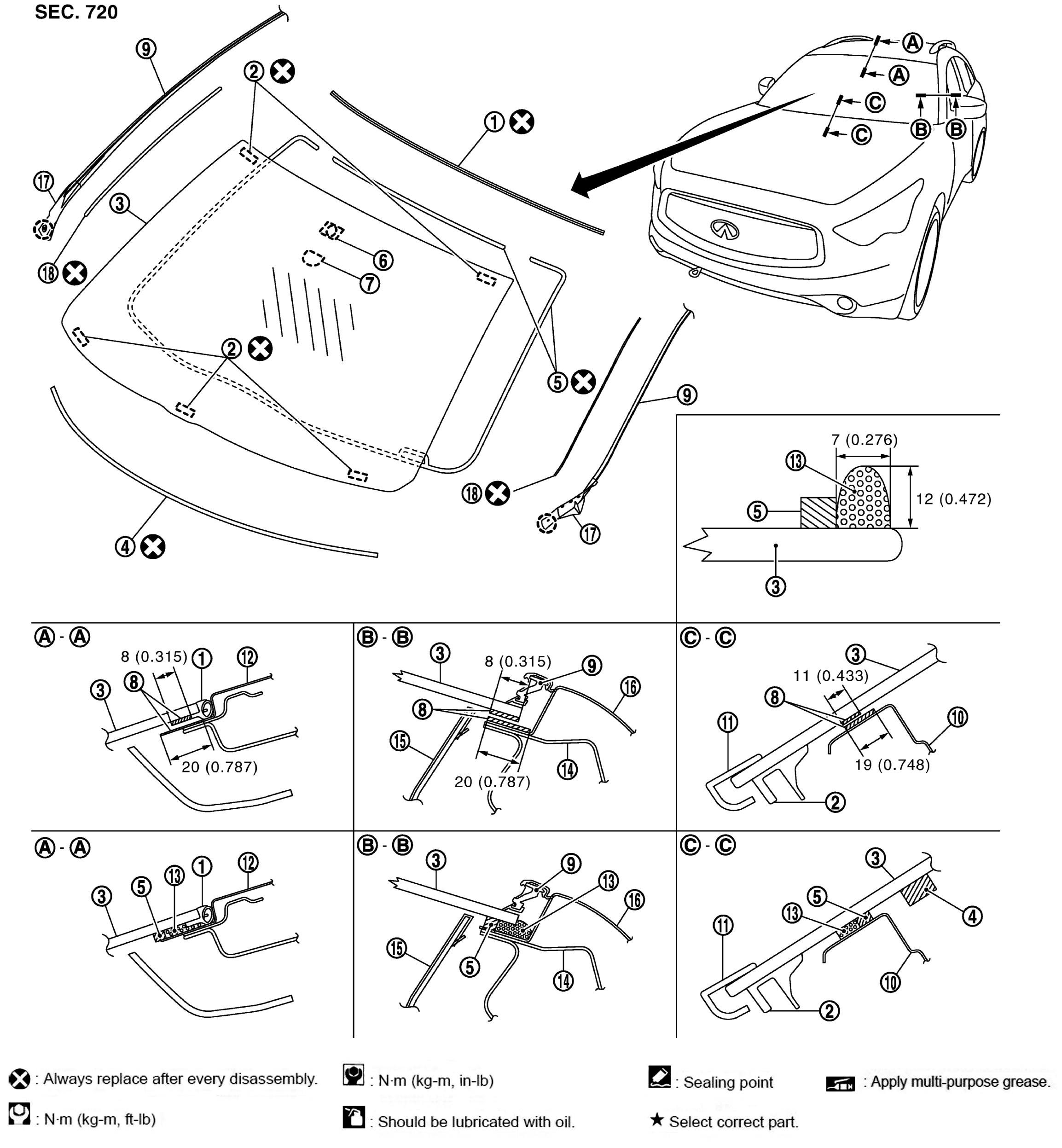

Exploded View With Torque Specifications
| 1. | Windshield molding | 2. | Clip | 3. | Windshield glass |
| 4. | Insulator | 5. | Dam sealant rubber (upper, lower) | 6. | Rain sensor bracket |
| 7. | Mirror base | 8. | Primer | 9. | Roof side molding |
| 10. | Dash upper cross member | 11. | Cowl top cover | 12. | Roof panel |
| 13. | Adhesive | 14. | Front pillar outer upper | 15. | Front pillar garnish |
| 16. | Body side outer | 17. | Front fender cover | 18. | Roof side molding fastener |
| : Clip | |||||
| Unit | : mm (in) | ||||
| : Always replace after every disassembly. | |||||
