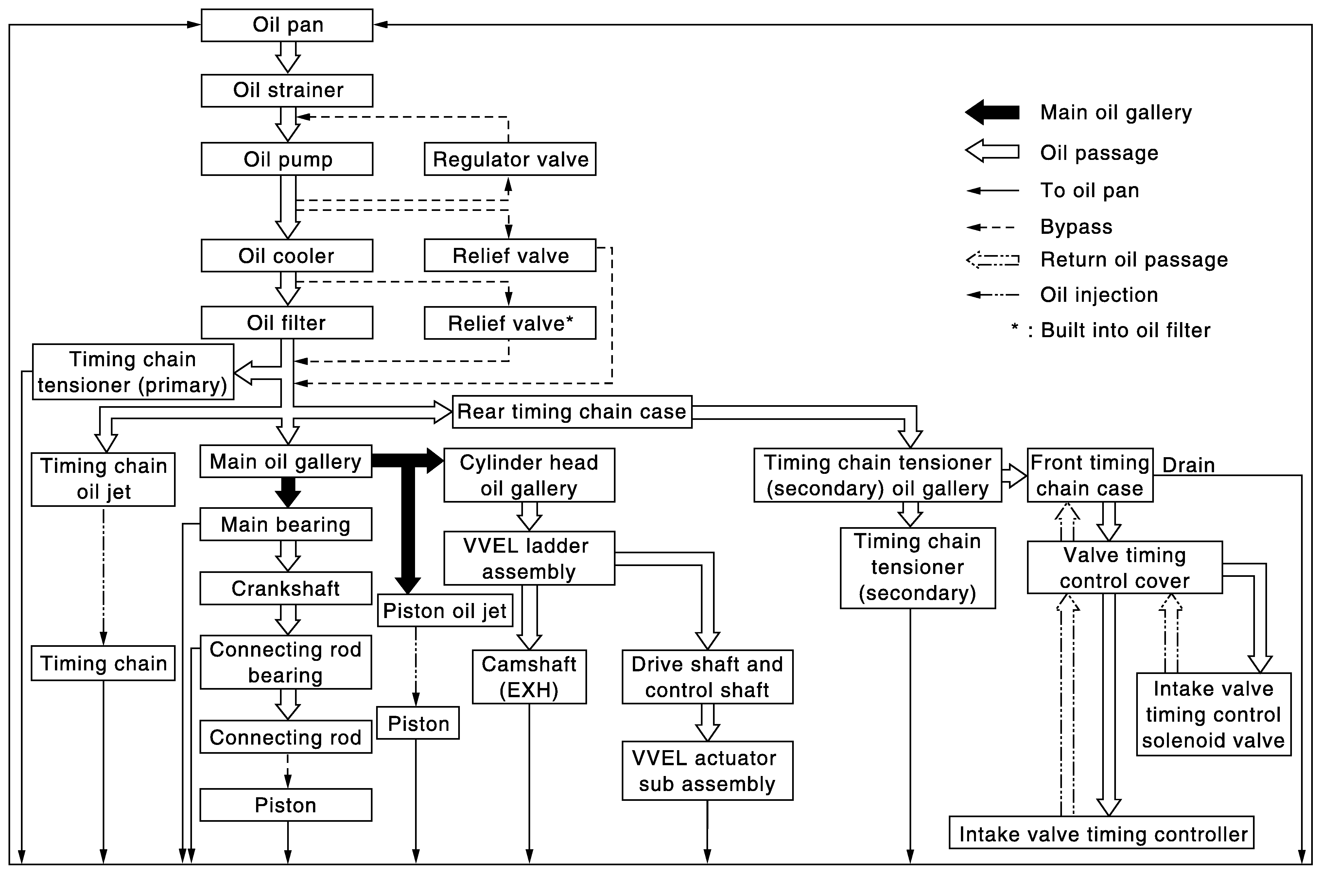

Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Without oil cooler for 2WD models
