Exploded View With Torque Specifications

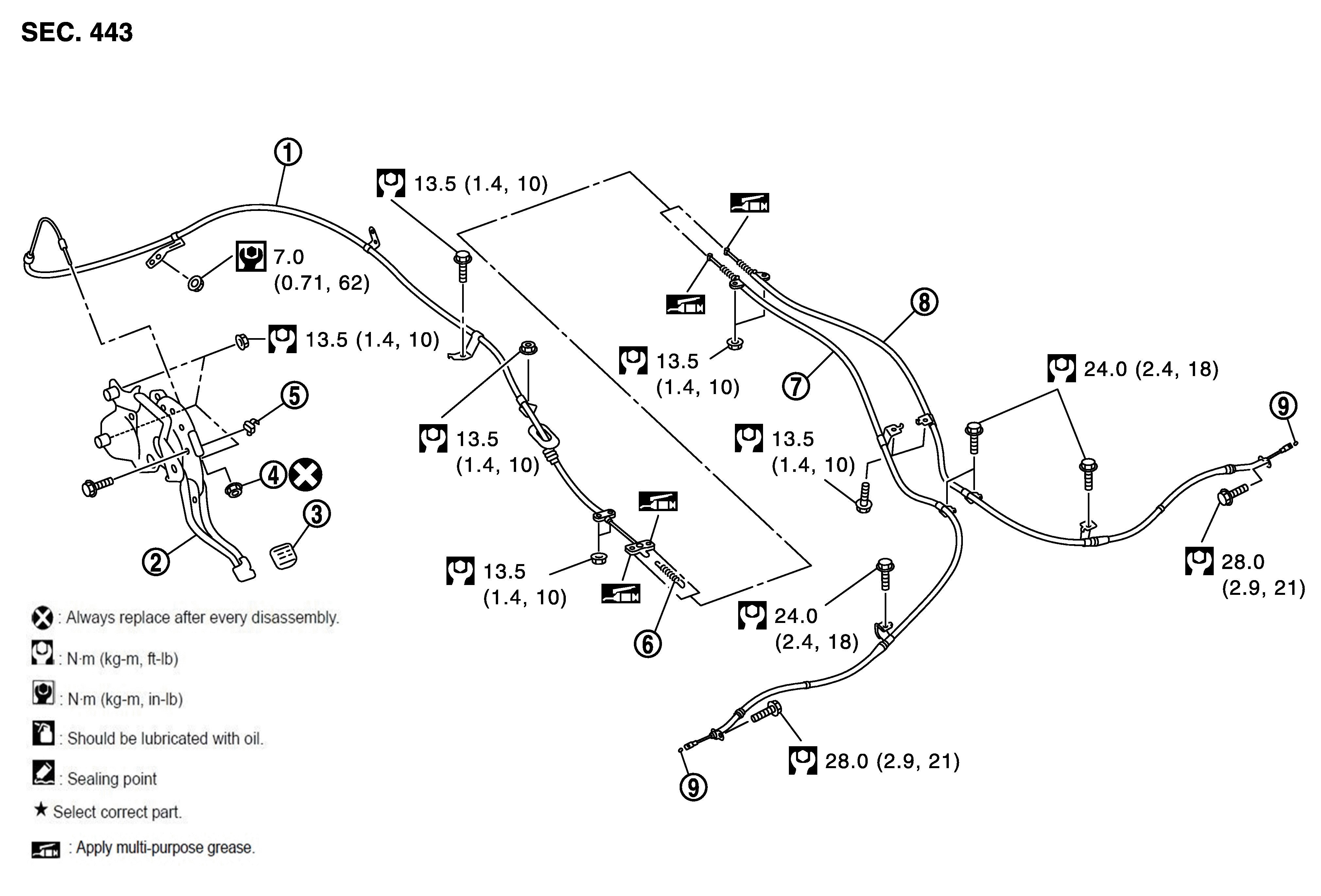

Fig 1: Parking Brake Control Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front cable	2.	Parking brake pedal assembly	3.	Pedal pad
4.	Adjusting nut	5.	Parking brake switch	6.	Spring
7.	Rear cable (left side)	8.	Rear cable (right side)	9.	Pin
: Apply multi-purpose grease.
	: Always replace after every disassembly
	: N•m (kg - m, ft - lb)
	: N•m (kg - m, in - lb)
